Component Inspection

STEERING SWITCH SIGNAL B CIRCUIT


Component Inspection

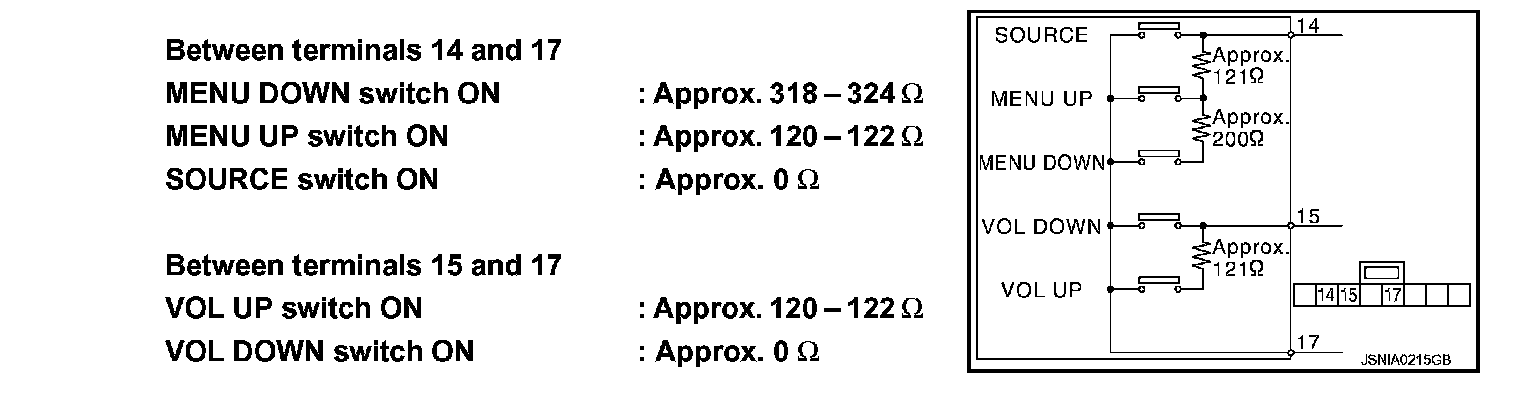

Measure the resistance between the steering switch connector terminals 14 to 17 and 15 to 17.






Between terminals 14 and 17
MENU DOWN switch ON : Approx. 318 - 324 O
MENU UP switch ON : Approx. 120 - 122 O
SOURCE switch ON : Approx. 0 O

Between terminals 15 and 17
VOL UP switch ON : Approx. 120 - 122 O
VOL DOWN switch ON : Approx. 0 O
