Component Inspection

STEERING SWITCH SIGNAL A CIRCUIT


Component Inspection

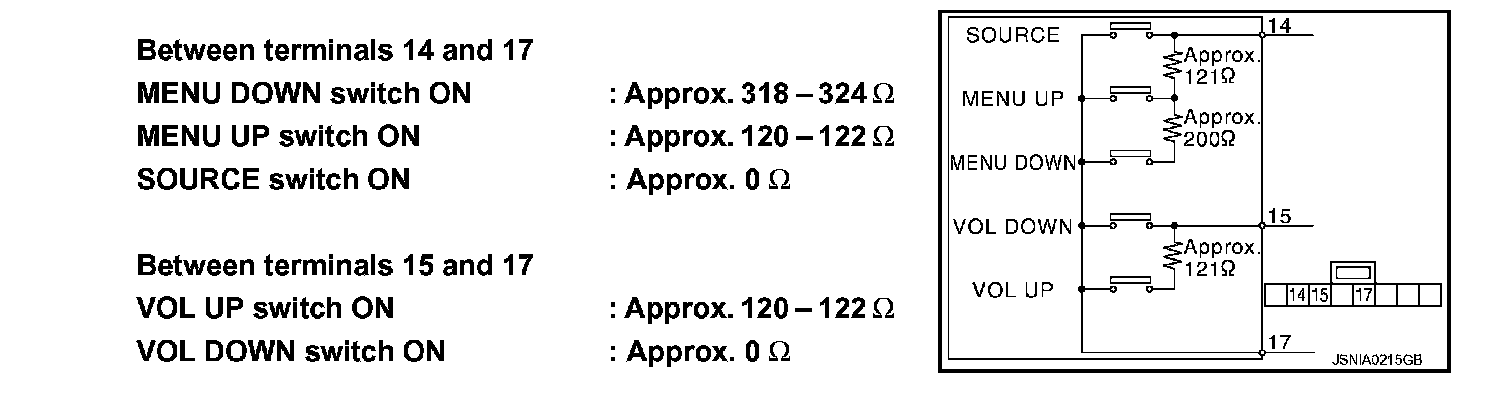

Measure the resistance between the steering switch connector terminals 14 to 17 and 15 to 17.







Between terminals 14 and 17
MENU DOWN switch ON : Approx. 318 - 324 Ohms
MENU UP switch ON : Approx. 120 - 122 Ohms
SOURCE switch ON : Approx. 0 Ohms

Between terminals 15 and 17
VOL UP switch ON : Approx. 120 - 122 Ohms
VOL DOWN switch ON : Approx. 0 Ohms
