AUX Image Signal Circuit

AUX IMAGE SIGNAL CIRCUIT


Description

- Transmits the image signal of AUX device from auxiliary input jacks to AV control unit.
- AV control unit transmits the image signal that is inputted to the display unit.




AUX IMAGE SIGNAL CIRCUIT


Diagnosis Procedure

1.CHECK CONTINUITY AUX IMAGE SIGNAL CIRCUIT (AUX INPUT JACKS AND AV CONTROL UNIT)
1. Turn ignition switch OFF.
2. Disconnect auxiliary input jacks connector and AV control unit connector.

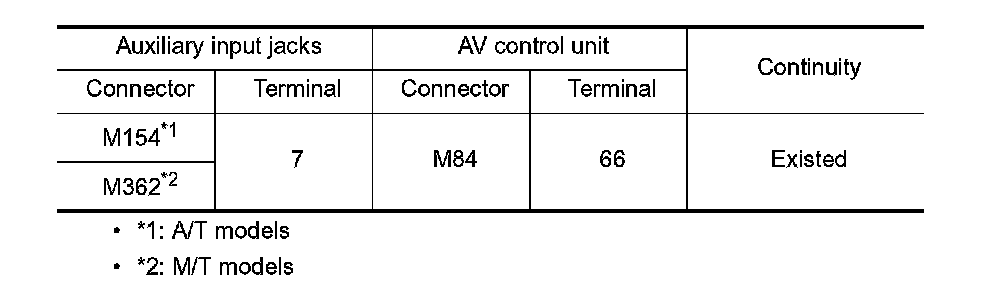

3. Check continuity between auxiliary input jacks harness connector and AV control unit harness connector.

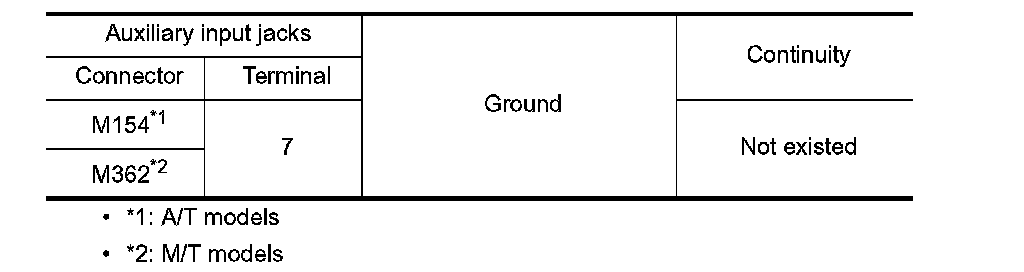

4. Check continuity between auxiliary input jacks harness connector and ground.





Is the inspection result normal?
YES - GO TO 2.
NO - Repair harness or connector.
2.CHECK AUX IMAGE SIGNAL (AUX INPUT JACKS TO AV CONTROL UNIT)
1. Connect display unit connector and AV control unit connector.
2. Turn ignition switch ON.

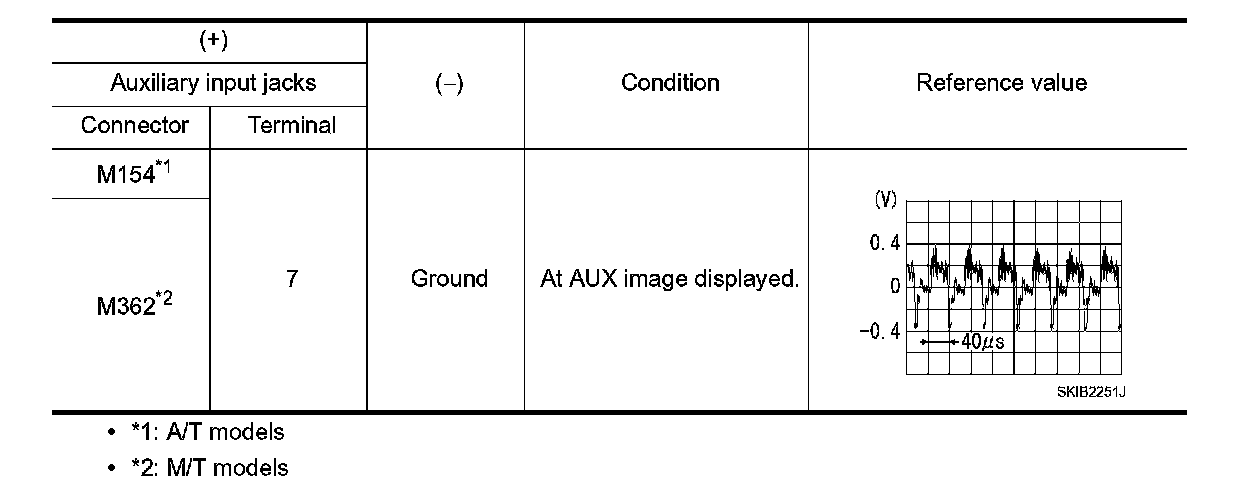

3. Check signal between auxiliary input jacks harness connector and ground.





Is the inspection result normal?
YES - INSPECTION END
NO - Check that there is no malfunction in the external device.
