Removal and Installation





TEL ADAPTER UNIT


Removal and Installation


REMOVAL
1. Remove trunk floor spacer RH. Refer to Exploded View.

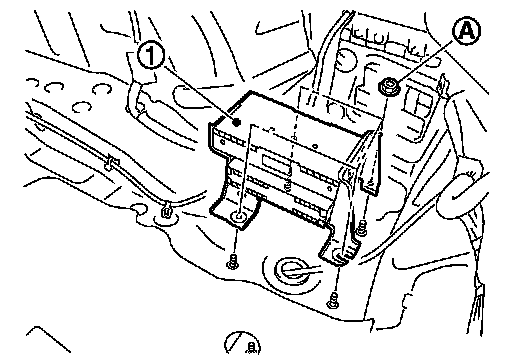

2. Remove nuts (A) from the trunk room RH, and remove TEL adapter unit and satellite radio tuner (1) from trunk room side.

INSTALLATION
Install in the reverse order of removal.
