Diagnosis Procedure

INTEGRATED HOMELINK TRANSMITTER


Description

- Integrated homelink transmitter can store and transmit a maximum of 3 radio signals.
- Allows operation of garage doors, gates, home and office lighting, entry door locks and security system, etc.
- Integrated homelink transmitter power supply uses vehicle battery, which enables it to maintain every program in case battery is discharged or removed.




INTEGRATED HOMELINK TRANSMITTER


Diagnosis Procedure

1.CHECK POWER SUPPLY
1. Turn ignition switch OFF.
2. Disconnect auto anti-dazzling inside mirror (integrated homelink transmitter) connector.

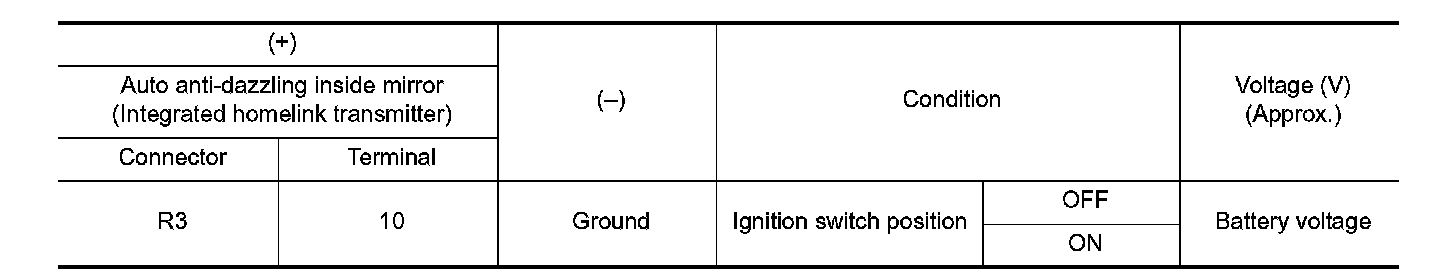

3. Check voltage between auto anti-dazzling inside mirror (integrated homelink transmitter) harness connector and ground.





Is the inspection result normal?
YES - GO TO 2.
NO-1 - Check 10A fuse [No. 6 located in the fuse block (J/B)].
NO-2 - Harness for open or short between fuse and auto anti-dazzling inside mirror (integrated homelink transmitter).
2.CHECK GROUND CIRCUIT

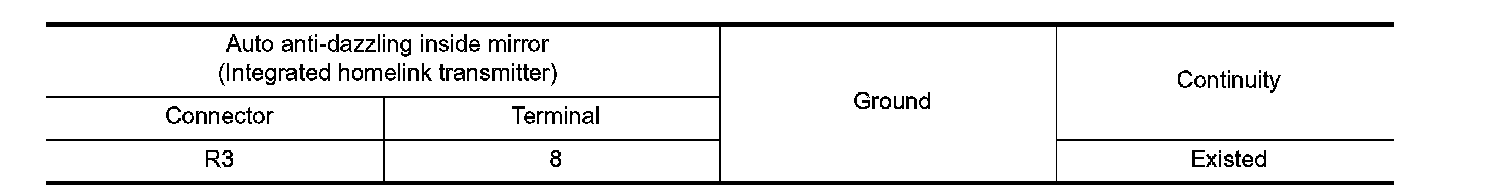

Check continuity between auto anti-dazzling inside mirror (integrated homelink transmitter) harness connector and ground.





Is the inspection result normal?
YES - GO TO 3.
NO - Repair or replace harness.
3.CHECK INTERMITTENT INCIDENT
Refer to Intermittent Incident.
- INSPECTION END
