BOSE Audio Without Navigation

MULTI AV SYSTEM SYMPTOMS

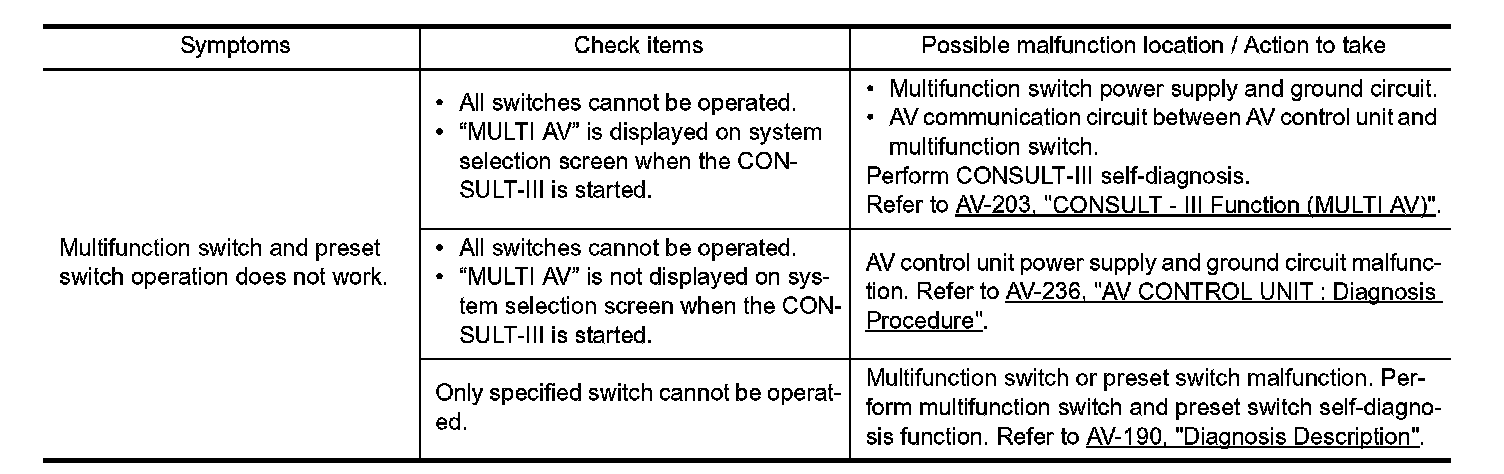

Symptom Table


OPERATION

Trouble Diagnosis Chart by Symptom






RELATED TO HANDS-FREE PHONE

Basic Inspection
- Check that the cellular phone is corresponding type (Bluetooth correspond) when the hands-free related malfunction vehicle is in service before performing a diagnosis.
- There is a case that malfunction occurs due to the version change of the phone type, etc. even though it is a corresponding type. Therefore, confirm it by changing the cellular phone to another corresponding type phone, and check that it operates normally. It is necessary to distinguish whether the cause is the vehicle or cellular phone.

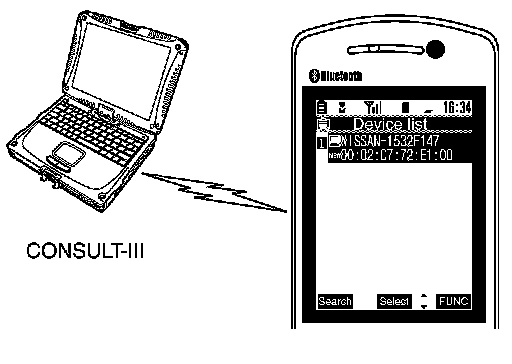

Simple check for Bluetooth communication
- If cellular phone and AV control unit cannot be connected with Bluetooth communication, following procedure allows the technician to judge which device has malfunction.
1. Turn on a cellular phone, not connecting Bluetooth communication.
2. Start CONSULT-III, then start Windows.
3. Set CONSULT-III near a cellular phone.





4. When operated Bluetooth registration by cellular phone, check if CONSULT-III* would be displayed on the device name.
(If other Bluetooth device is located near cellular phone, a name of the device would be displayed also.)

NOTE:
*:Displayed device name is "NISSAN- ".
- If no device name is displayed, cellular phone is malfunctioning.
Repair the cellular phone first, then perform diagnosis.
- If CONSULT-III is displayed on device name, cellular phone is normal. Perform diagnosis as per the following table.

On Board Self-diagnosis of Hands-free Phone System
Always perform the on board self-diagnosis at first after completing the basic inspection when the malfunction is detected on the hands-free phone system. Narrow down possible causes using the Diagnosis Chart if there is no malfunction in the on board self-diagnosis.

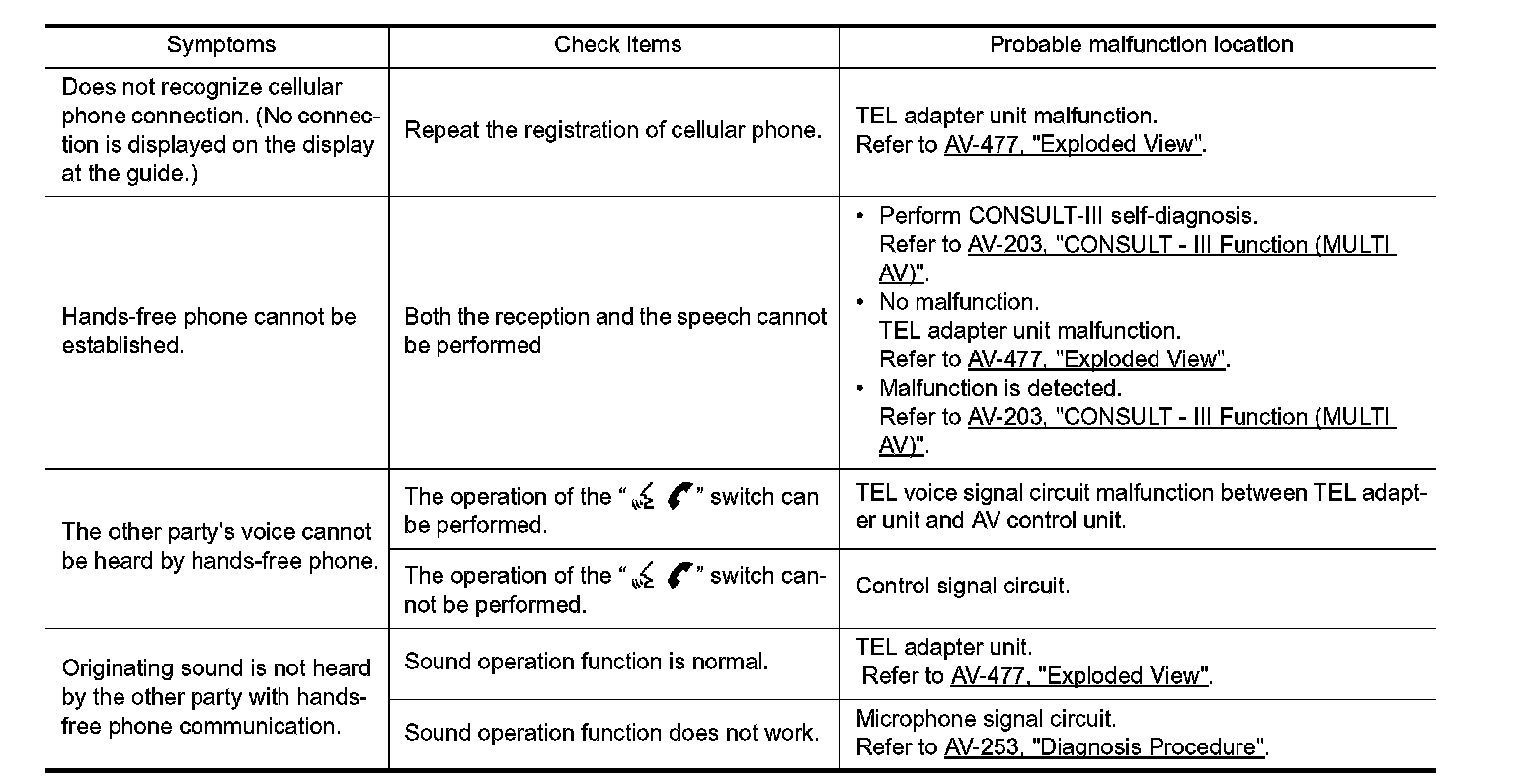

Trouble Diagnosis Chart by Symptom






RELATED TO CAMERA






RELATED TO RGB IMAGE

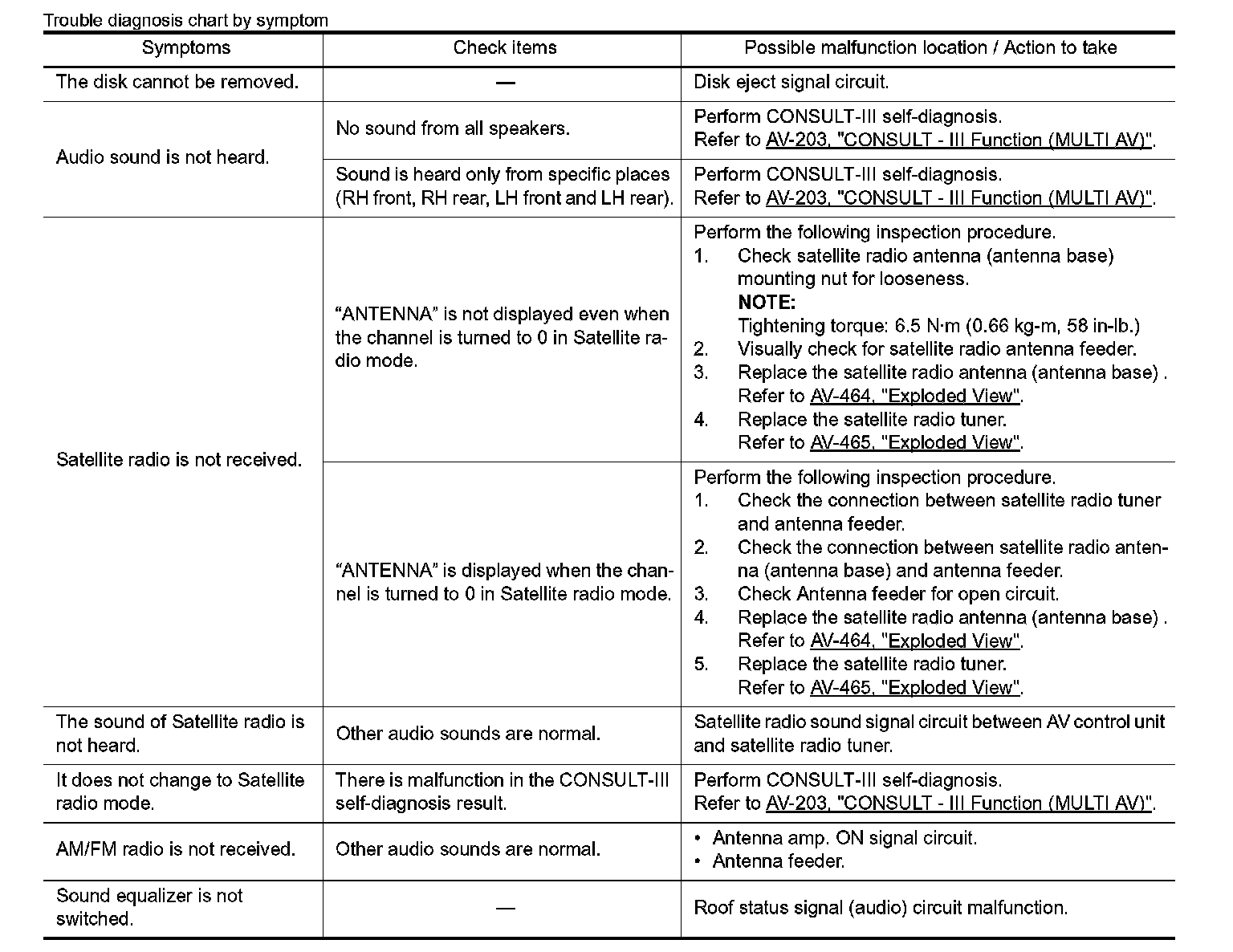

RELATED TO AUDIO






RELATED TO iPod

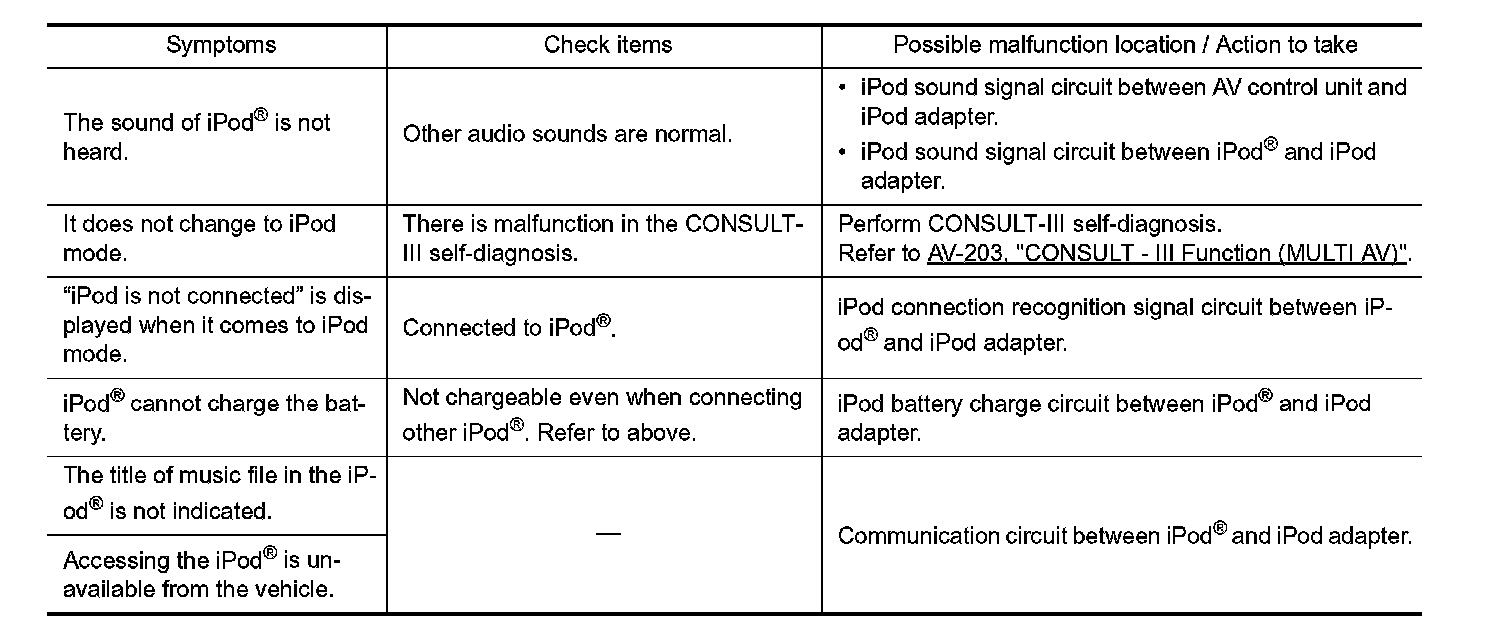

Trouble Diagnosis Chart by Symptom
Connect another iPod and check if the symptom is reproduced or not. If the symptom is reproduced, diagnose the vehicle. If no malfunction is detected, replace the iPod harness.
iPod� is a trademark of Apple inc., registered in the U.S. and other countries.

NOTE:
- It is unable to check that between iPod� and iPod harness.
- The iPod Touch and iPod Classic may not charge properly in some cases.
- As for iPod released concurrently with and after iPhone 3G (iPod Touch, iPod Nano 4th generation, iPod
Classic 2nd generation, etc.) , 12 V charging circuit is deleted from iPod�.

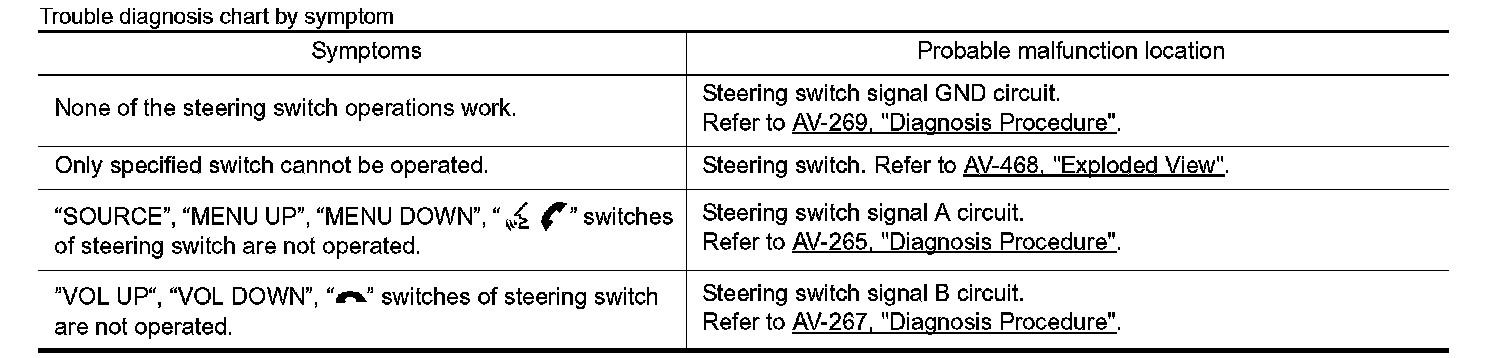

RELATED TO STEERING SWITCH

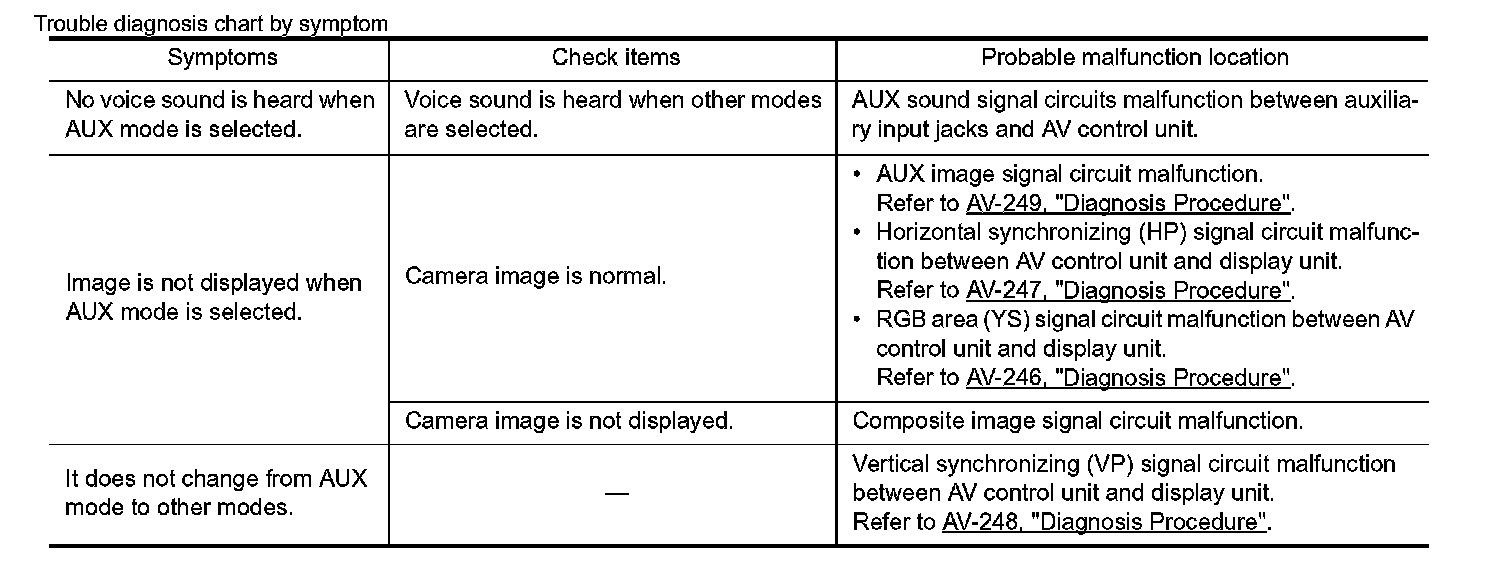

RELATED TO AUXILIARY INPUT

NOTE:
Check that there is no malfunction of AUX equipment main body before performing a diagnosis.
