Base Audio Without Navigation





CAMERA CONTROL UNIT


Reference Value

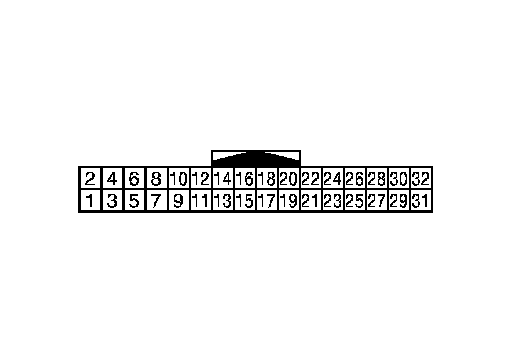

TERMINAL LAYOUT

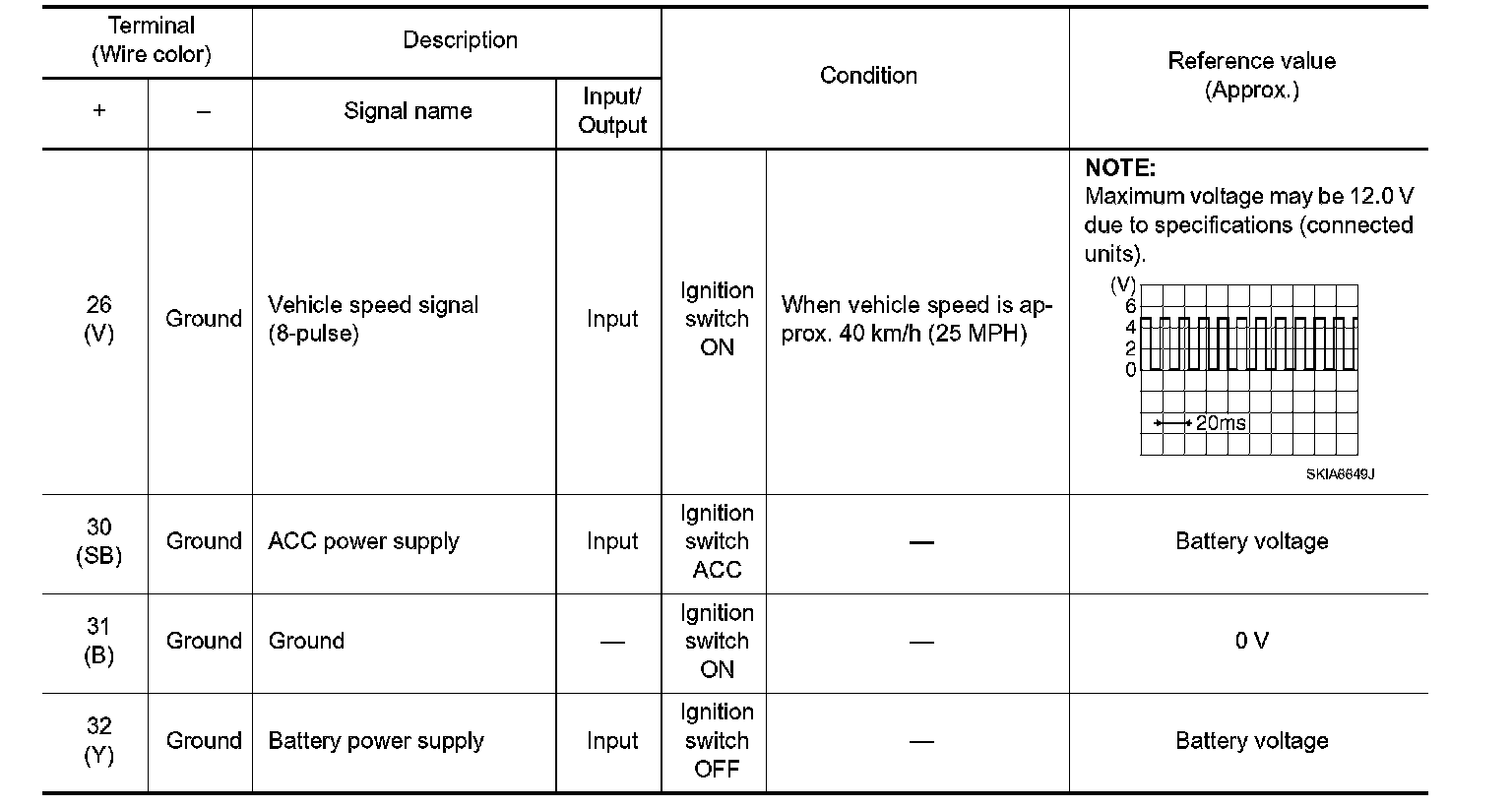

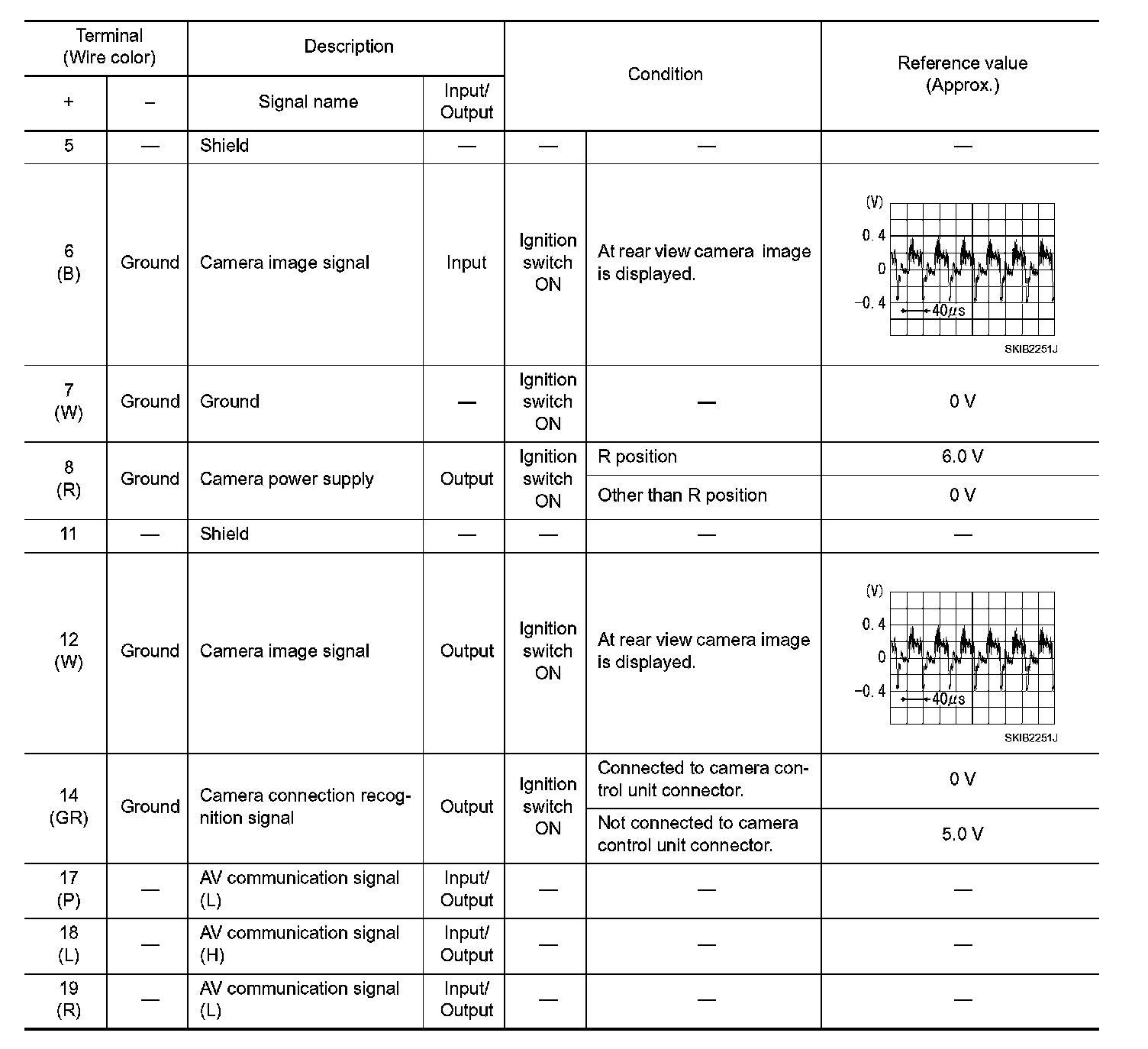

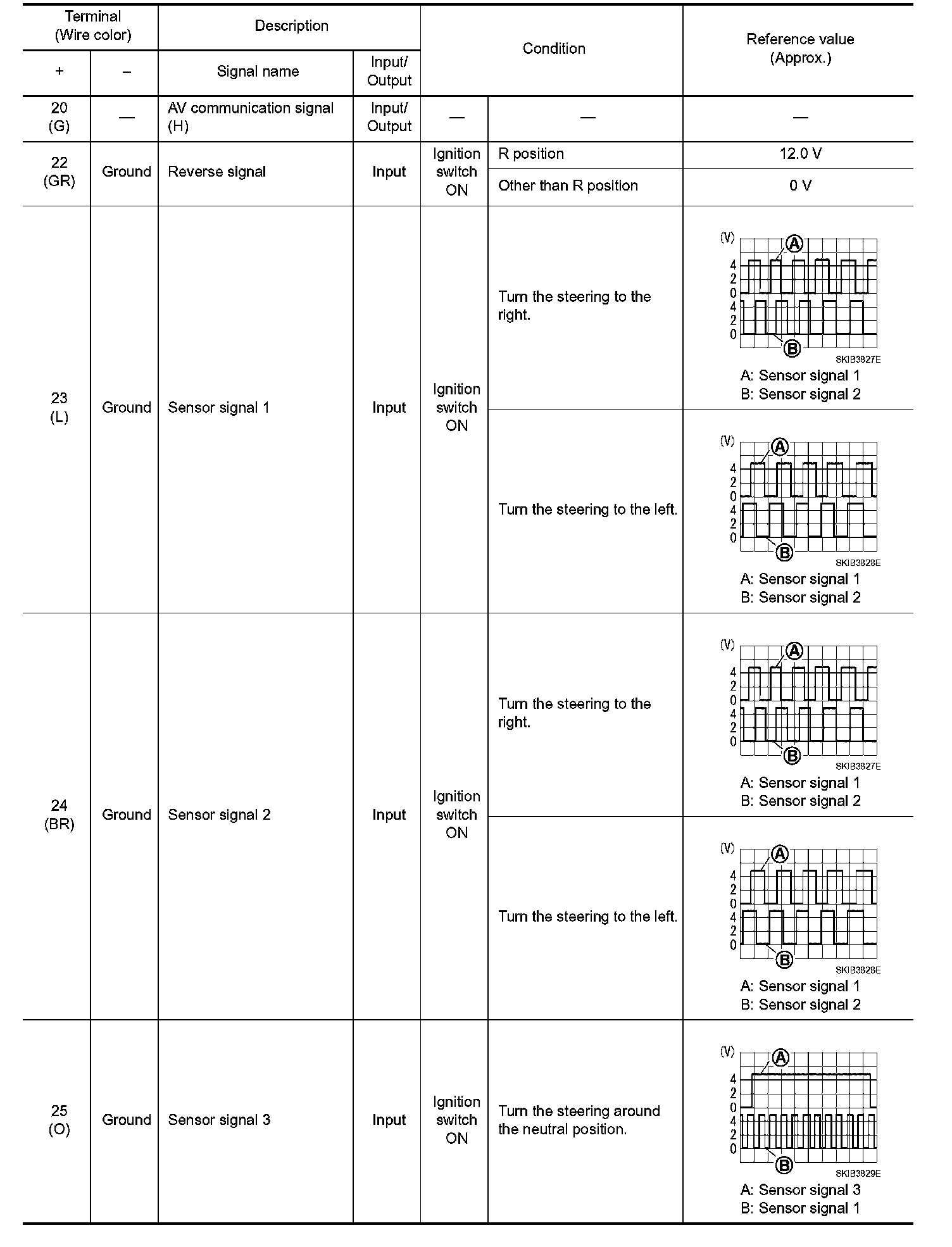

PHYSICAL VALUES
