CAMERA IMAGE SIGNAL CIRCUIT (CAMERA CONTROL UNIT TO AV CONTROL UNIT)


Description

- Camera control unit outputs camera power supply to rear view camera and inputs rear view camera image signal from rear view camera when the reverse signal is input.
- The camera control unit that inputs the camera image signal transmits the camera image signal to the AV control unit.




CAMERA IMAGE SIGNAL CIRCUIT (CAMERA CONTROL UNIT TO AV CONTROL UNIT)


Diagnosis Procedure

1.CHECK CONTINUITY CAMERA IMAGE SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect camera control unit connector and AV control unit connector.

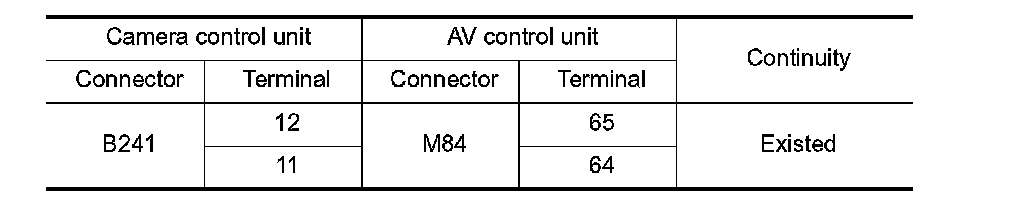

3. Check continuity between camera control unit harness connector and AV control unit harness connector.

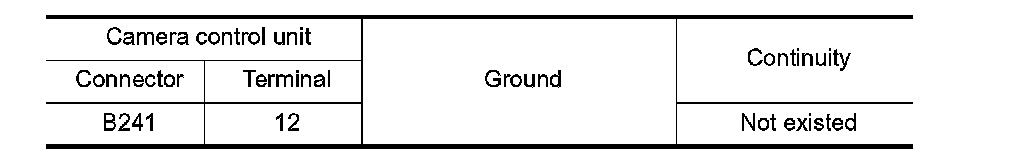

4. Check continuity between camera control unit harness connector and ground.





Is the inspection result normal?
YES - GO TO 2.
NO - Repair harness or connector.
2.CHECK CAMERA IMAGE SIGNAL
1. Connect camera control unit connector and AV control unit connector.
2. Turn ignition switch ON.

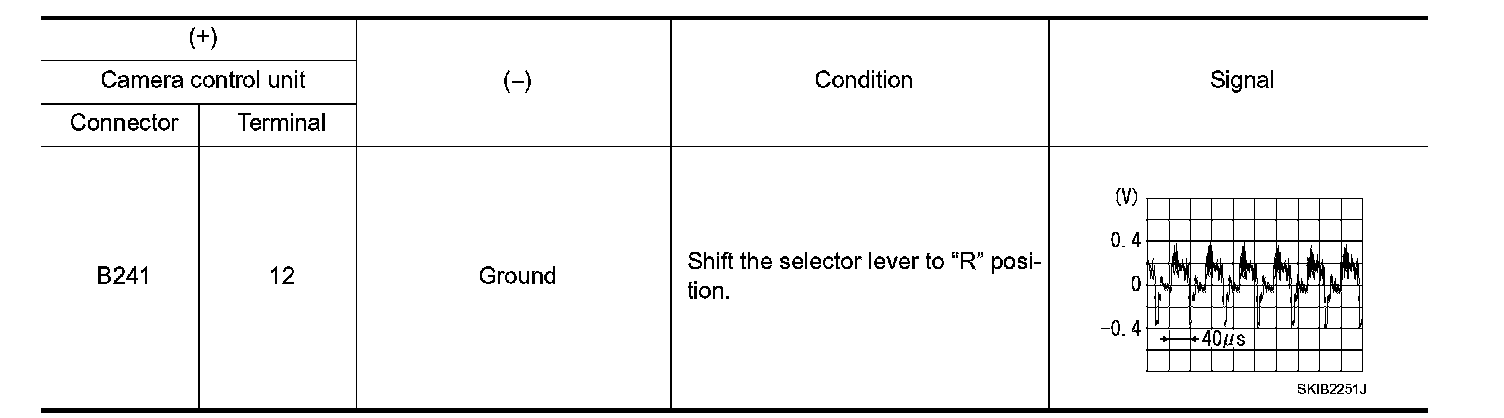

3. Check signal between camera control unit harness connector and ground using an oscilloscope.





Is the inspection result normal?
YES - Replace AV control unit.
NO - Replace camera control unit.
