Vertical Synchronizing (VP) Signal Circuit

VERTICAL SYNCHRONIZING (VP) SIGNAL CIRCUIT


Description

In composite image (AUX image), transmit the vertical synchronizing (VP) signal and horizontal synchronizing (HP) signal from display unit to AV control unit so as to synchronize the RGB images displayed with AV control unit such as the image quality adjusting menu, etc.




VERTICAL SYNCHRONIZING (VP) SIGNAL CIRCUIT


Diagnosis Procedure

1.CHECK CONTINUITY VERTICAL SYNCHRONIZING (VP) SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect display unit connector and AV control unit connector.

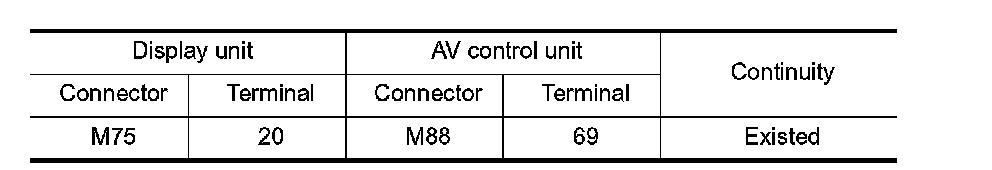

3. Check continuity between display unit harness connector and AV control unit harness connector.

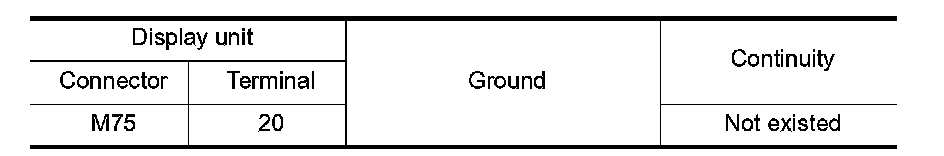

4. Check continuity between display unit harness connector and ground.





Is the inspection result normal?
YES - GO TO 2.
NO - Repair harness or connector.
2.CHECK VERTICAL SYNCHRONIZING (VP) SIGNAL
1. Connect display unit connector and AV control unit connector.
2. Turn ignition switch ON.

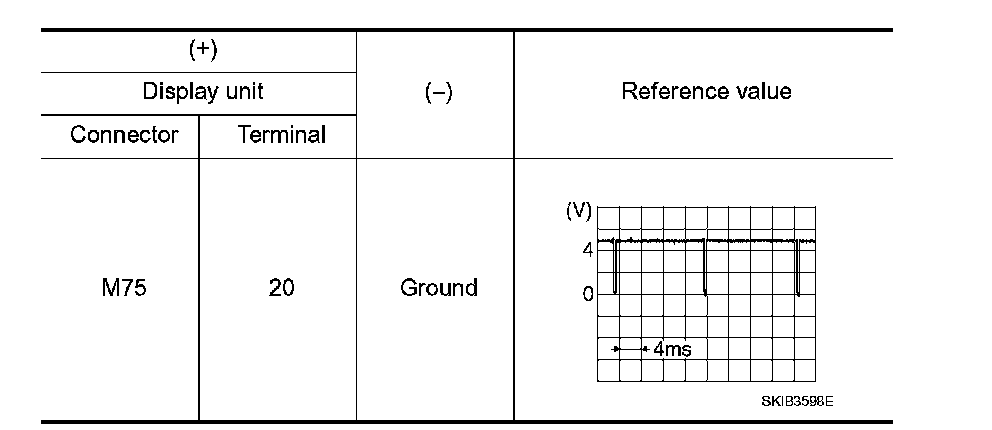

3. Check signal between display unit harness connector and ground.





Is the inspection result normal?
YES - Replace AV control unit.
NO - Replace display unit.
