Component Function Check

HOOD SWITCH


Component Function Check

1.CHECK FUNCTION
1. Select "HOOD SW" in the "Data Monitor" mode using CONSULT-III.

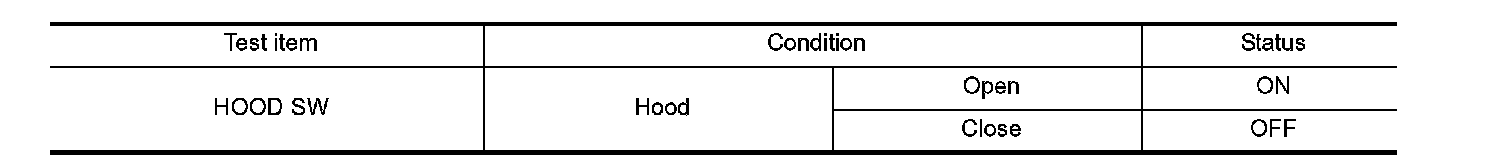

2. Check the hood switch signal under the following condition.





Is the indication normal?
YES - Hood switch is normal.
NO - Go to Diagnosis Procedure.
