Component Function Check

HEADLAMP FUNCTION


Component Function Check

1.CHECK FUNCTION

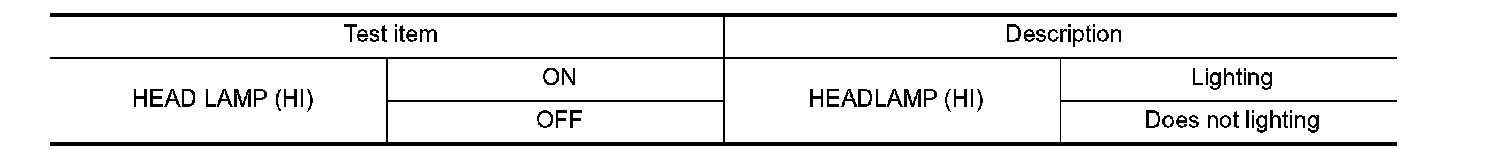

1. Perform "HEAD LAMP(HI)" in the "ACTIVE TEST" mode using CONSULT-III.
2. Check headlamp operation.





Is the inspection result normal?
YES - INSPECTION END
NO - Refer to Diagnosis Procedure.
