Diagnosis Procedure

TRUNK LID OPENER SWITCH


Description

Transmits trunk lid open signal to BCM.




TRUNK LID OPENER SWITCH


Diagnosis Procedure

1.CHECK TRUNK LID OPENER SWITCH INPUT SIGNAL
1. Turn ignition switch OFF.
2. Disconnect trunk lid opener switch connector.

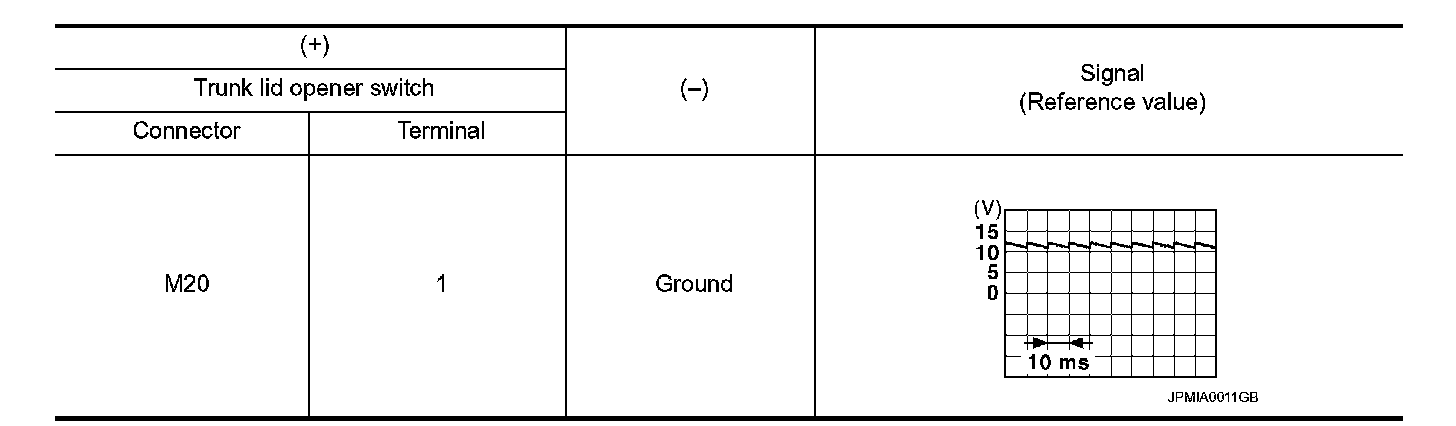

3. Check signal between trunk lid opener switch harness connector and ground using oscilloscope.





Is the inspection result normal?
YES - GO TO 3.
NO - GO TO 2.
2.CHECK TRUNK LID OPENER SWITCH CIRCUIT
1. Disconnect BCM connector.

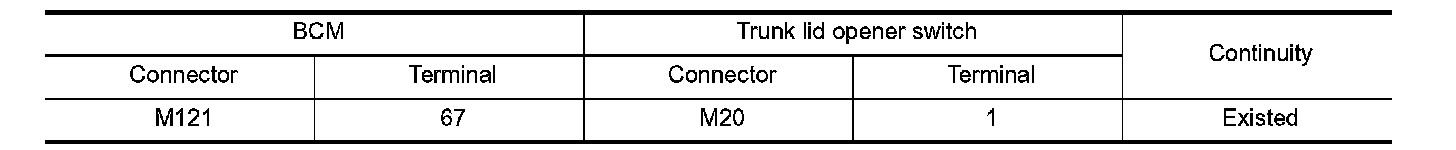

2. Check continuity between BCM harness connector and trunk lid opener switch harness connector.

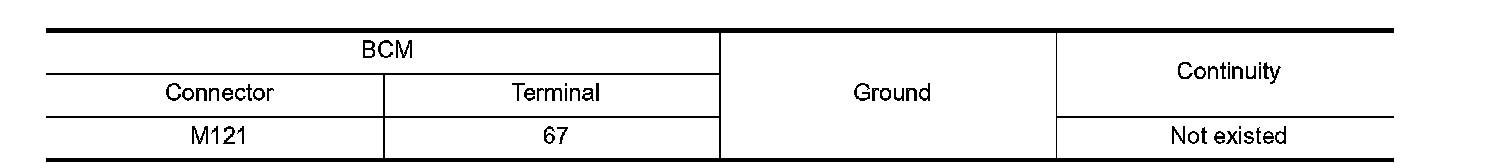

3. Check continuity between BCM harness connector and ground.





Is the inspection result normal?
YES - Replace BCM. Refer to Removal and Installation.
NO - Repair harness or connector.
3.CHECK TRUNK LID OPENER SWITCH GROUND CIRCUIT

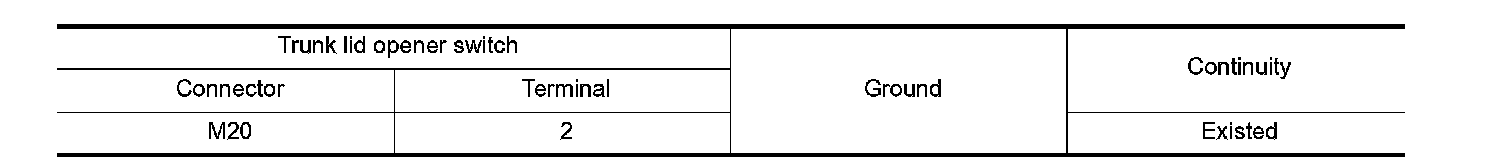

Check continuity between trunk lid opener switch harness connector and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace harness.
4.CHECK TRUNK LID OPENER SWITCH
Refer to Component Inspection.
Is the inspection result normal?
YES - GO TO 5.
NO - Replace trunk lid opener switch. Refer to Removal and Installation.
5.CHECK INTERMITTENT INCIDENT
Refer to Intermittent Incident.
- INSPECTION END
