Removal and Installation





INSIDE KEY ANTENNA


TRUNK ROOM : Removal and Installation


REMOVAL
1. Remove trunk floor carpet and trunk front finisher. Refer to Removal and Installation.

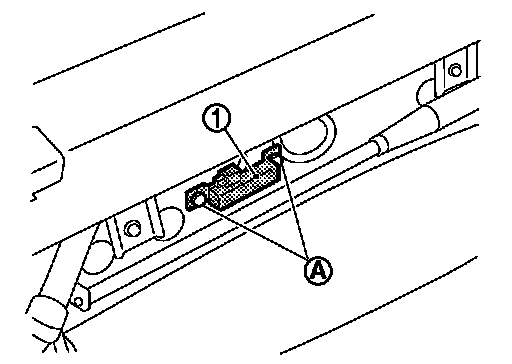

2. Remove the inside key antenna (trunk room) mounting clips (A), and then remove inside key antenna (trunk room) (1).

INSTALLATION
Install in the reverse order of removal.
