Removal and Installation





INSIDE KEY ANTENNA


INSTRUMENT CENTER : Removal and Installation


REMOVAL
1. Remove the console finisher. Refer to Removal and Installation.

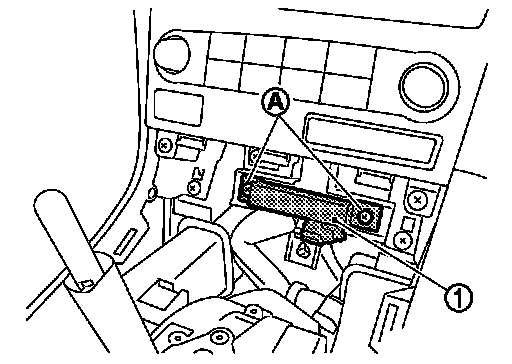

2. Remove the key slot mounting screw (A), and then remove inside key antenna (instrument center) (1).

INSTALLATION
Install in the reverse order of removal.
