BOSE Audio Without Navigation

U1274, U1275, U1276, U1277 REAR LEFT WOOFER

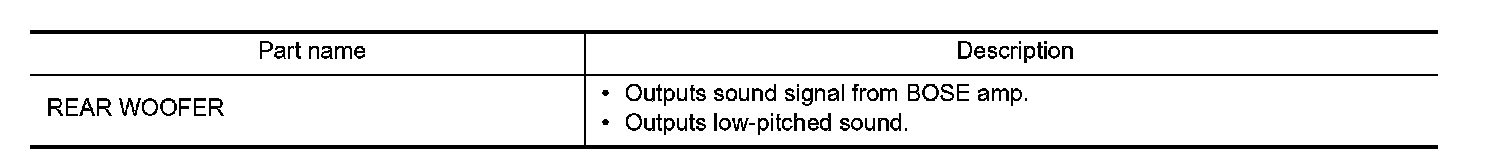

Description









DTC Logic

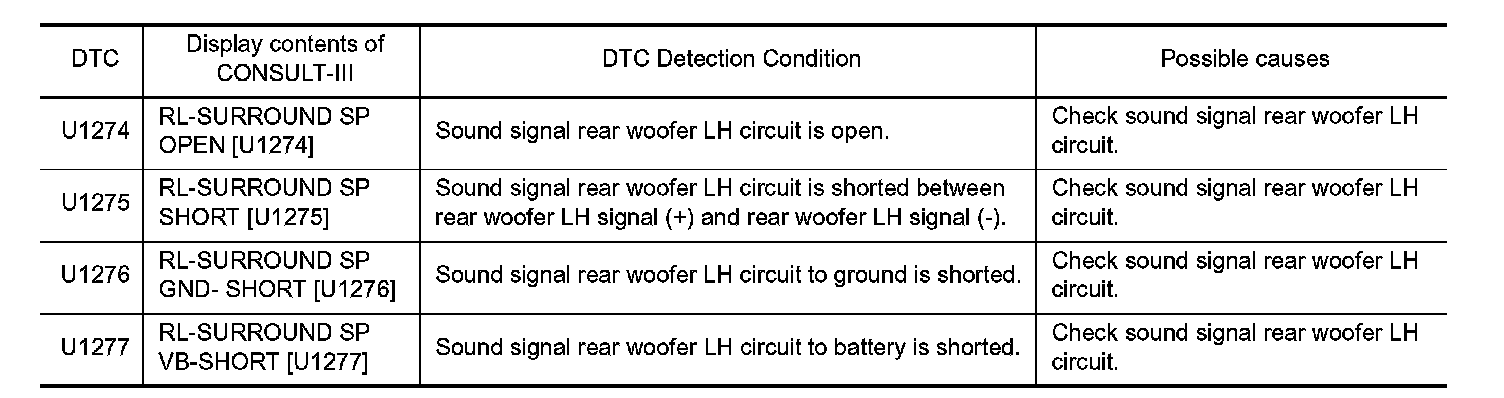

DTC DETECTION LOGIC









Diagnosis Procedure
1.PERFORM THE SELF-DIAGNOSIS
1. Delete the self-diagnosis results. Turn ignition switch OFF.
2. Turn ignition switch ON. perform the self-diagnosis again.
3. Check that the DTC is detected again.
Is any DTC detected?
YES - Repair sound signal rear woofer LH circuit harness or connector.
NO - Refer to GI section. Refer to Intermittent Incident.
NO - Refer to GI section. Refer to Intermittent Incident.
