BOSE Audio Without Navigation

U126C, U126D, U126E, U126F REAR RIGHT WOOFER

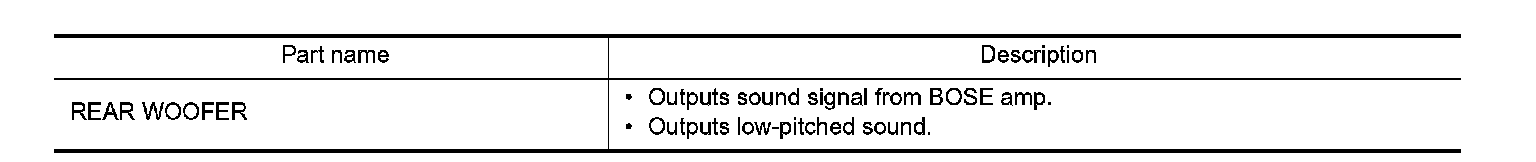

Description









DTC Logic

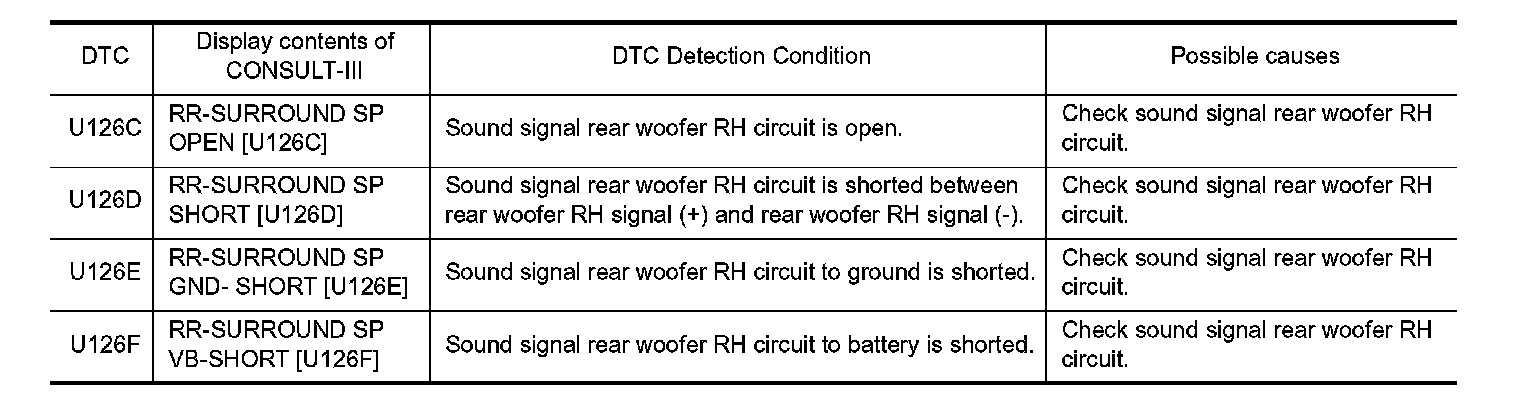

DTC DETECTION LOGIC









Diagnosis Procedure
1.PERFORM THE SELF-DIAGNOSIS
1. Delete the self-diagnosis results. Turn ignition switch OFF.
2. Turn ignition switch ON. perform the self-diagnosis again.
3. Check that the DTC is detected again.
Is any DTC detected?
YES - Repair sound signal rear woofer RH circuit harness or connector.
NO - Refer to GI section. Refer to Intermittent Incident.
NO - Refer to GI section. Refer to Intermittent Incident.
