BOSE Audio With Navigation

U1260, U1261, U1262, U1263 CENTER SPEAKER

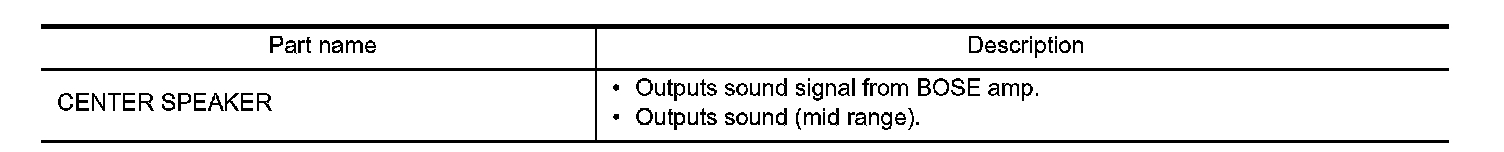

Description









DTC Logic

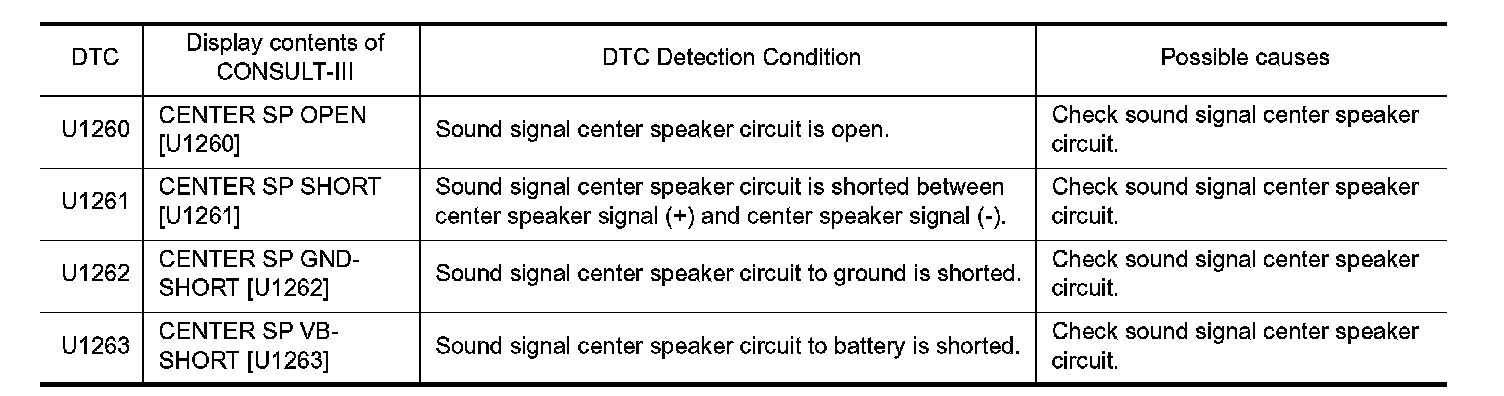

DTC DETECTION LOGIC









Diagnosis Procedure
1.PERFORM THE SELF-DIAGNOSIS
1. Delete the self-diagnosis results. Turn ignition switch OFF.
2. Turn ignition switch ON. perform the self-diagnosis again.
3. Check that the DTC is detected again.
Is any DTC detected?
YES - Repair sound signal center speaker circuit harness or connector.
NO - Refer to GI section. Refer to Intermittent Incident.
