U121F

U121F AV CONTROL UNIT

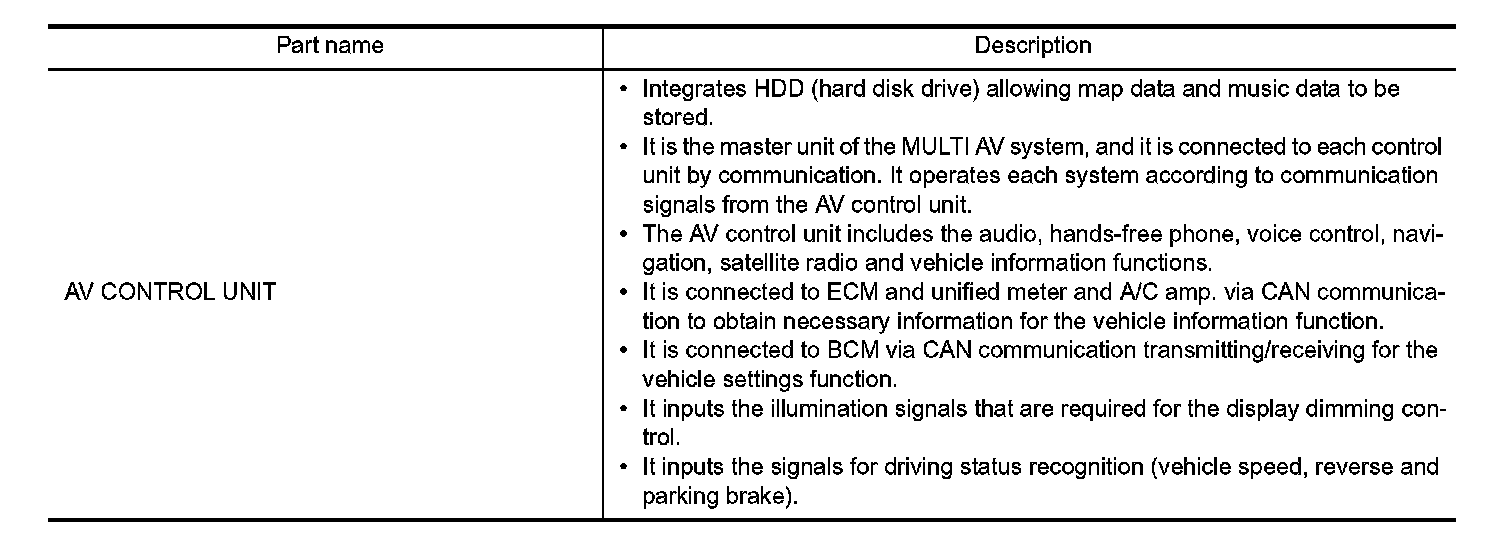

Description

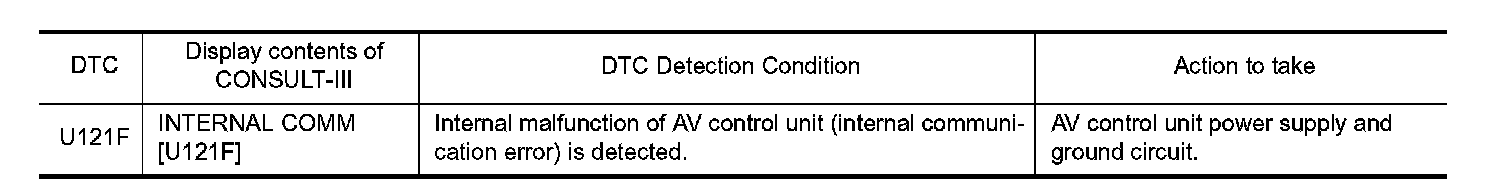

DTC Logic









Diagnosis Procedure
1.CHECK AV CONTROL UNIT POWER SUPPLY AND GROUND CIRCUIT
Check AV control unit power supply and ground circuit. Refer to BOSE Audio With Navigation.
Is the inspection result normal?
YES - INSPECTION END
NO - Repair or replace malfunctioning parts.
