BOSE Audio Without Navigation

U1010 CONTROL UNIT (CAN)





Description
Initial diagnosis of AV control unit.




DTC Logic

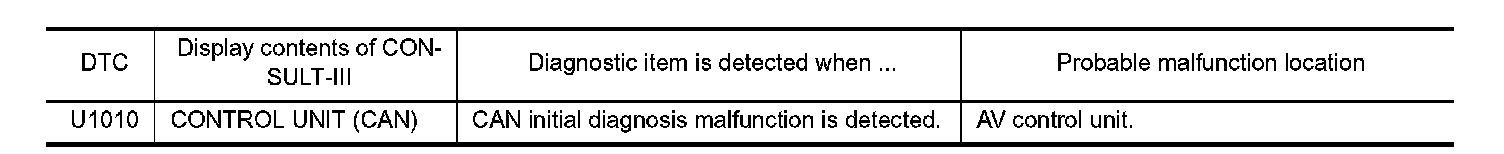

DTC DETECTION LOGIC









Diagnosis Procedure
1.REPLACE AV CONTROL UNIT
When DTC U1010 is detected, replace AV control unit.
- INSPECTION END
