P0615

P0615 STARTER RELAY





Description
TCM prohibits cranking other than at "P" or "N" position.




DTC Logic

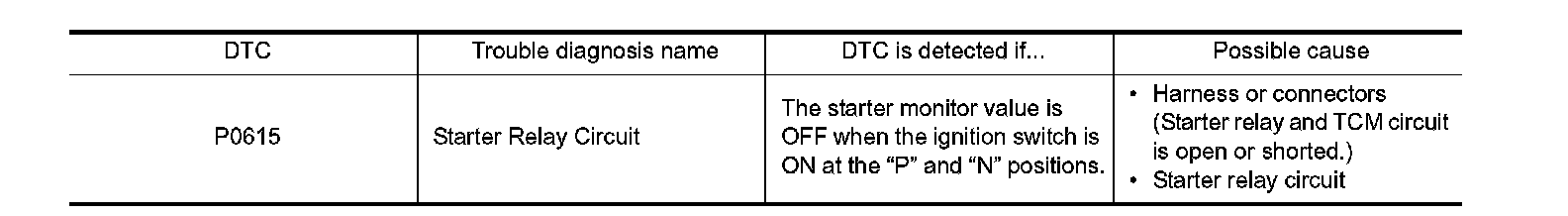

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.PRECONDITIONING
If "DTC CONFIRMATION PROCEDURE" is previously conducted, always turn ignition switch OFF and wait at least 10 seconds before performing the next test.
- GO TO 2.
2.CHECK DTC DETECTION
With CONSULT-III
1. Shift the selector lever to "P" and "N" positions.
2. Turn ignition switch ON and wait 2 seconds or more.
3. Perform "Self Diagnostic Results" in "TRANSMISSION".
Is "P0615" detected?
YES - Go to P0615.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK STARTER RELAY SIGNAL
1. Turn ignition switch ON.

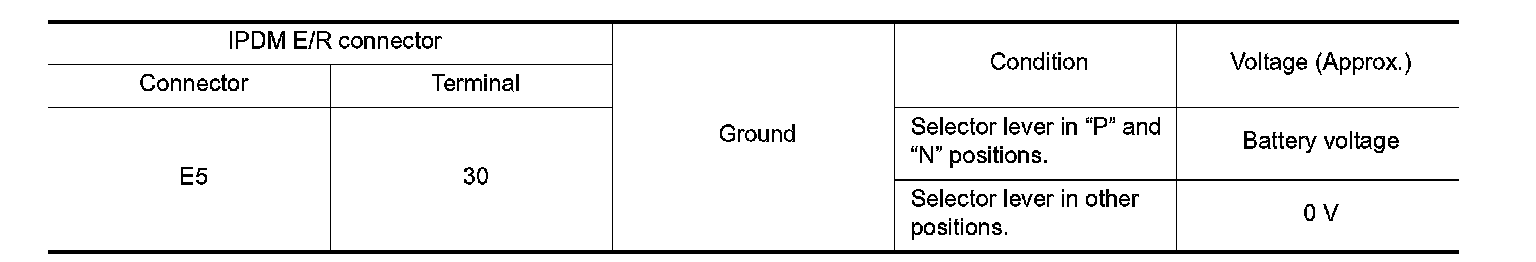

2. Check voltage between IPDM E/R connector terminal and ground.





Is the inspection result normal?
YES - Check starter relay circuit. Refer to Electrical Diagrams.
NO - GO TO 2.
2. CHECK HARNESS BETWEEN A/T ASSEMBLY AND IPDM E/R (PART 1)
1. Turn ignition switch OFF.
2. Disconnect A/T assembly connector and IPDM E/R connector.

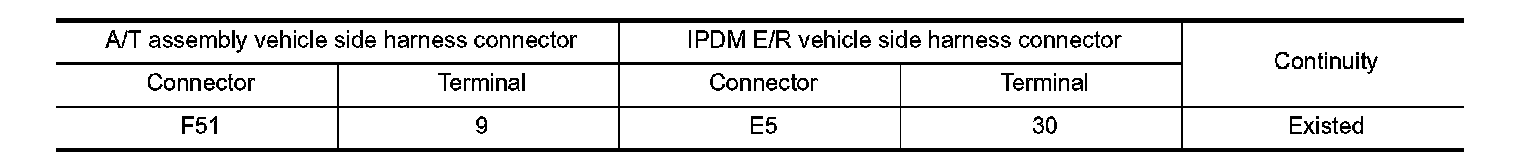

3. Check continuity between A/T assembly vehicle side harness connector terminal and IPDM E/R vehicle side harness connector terminal.





Is the inspection result normal?
YES - GO TO 3.
NO - Repair or replace damaged parts.
3.CHECK HARNESS BETWEEN A/T ASSEMBLY AND IPDM E/R (PART 2)

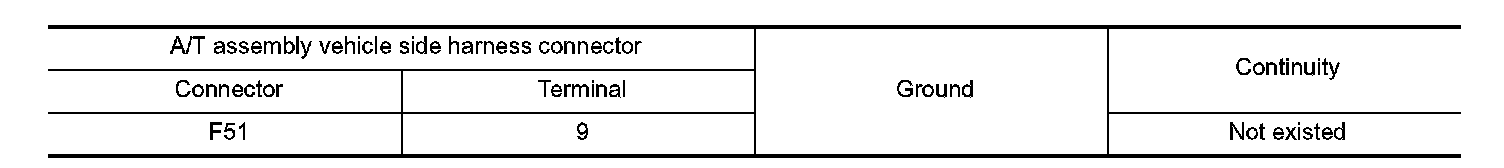

Check continuity between A/T assembly vehicle side harness connector terminal and ground.





Is the inspection result normal?
YES - GO TO 4.
NO - Repair or replace damaged parts.
4.CHECK INTERMITTENT INCIDENT
Refer to Intermittent Incident.
Is the inspection result normal?
YES - Replace A/T assembly. Refer to Exploded View.
NO - Repair or replace damaged parts.
