C1A24

C1A24 NP RANGE





Description
ICC sensor integrated unit judges the NP position status from the shift position signal and current gear position signal received from TCM via CAN communication.




DTC Logic

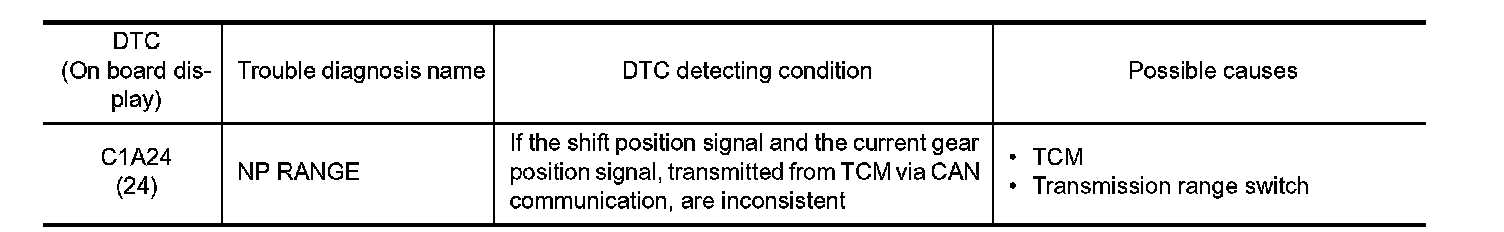

DTC DETECTION LOGIC






NOTE:
If DTC "C1A24" is detected along with DTC "U1000", first diagnose the DTC "U1000". Refer to CAN COMM Circuit CAN COMM Circuit CAN COMM Circuit CAN COMM Circuit, "DTC Logic".

DTC CONFIRMATION PROCEDURE
1.CHECK DTC REPRODUCE (1)
1. Start the engine.
2. Turn the MAIN switch of ICC system ON.
3. Wait for approximately 5 minutes or more after shifting the selector lever to "P" position.
4. Perform "All DTC Reading" with CONSULT-III.
5. Check if the "C1A24" is detected as the current malfunction in "Self Diagnostic Result" of "ICC".
Is "C1A24" detected as the current malfunction?
YES - Refer to C1A24.
NO - GO TO 2.
2.CHECK DTC REPRODUCE (2)
1. Wait for approximately 5 minutes or more after shifting the selector lever to "N" position.
2. Perform "All DTC Reading".
3. Check if the "C1A24" is detected as the current malfunction in "Self Diagnostic Result" of "ICC".
Is "C1A24" detected as the current malfunction?
YES - Refer to C1A24.
NO - Refer to Intermittent Incident.




Diagnosis Procedure
1.CHECK SELF-DIAGNOSIS RESULTS
Check if "U1000" is detected other than "C1A24" in "Self Diagnostic Result" of "ICC".
Is "U1000" detected?
YES - Perform the CAN communication system inspection. Repair or replace the malfunctioning parts. Refer to CAN COMM Circuit.
NO - GO TO 2.
2.CHECK NP POSITION SWITCH SIGNAL
Check that "NP RANGE SW" operates normally in "DATA MONITOR" of "ICC".
Is the inspection result normal?
YES - GO TO 3.
NO - Replace the ICC sensor integrated unit. Refer to Exploded View.
3.CHECK TCM DATA MONITOR
Check that "SLCT LVR POSI" operates normally in "DATA MONITOR" of "TRANSMISSION".
Is the inspection result normal?
YES - Replace the ICC sensor integrated unit. Refer to Exploded View.
NO - GO TO 4.
4.PERFORM TCM SELF-DIAGNOSIS
1. Perform "All DTC Reading".
2. Check if any DTC is detected in "Self Diagnostic Result" of "TRANSMISSION".
Is any DTC detected?
YES - Perform diagnosis on the detected DTC and repair or replace the malfunctioning parts. Refer to Testing and Inspection.
NO - Replace the ICC sensor integrated unit. Refer to Exploded View.




Special Repair Requirement

DESCRIPTION
Perform the action test after adjusting the laser beam aiming of ICC sensor integrated unit when the following operation is performed.
- Removal and installation of ICC sensor integrated unit
- Replacement of ICC sensor integrated unit

SPECIAL REPAIR REQUIREMENT
1.LASER BEAM AIMING ADJUSTMENT OF ICC SENSOR INTEGRATED UNIT
Adjust the laser beam aiming of the ICC sensor integrated unit. Refer to Description Special Repair Requirement Description, "LASER BEAM AIMING ADJUSTMENT : Description".
- GO TO 2.
2.CHECK ICC SYSTEM
1. Erase the "Self Diagnostic Result", and then perform "All DTC Reading" again after performing the action test. (Refer to LDW and LDP for action test.)
2. Check that the ICC system is normal.
- WORK END
