C1121

C1121, C1123, C1125, C1127 OUT ABS SOL





Description
The solenoid valve increases, holds or decreases the fluid pressure of each brake caliper according to the signals transmitted by the ABS actuator and electric unit (control unit).




DTC Logic

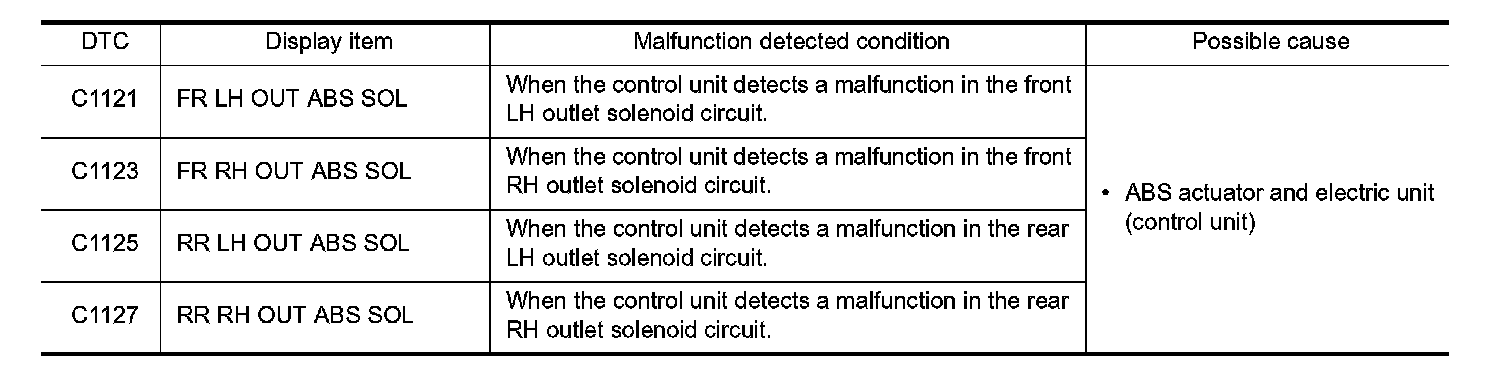

DTC DETECTION LOGIC






DTC CONFIRMATION PROCEDURE
1.DTC REPRODUCTION PROCEDURE
1. Turn the ignition switch ON.
2. Perform ABS actuator and electric unit (control unit) self-diagnosis.
Is DTC "C1121", "C1123", "C1125 " or "C1127" detected?
YES - Proceed to diagnosis procedure. Refer to C1121.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK SOLENOID POWER SUPPLY
1. Turn the ignition switch OFF.
2. Disconnect ABS actuator and electric unit (control unit) harness connector.

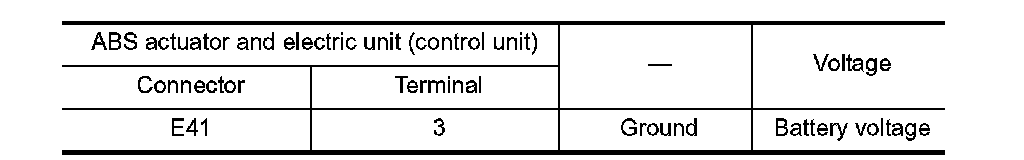

3. Check the voltage between ABS actuator and electric unit (control unit) harness connector and ground.





Is the inspection result normal?
YES - GO TO 2.
NO - Repair or replace error-detected parts.
2.CHECK SOLENOID GROUND
Check the continuity between ABS actuator and electric unit (control unit) harness connector and ground.





Is the inspection result normal?
YES - Replace ABS actuator and electric unit (control unit). Refer to Exploded View.
NO - Repair or replace error-detected parts.




Special Repair Requirement
1.ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION
Always perform the neutral position adjustment for the steering angle sensor, when replacing the ABS actuator and electric unit (control unit) or steering angle sensor and removing steering angle sensor. Refer to Special Repair Requirement
- END
