C0126

C0126 STEERING ANGLE SENSOR SIGNAL





Description
AFS control unit receives the steering angle sensor signal from the steering angle sensor with CAN communication.




DTC Logic

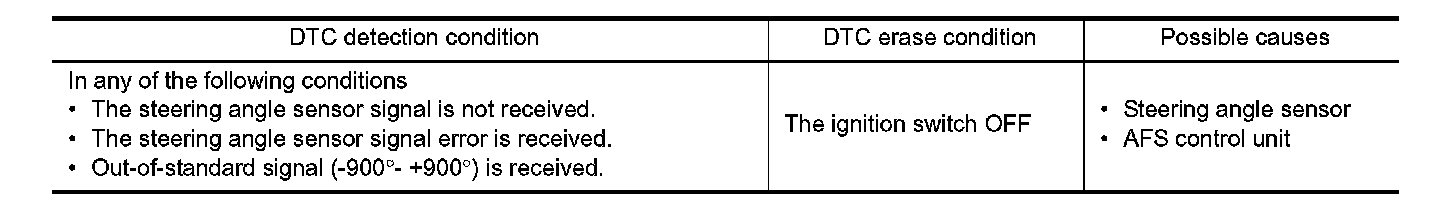

DTC DETECTION LOGIC
[C0126] Steering angle sensor signal






DTC CONFIRMATION PROCEDURE
1.DTC ERASE
Erase the DTC memory of AFS with CONSULT-III.
- GO TO 2.
2.DTC CONFIRMATION
1. Start the engine.
2. Turn the steering wheel to the maximum right/left.
3. Select the self-diagnosis with CONSULT-III.
Is DTC "C0126" detected?
YES - Refer to C0126.
NO - Refer to Intermittent Incident.




Diagnosis Procedure
1.ABS ACTUATOR AND ELECTRICAL UNIT (CONTROL UNIT) SELF-DIAGNOSIS
Check the self-diagnosis result with CONSULT-III. Check that ABS actuator and electrical unit (control unit) does not detect any DTCs.
Is any DTC detected?
YES - Check ABS actuator and electrical unit (control unit).Refer to Testing and Inspection.
NO - GO TO 2.
2.DTC ERASE
Erase DTC memory of AFS with CONSULT-III.
Is the memory erased?
YES - INSPECTION END
NO - Replace AFS control unit.
