B2617

B2617 STARTER RELAY CIRCUIT





Description
Located in IPDM E/R, the starter relay runs the starter motor. The starter relay is turned ON by the BCM when the ignition switch is in the START position. IPDM E/R transmits the starter relay ON signal to BCM via CAN communication.




DTC Logic

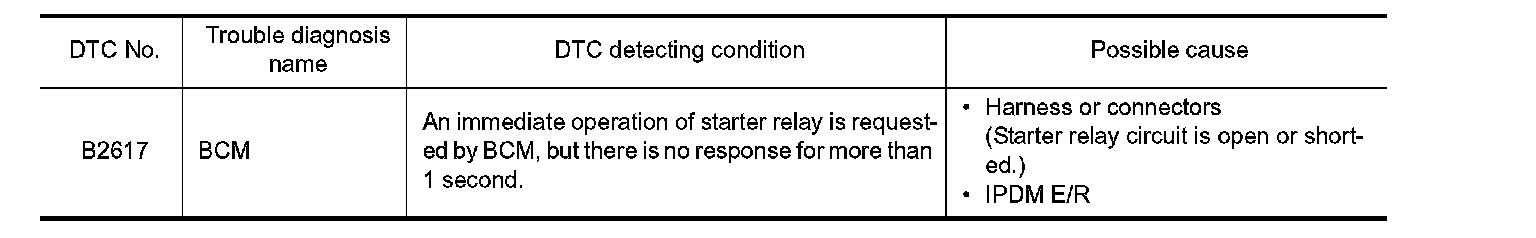

DTC DETECTION LOGIC

NOTE:
- If DTC B2617 is displayed with DTC U1000, first perform the trouble diagnosis for DTC U1000. Refer to IPDM E/R.
- If DTC B2617 is displayed with DTC U1010, first perform the trouble diagnosis for DTC U1010. Refer to Control Unit (CAN).
- If DTC B2617 is displayed with DTC B210E for IPDM E/R, first perform the trouble diagnosis for DTC
B210E. Refer to B210E.






DTC CONFIRMATION PROCEDURE
1.PERFORM DTC CONFIRMATION PROCEDURE
1. Turn ignition switch ON under the following conditions and wait 1 second or more.

A/T models
- Selector lever is in the P or N position
- Do not depress brake pedal

M/T models
- Do not depress clutch pedal
2. Check "Self-diagnosis result" using CONSULT-III.
Is DTC detected?
YES - Go to B2617.
NO - INSPECTION END




Diagnosis Procedure
1.CHECK STARTER RELAY
1. Turn ignition switch ON.

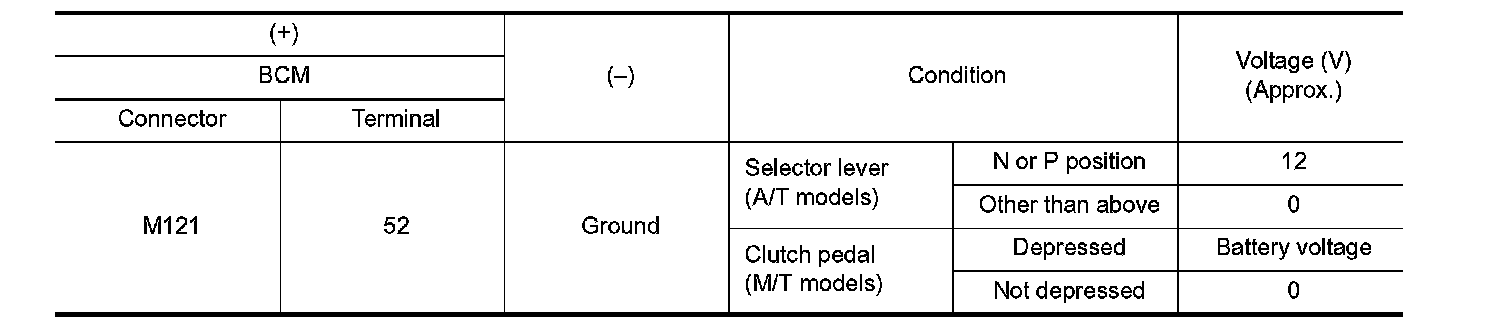

2. Check voltage between BCM harness connector and ground.





Is the measurement value within the specification.
YES - GO TO 3.
NO - GO TO 2.
2.CHECK STARTER RELAY CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and IPDM E/R connector.

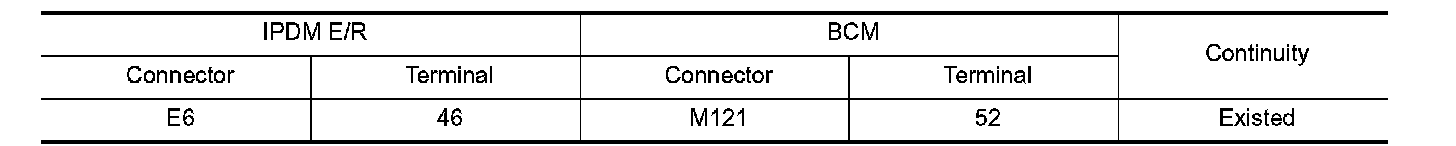

3. Check continuity between IPDM E/R harness connector and BCM harness connector.

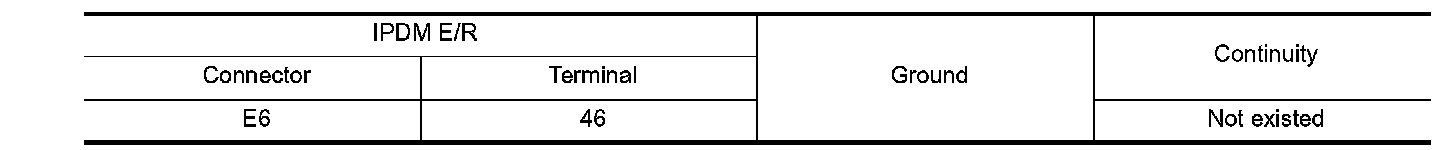

4. Check continuity between IPDM E/R harness connector and ground.





Is the inspection result normal?
YES - Replace IPDM E/R. Refer to Removal and Installation.
NO - Repair or replace harness.
3.CHECK INTERMITTENT INCIDENT
Refer to Intermittent Incident.
- INSPECTION END
