Oil Channel

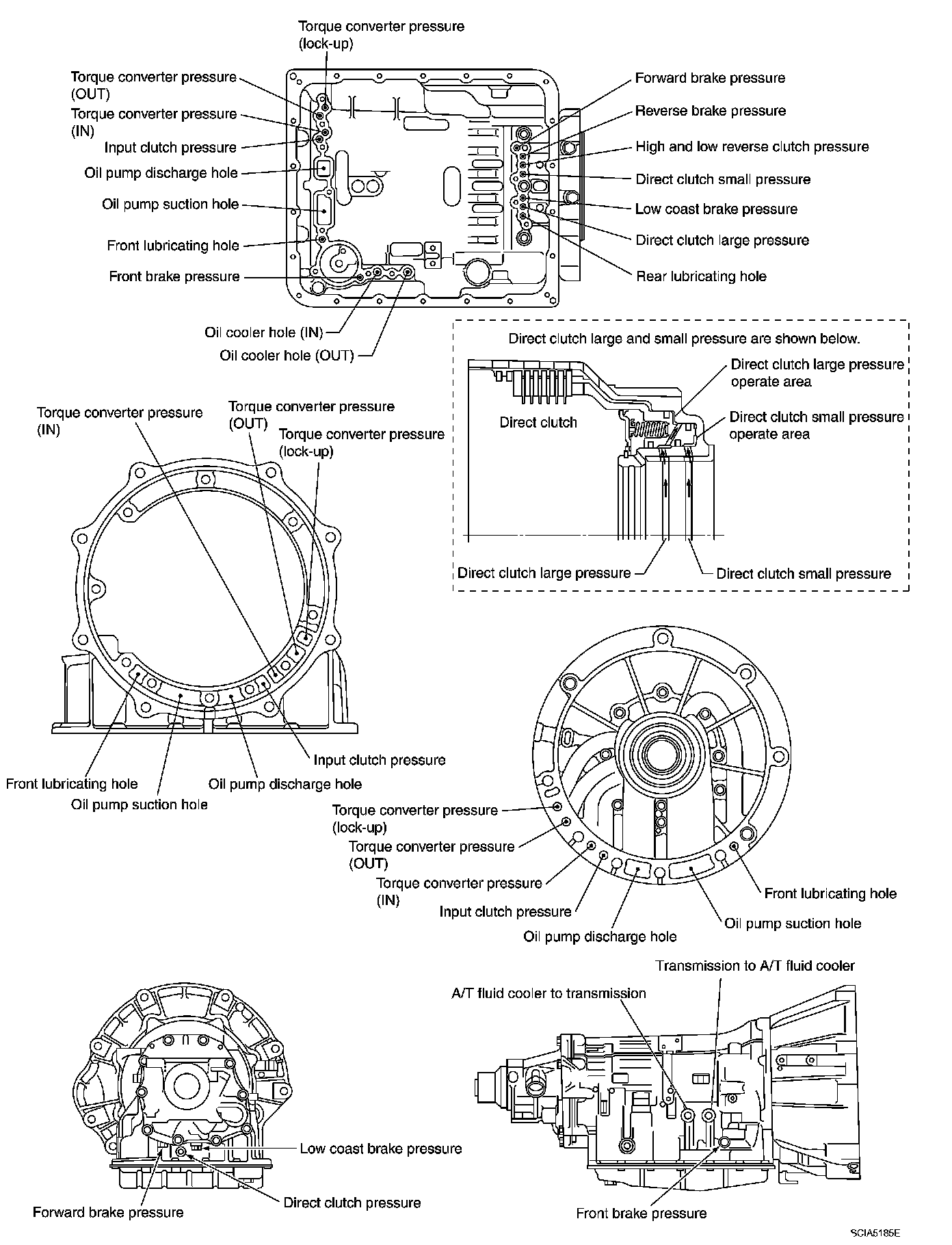

Oil Channel - VQ35DE models for 2WD:

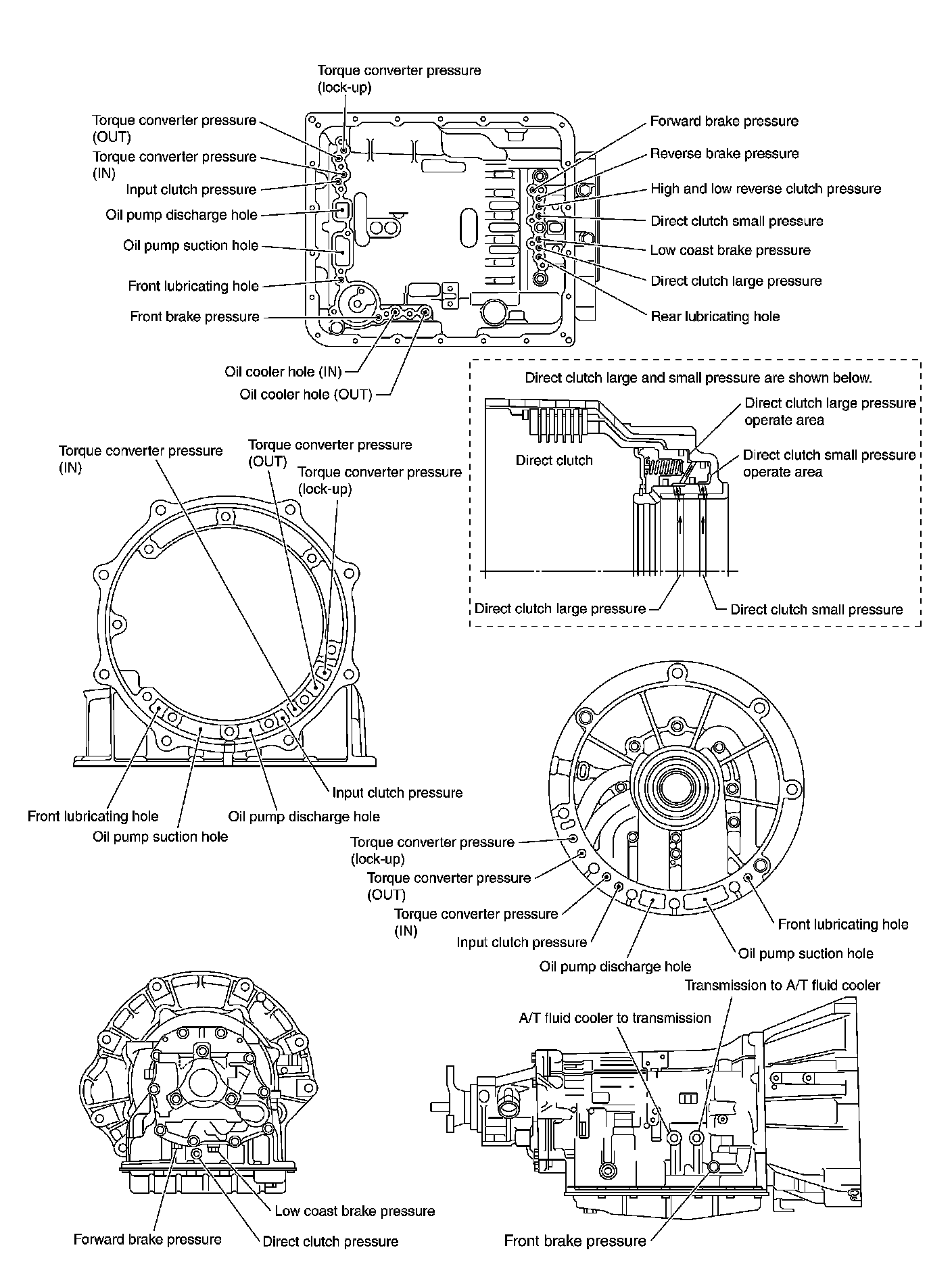

Oil Channel - VK45DE models for 2WD:

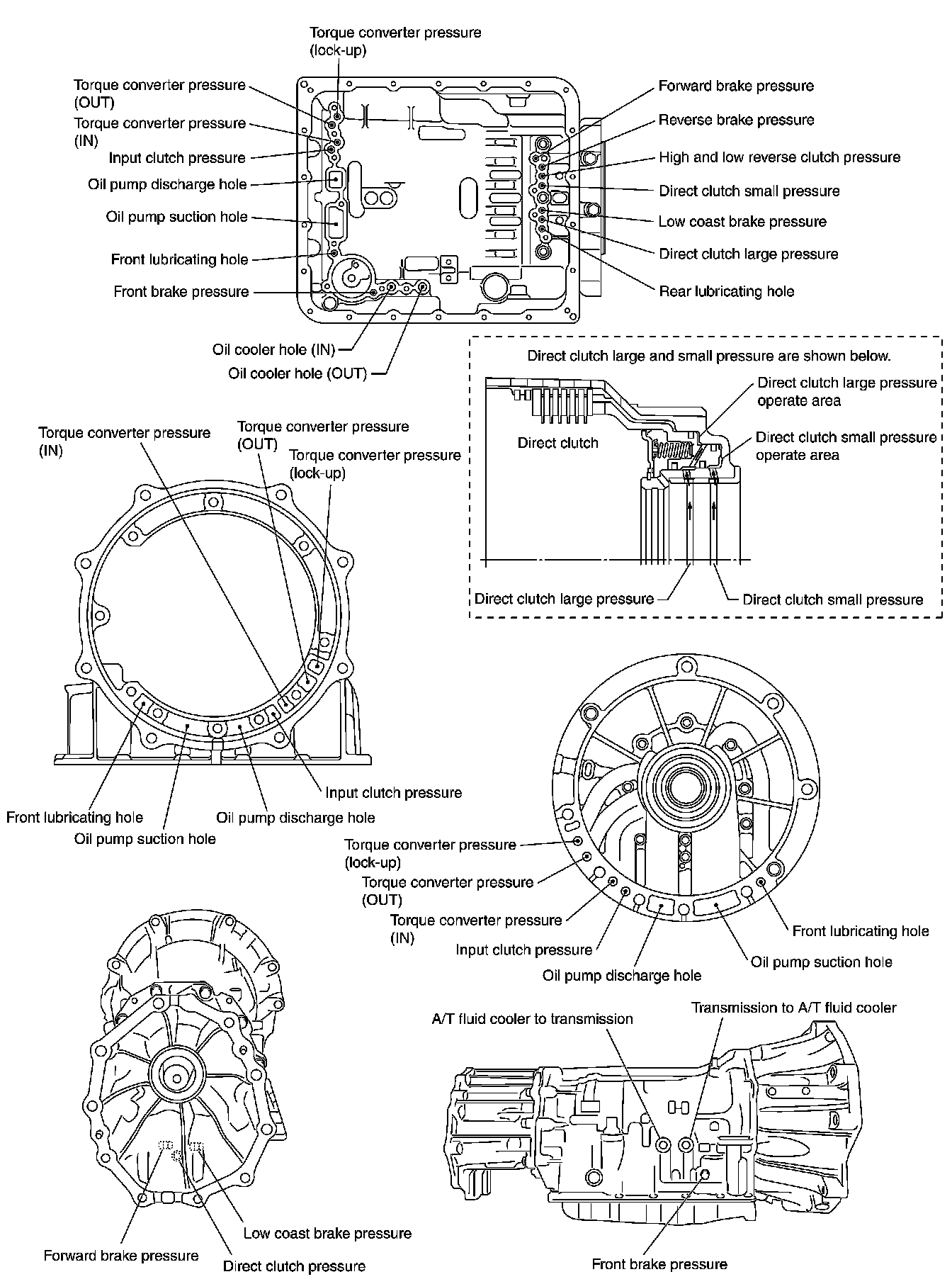

Oil Channel - AWD models:
