PDU Communication Circuit System 1

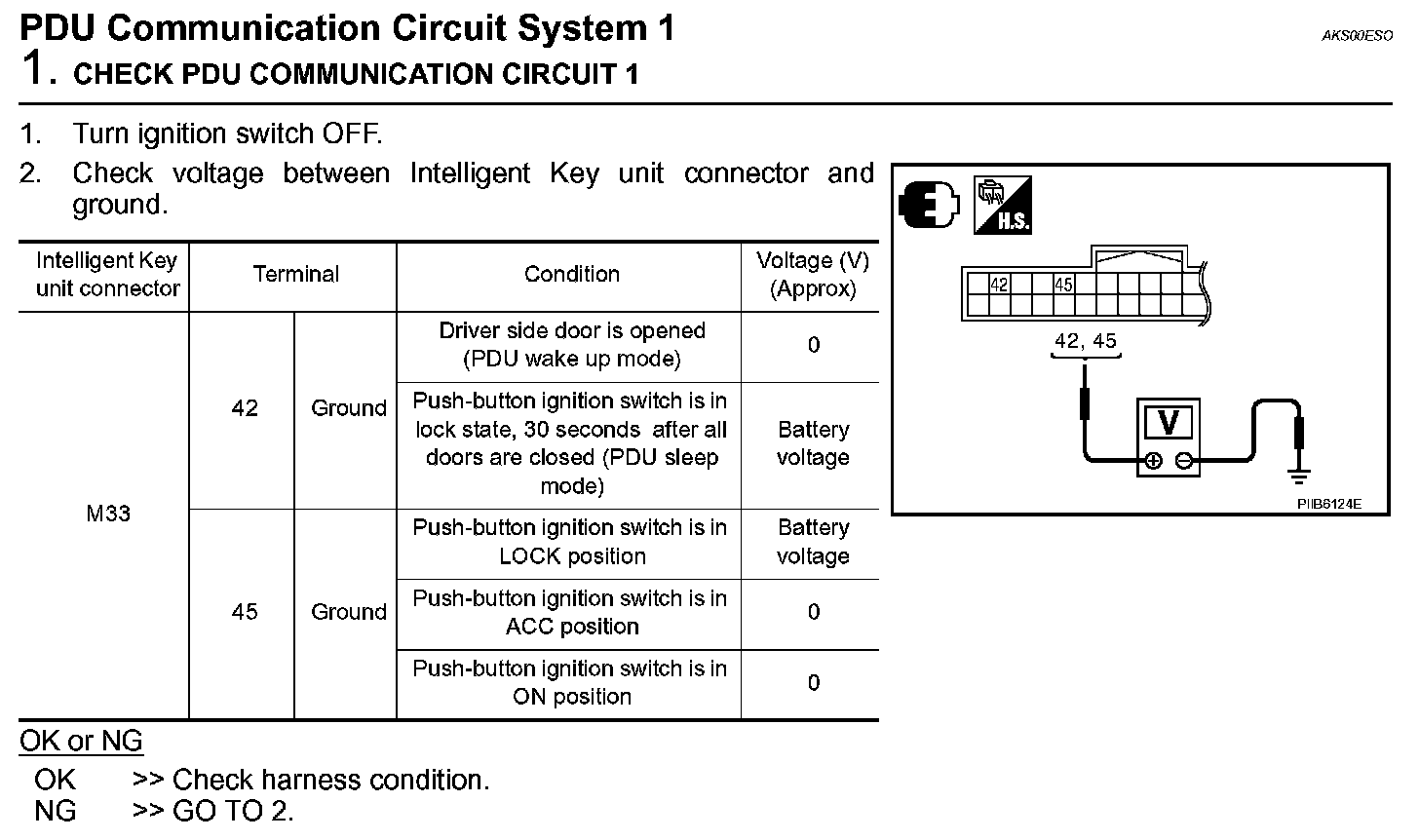

PDU Communication Circuit System 1 (Step 1):



PDU Communication Circuit System 1 (Step 2):
