Home >> Infiniti >> 2004 >> M45 V8-4.5L (VK45DE) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Component Tests and General Diagnostics >> Encoder Switch Check (Passenger Side)

Encoder Switch Check (Passenger Side)

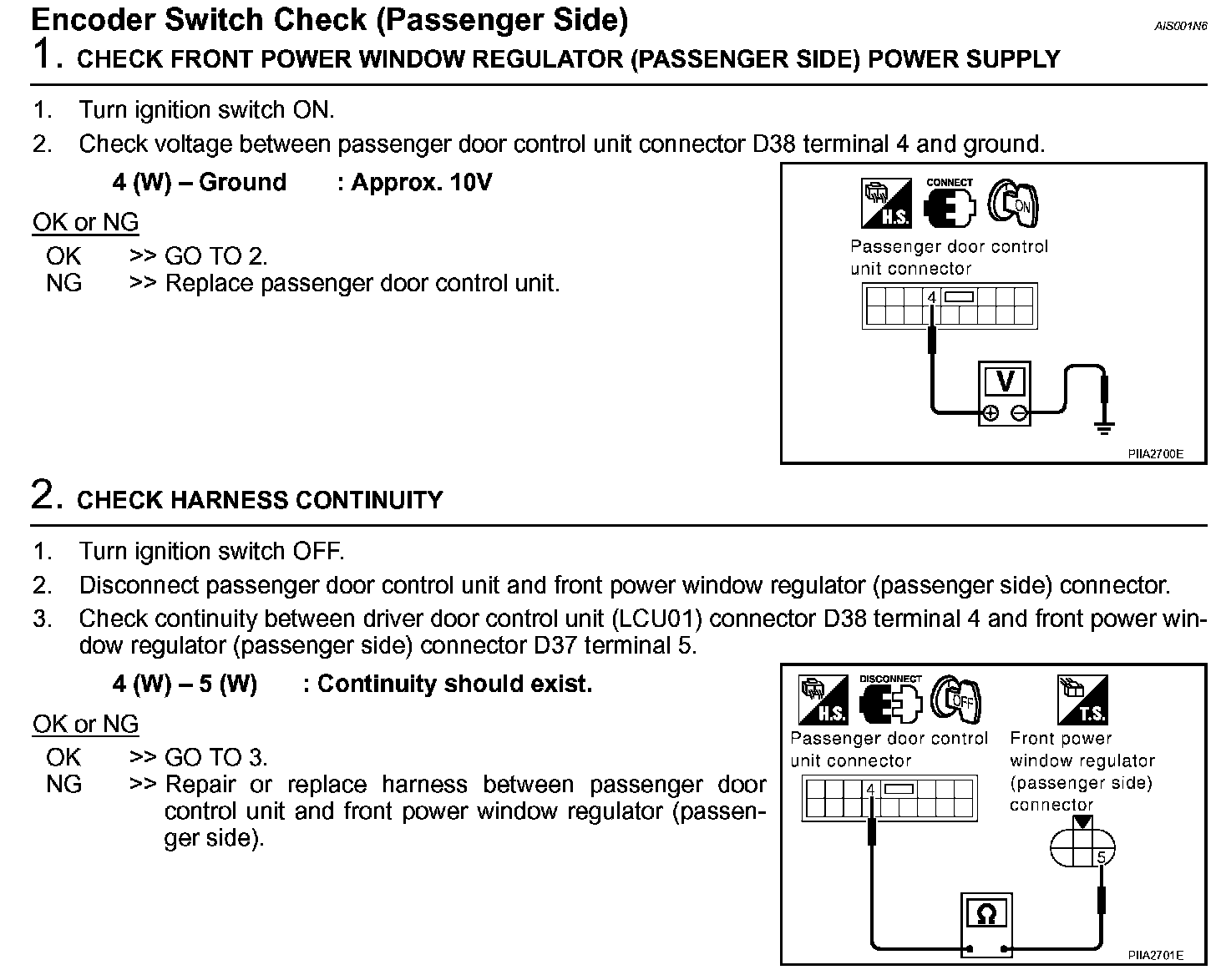

Encoder Switch Check (Passenger Side) (Steps 1 - 2):

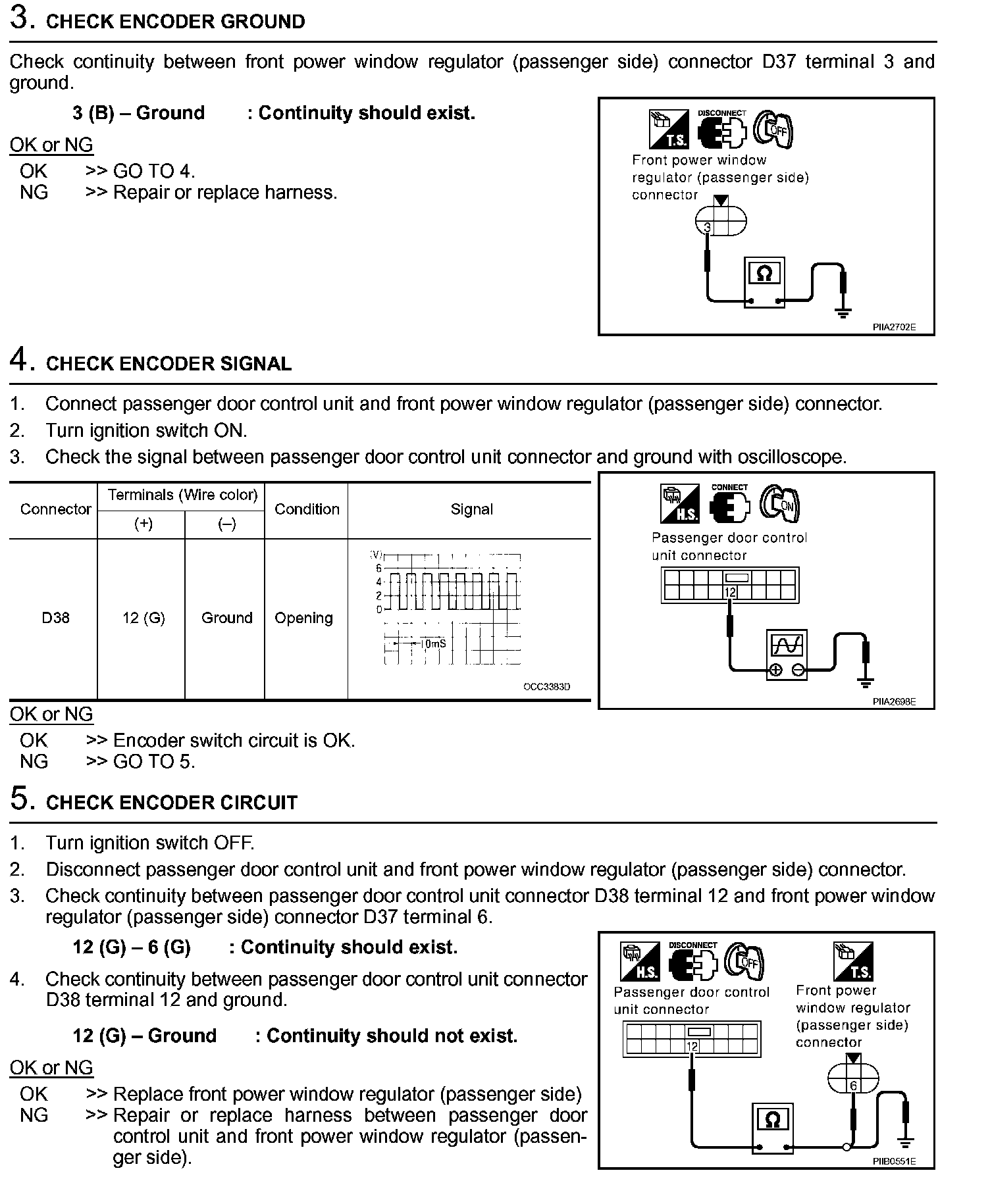

Encoder Switch Check (Passenger Side) (Steps 3 - 5):
