Terminals and Reference Values For Power Seat Switch

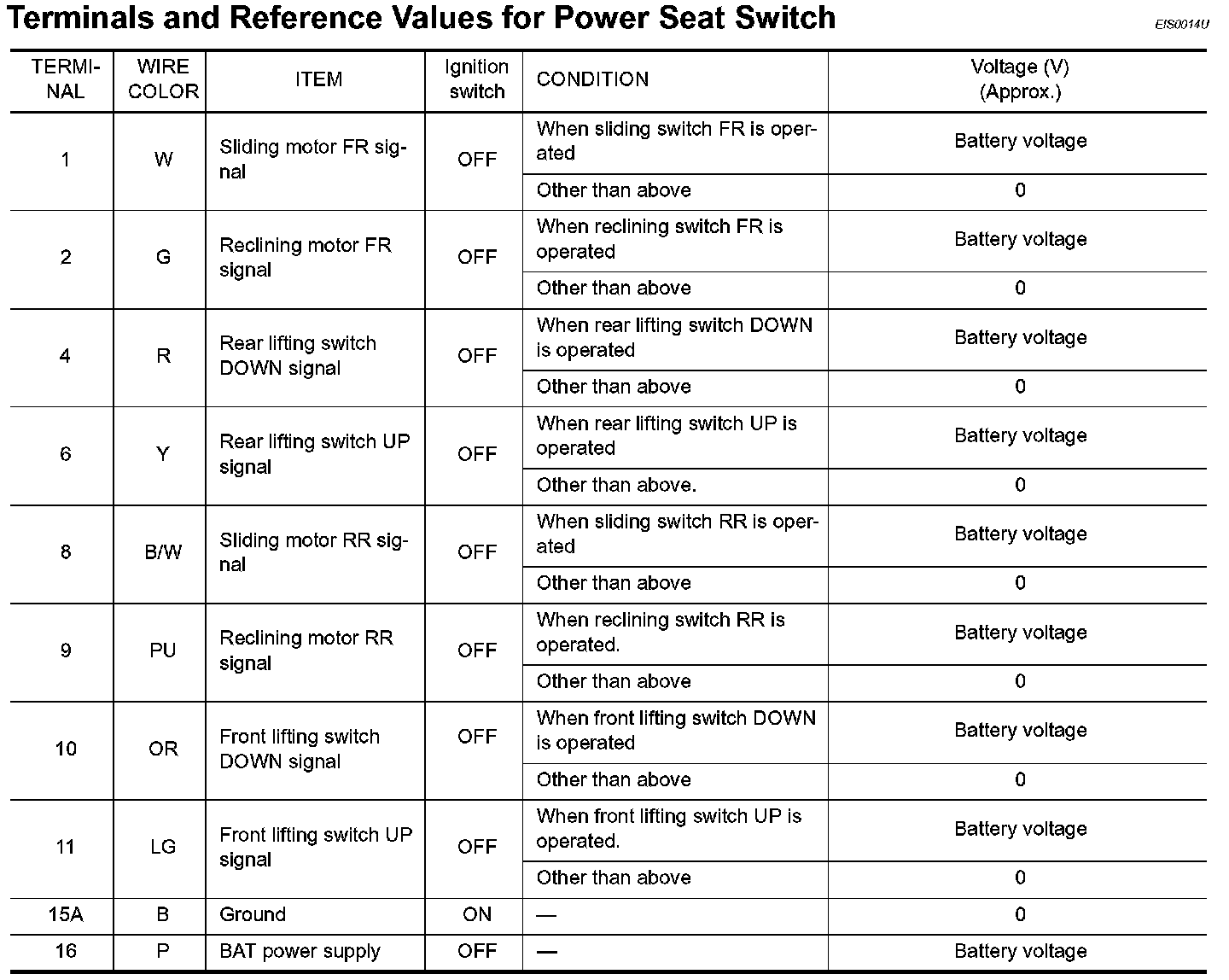

Terminals And Reference Values For Power Seat Switch:
