Remote Keyless Entry Receiver Check

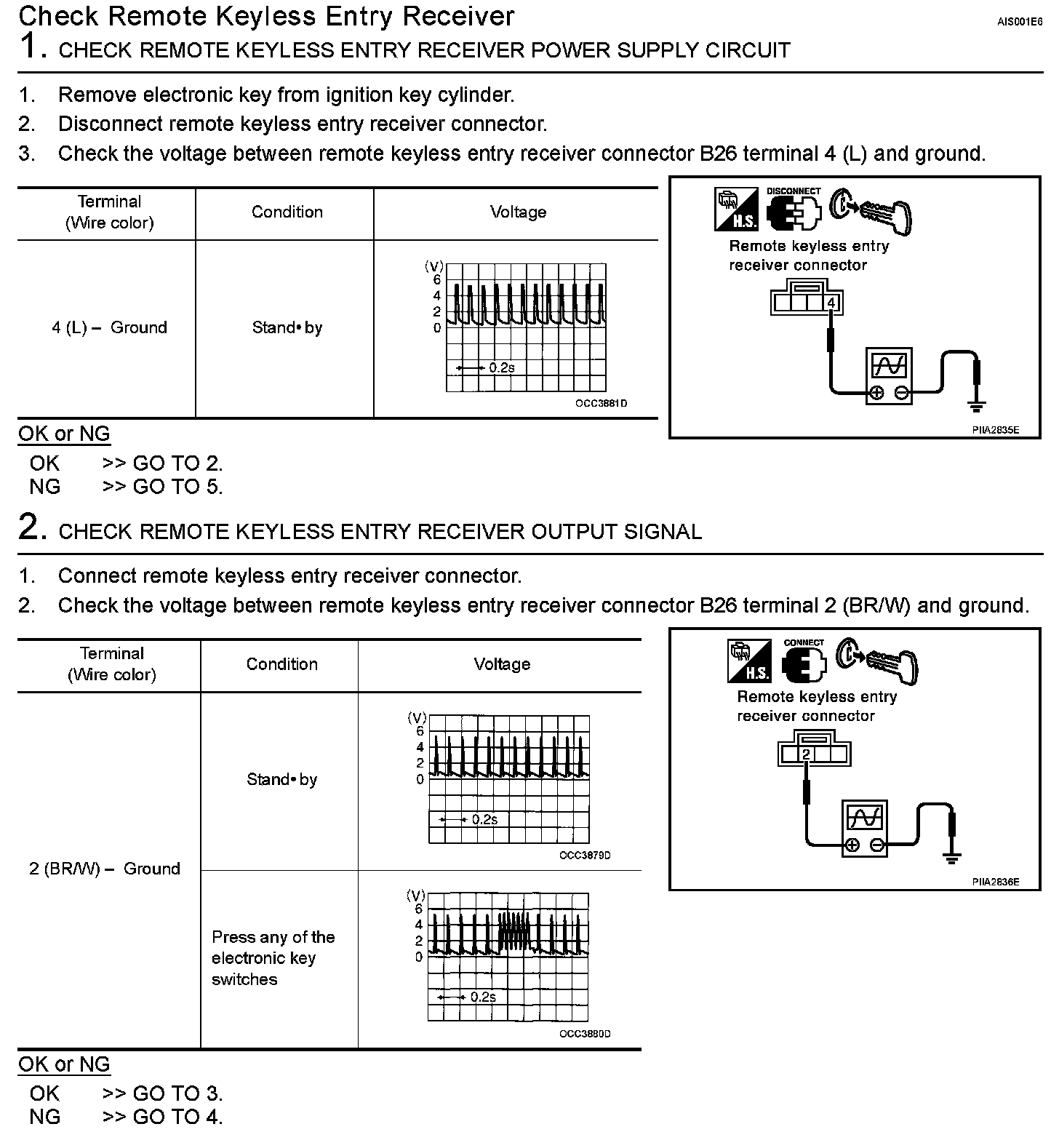

Diagnostic Procedure Step 1 - 2:

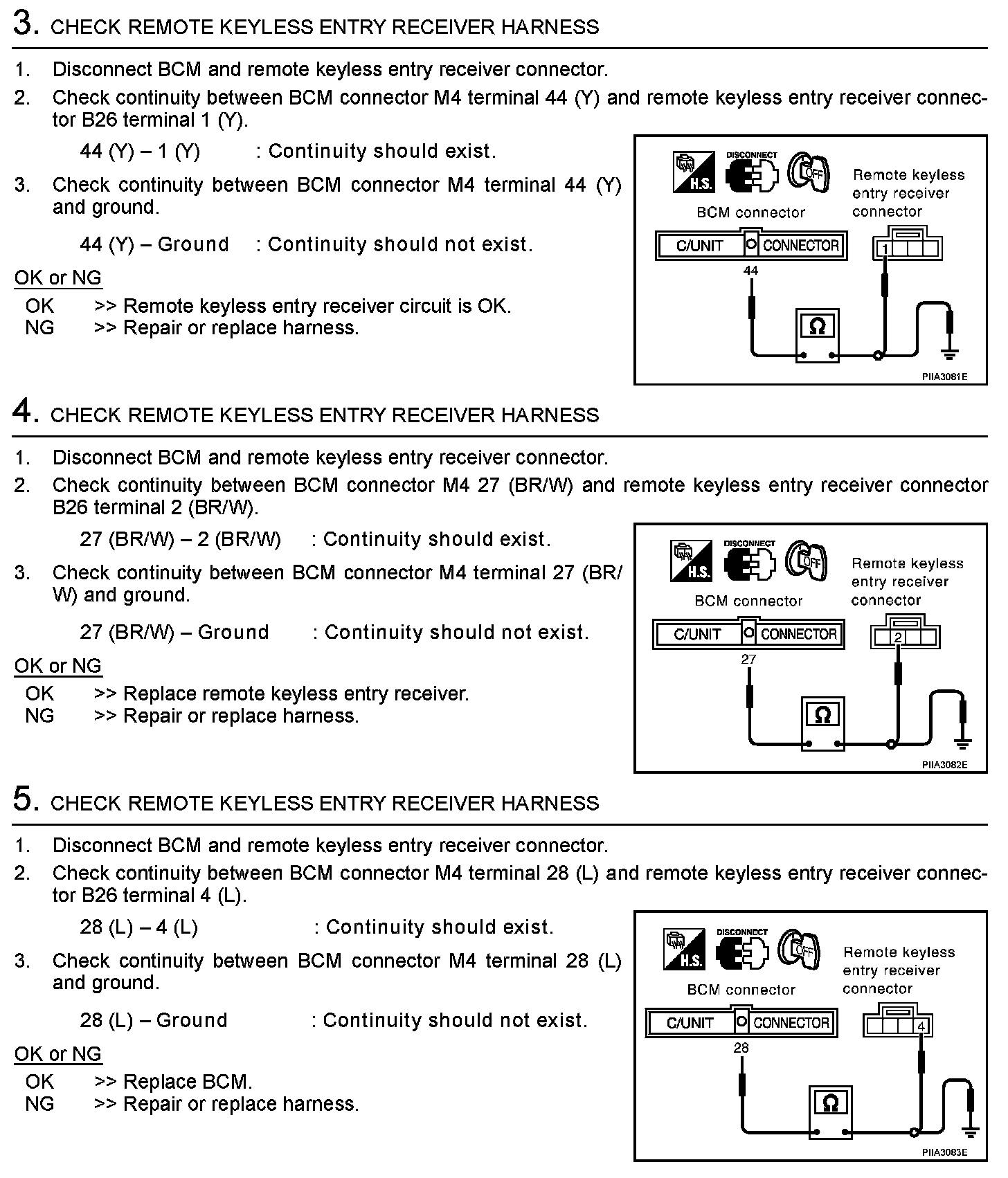

Diagnostic Procedure Step 3 - 5:
