Axle Shaft
Axle Shaft
DRIVE SHAFT

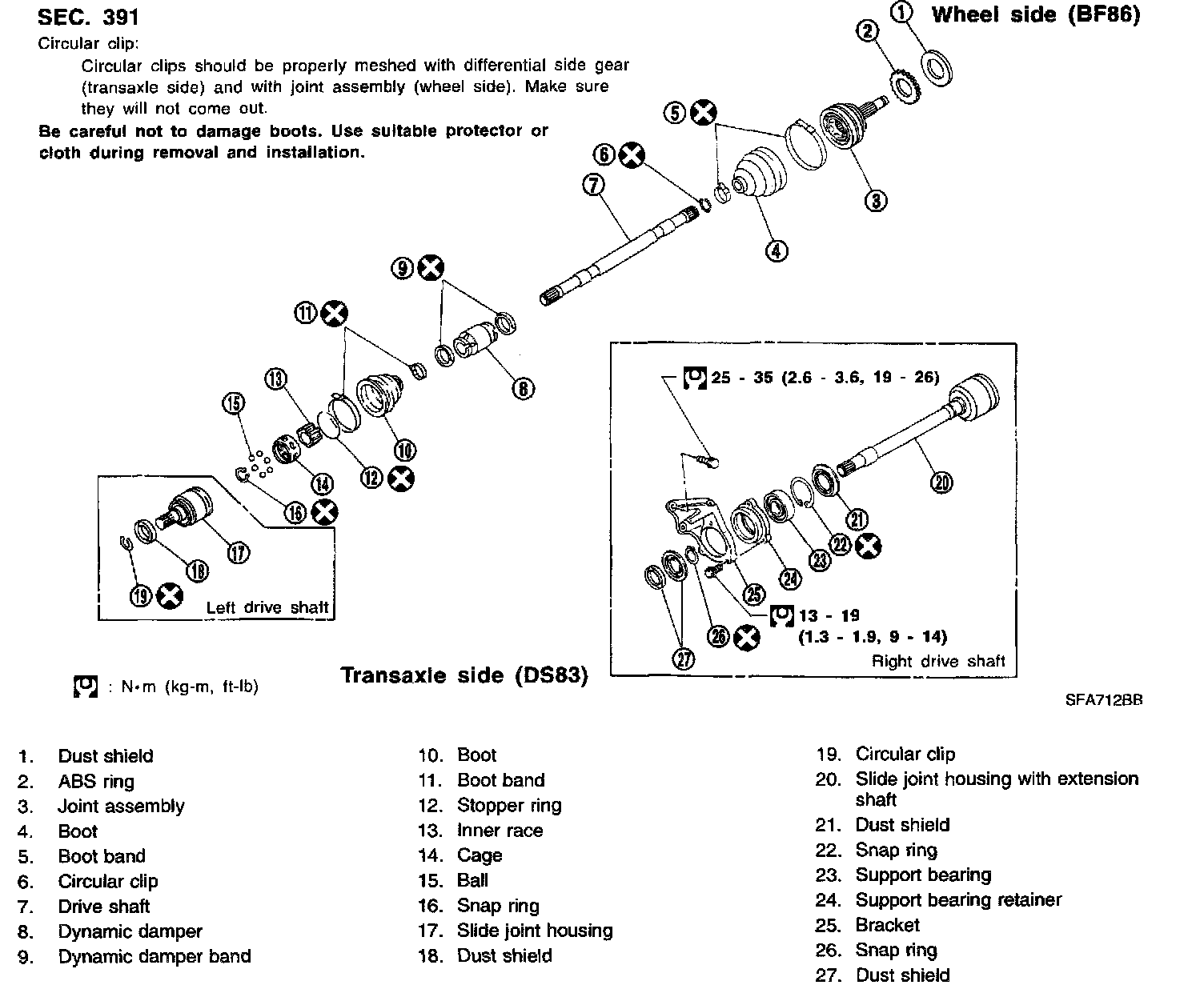

Transaxle Side (DS83) / Wheel Side (BF86)

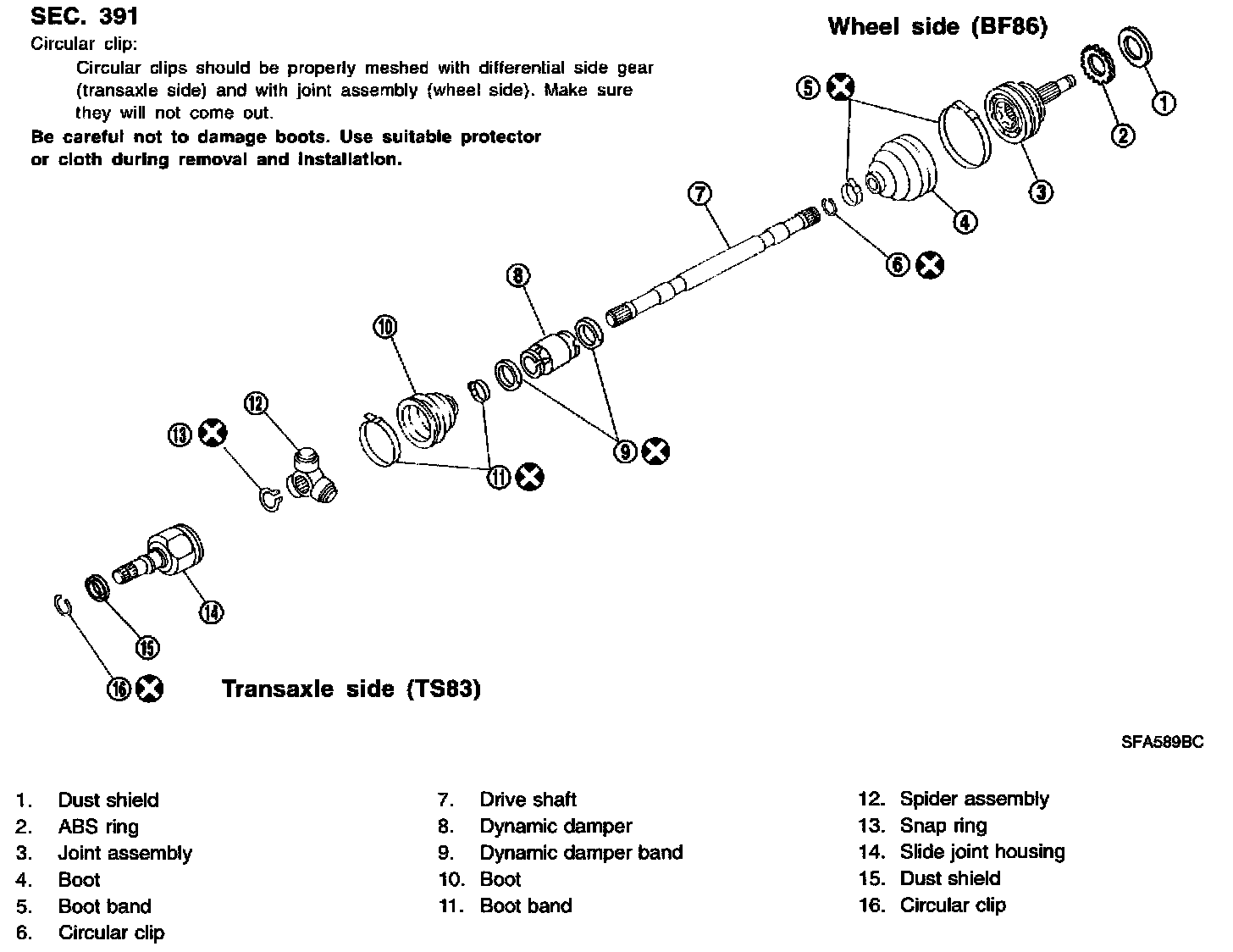

Transaxle Side (TS83) / Wheel Side (BF86)
