Initial Inspection and Diagnostic Overview

Encoder

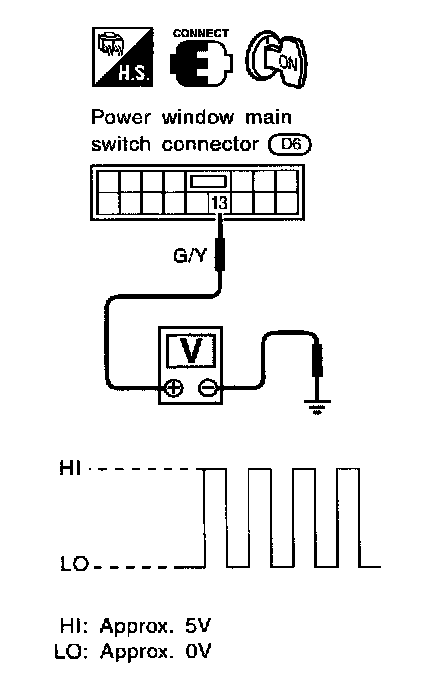

Measure voltage between power window main switch terminal 13 and ground with oscilloscope when power window is in automatic close operation.







Limit Switch

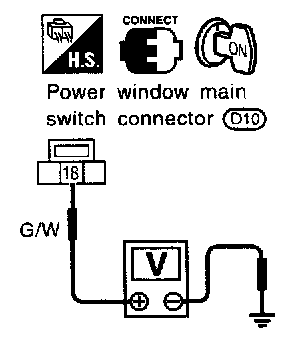

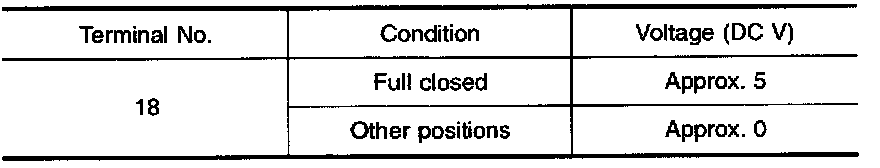

Check voltage between power window main switch terminal 18 and ground.
