Electrical Diagrams

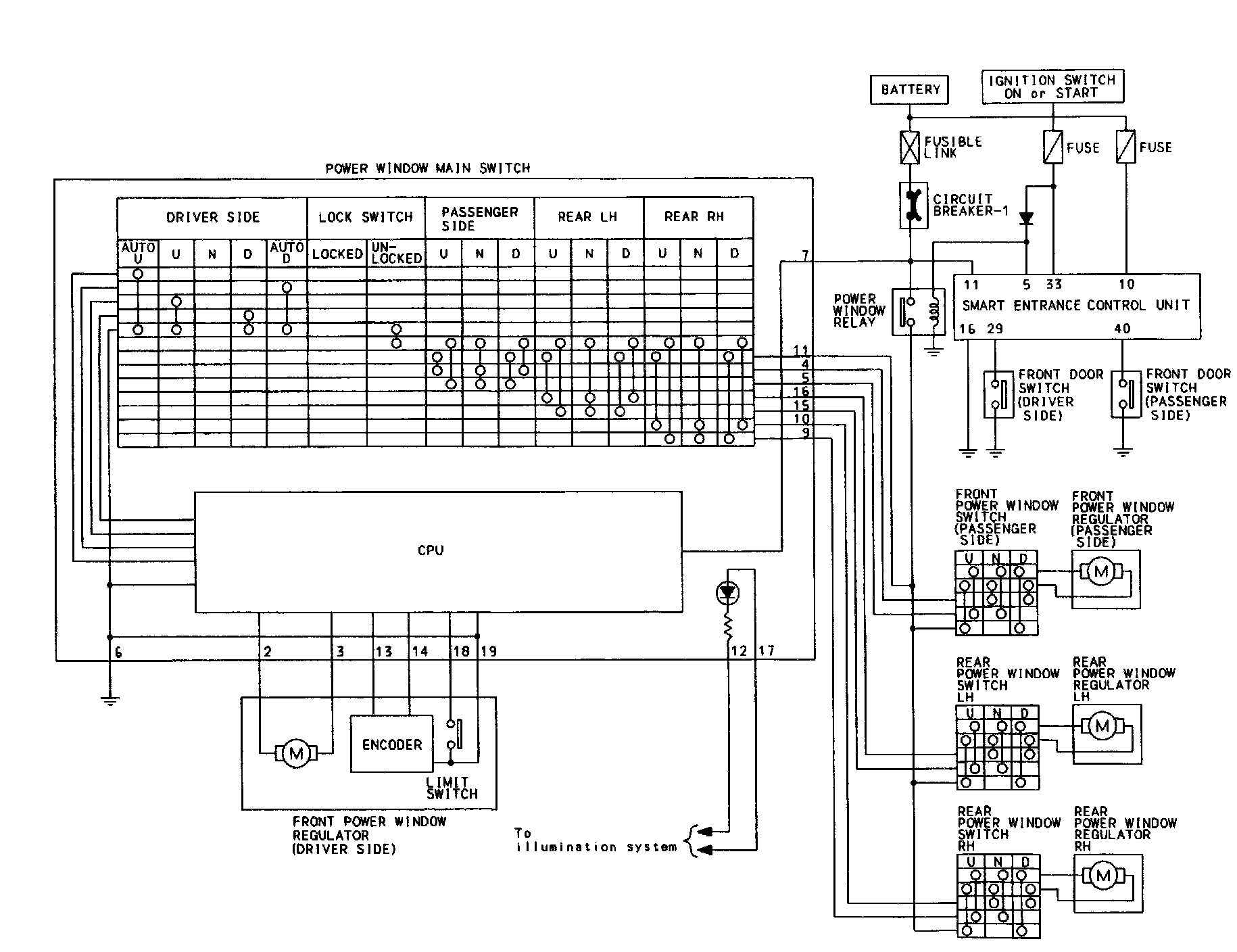

Schematic

Circuit Diagrams

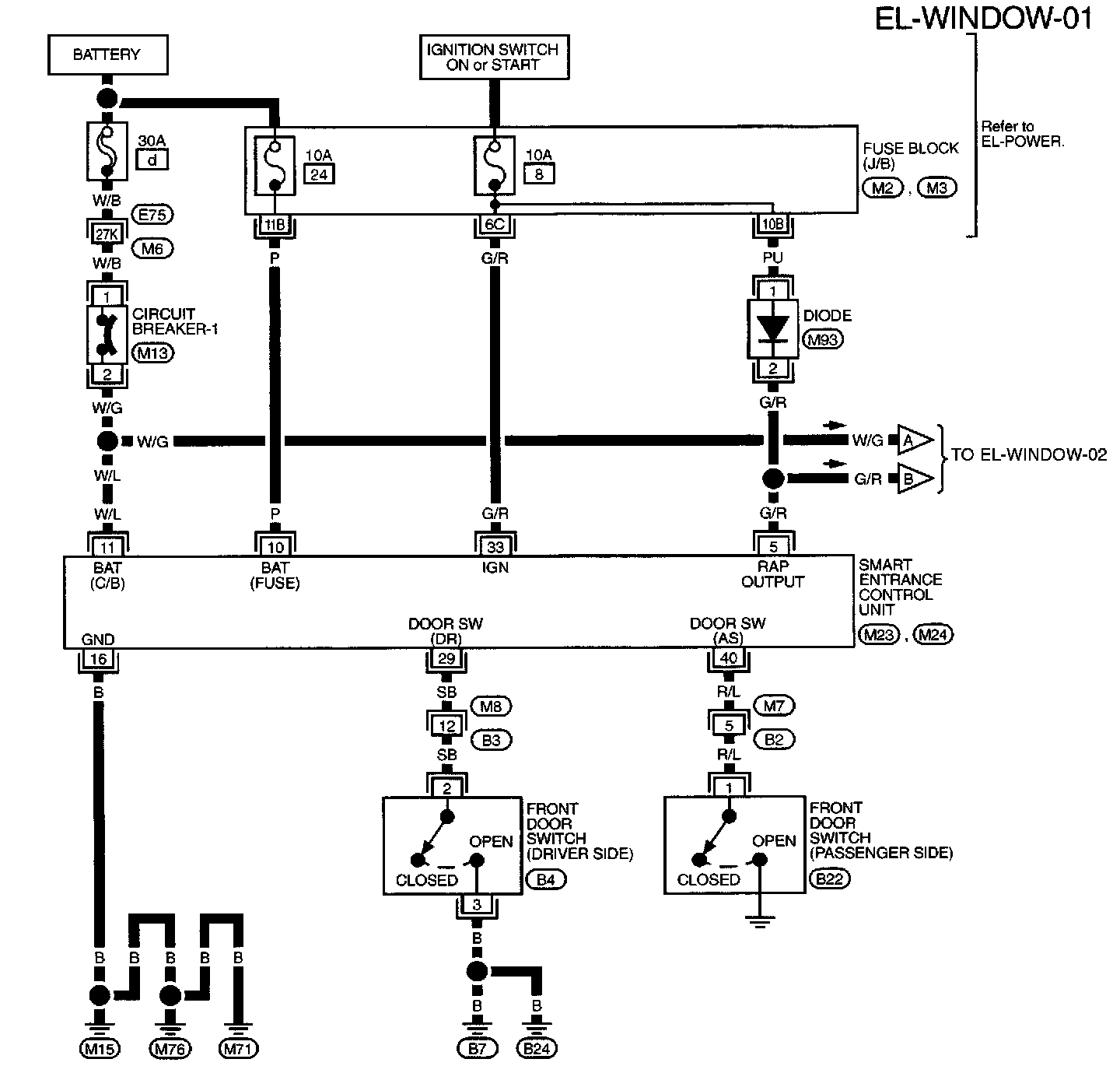

EL-WINDOW-01:

(Part 1 of 4)
Fuse Block (J/B)
Circuit Breaker-1
Diode
Smart Entrance Control Unit
Front Door Switch (Driver Side)
Front Door Switch (Passenger Side)

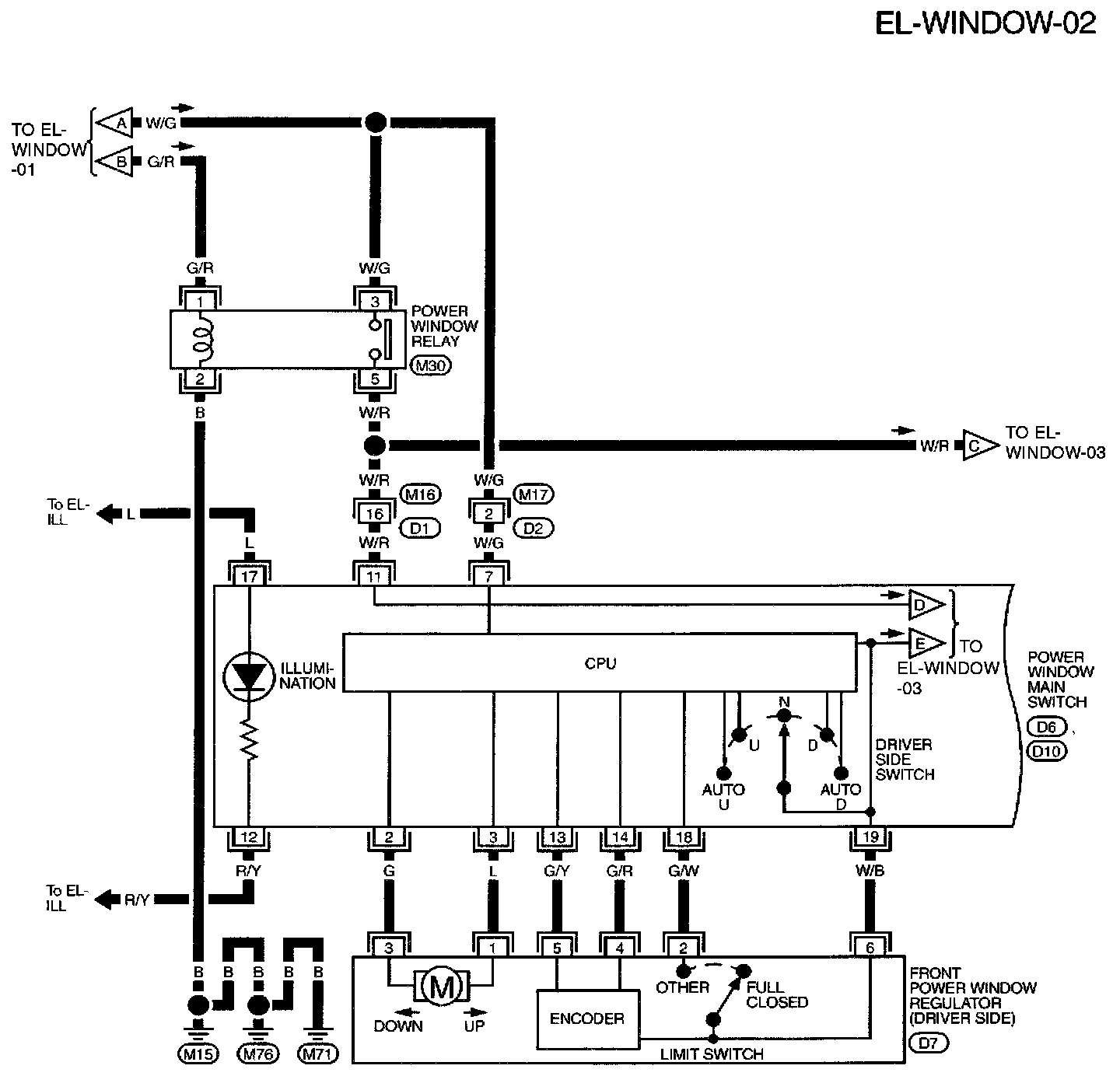

EL-WINDOW-02:

(Part 2 of 4)
Power Window Relay
Power Window Main Switch
Front Power Window Regulator (Driver Side)

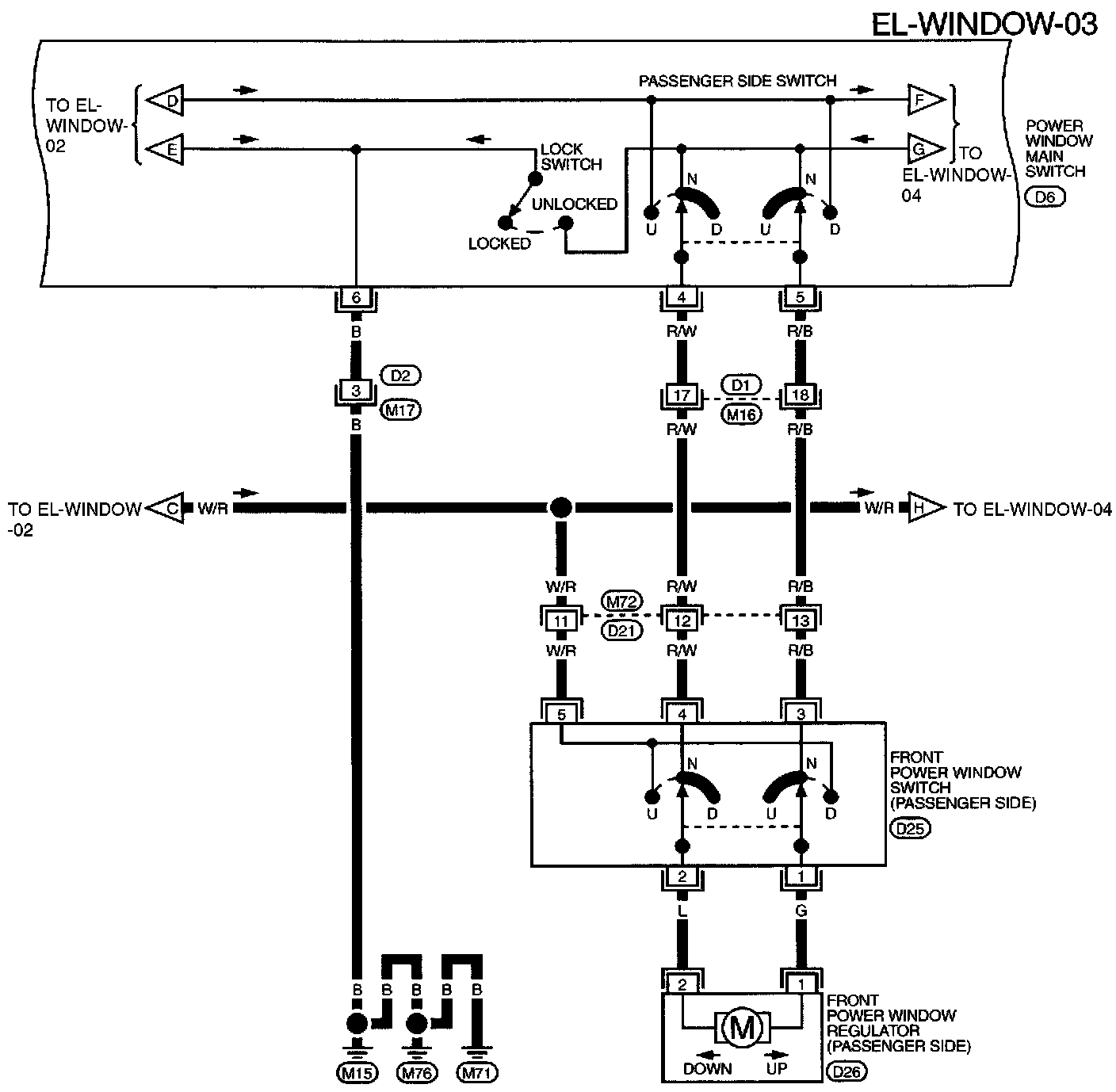

EL-WINDOW-03:

(Part 3 of 4)
Power Window Main Switch
Front Power Window Main Switch (Passenger Side)
Front Power Window Main Regulator (Passenger Side)

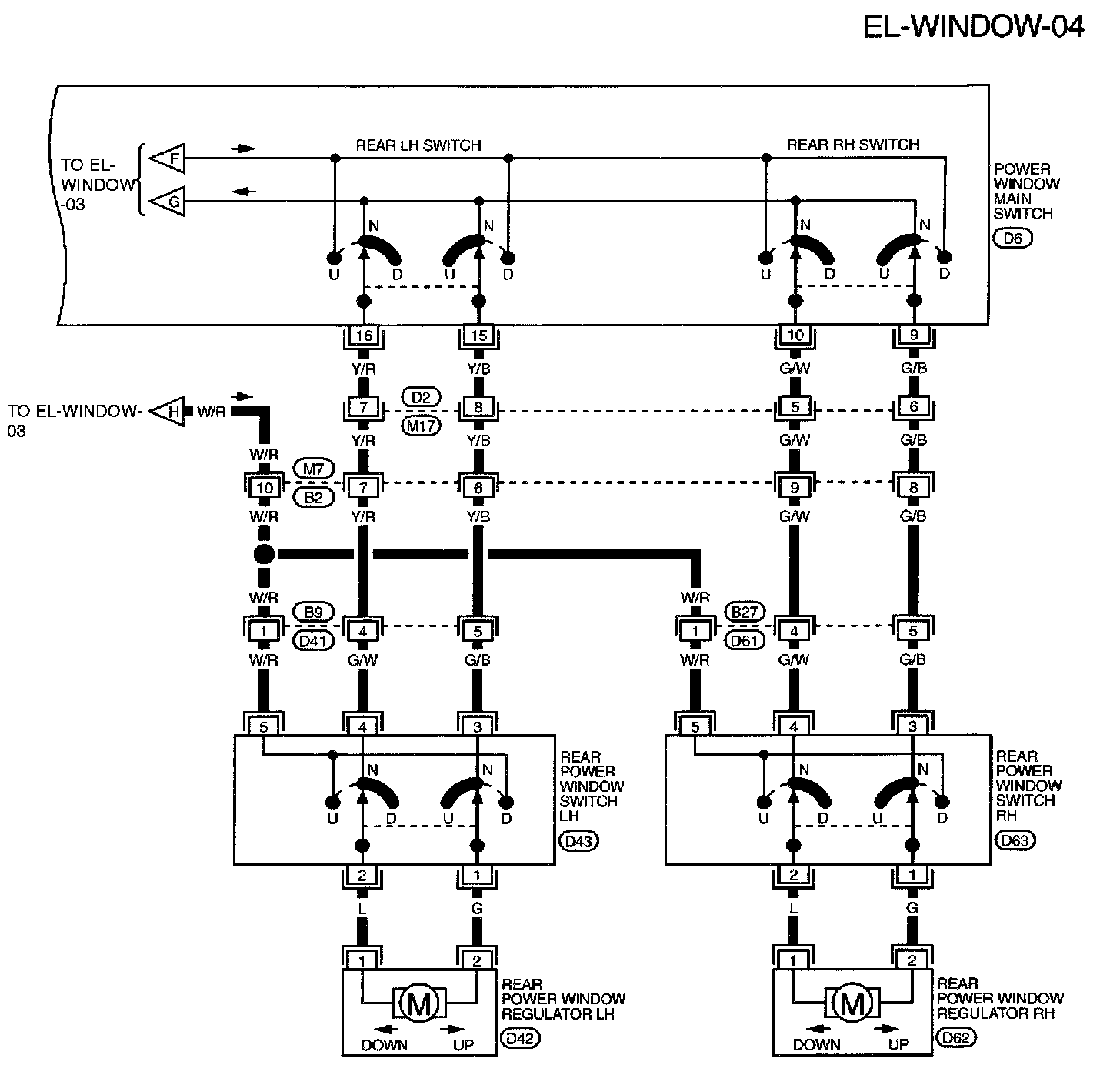

EL-WINDOW-04:

(Part 4 of 4)
Power Window Main Switch
Rear Power Window Switch LH
Rear Power Window Switch RH
Rear Power Window Regulator LH
Rear Power Window Regulator RH













Circuit Connectors

M6,E75 Connector Views:

M1,M2,M3,M4,M5,B1,E71,E72,E73 Connector Views:

E75, M2, M3 Super Multiple Junction (SMJ) and Fuse Block - Junction Box (J/B) Terminal Arrangement
