Procedure 9

9. A/T Does Not Shift: D1 -> D2 Or Does Not Kickdown: D4 -> D2
SYMPTOM: A/T does not shift from D1 at the specified speed. A/T does not shift from D4 to D2 when depressing accelerator pedal fully at the specified speed.

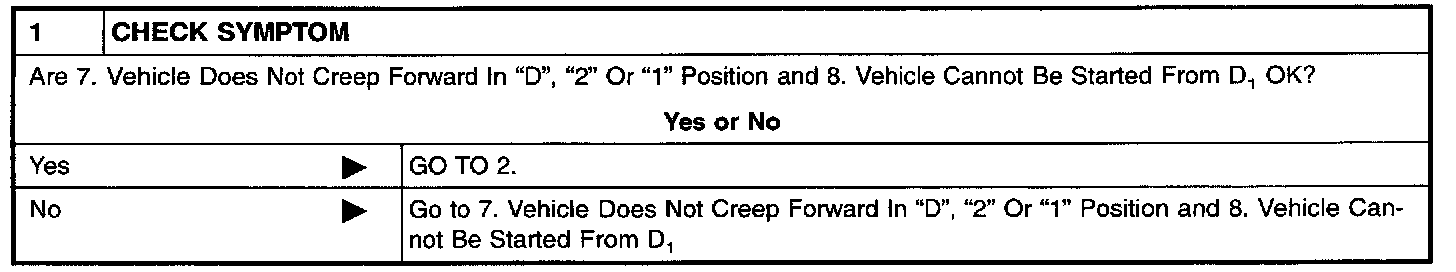

Part 1 of 8

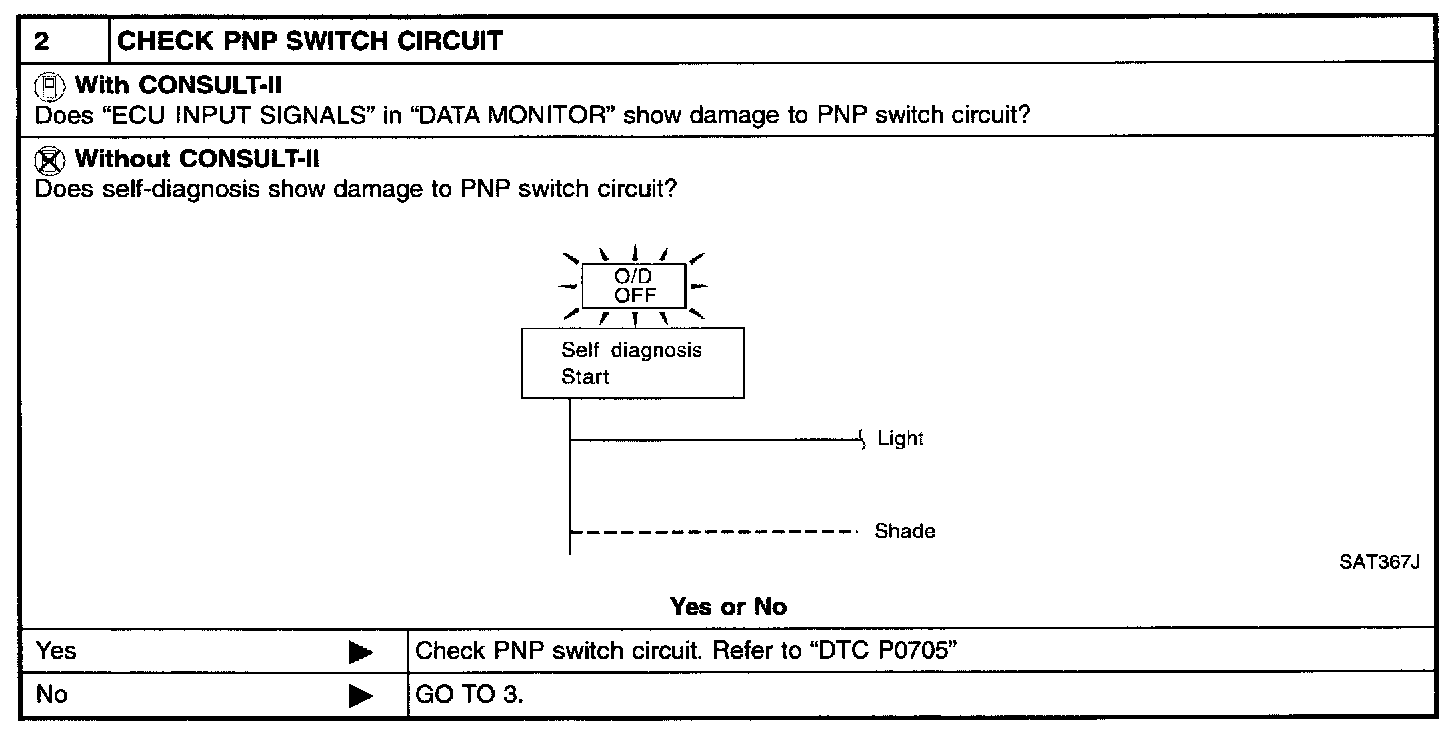

Part 2 of 8

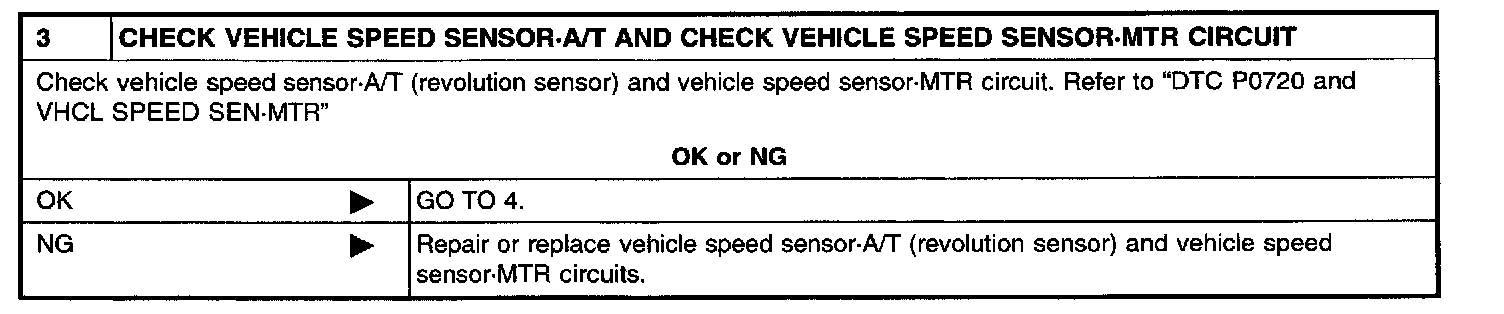

Part 3 of 8

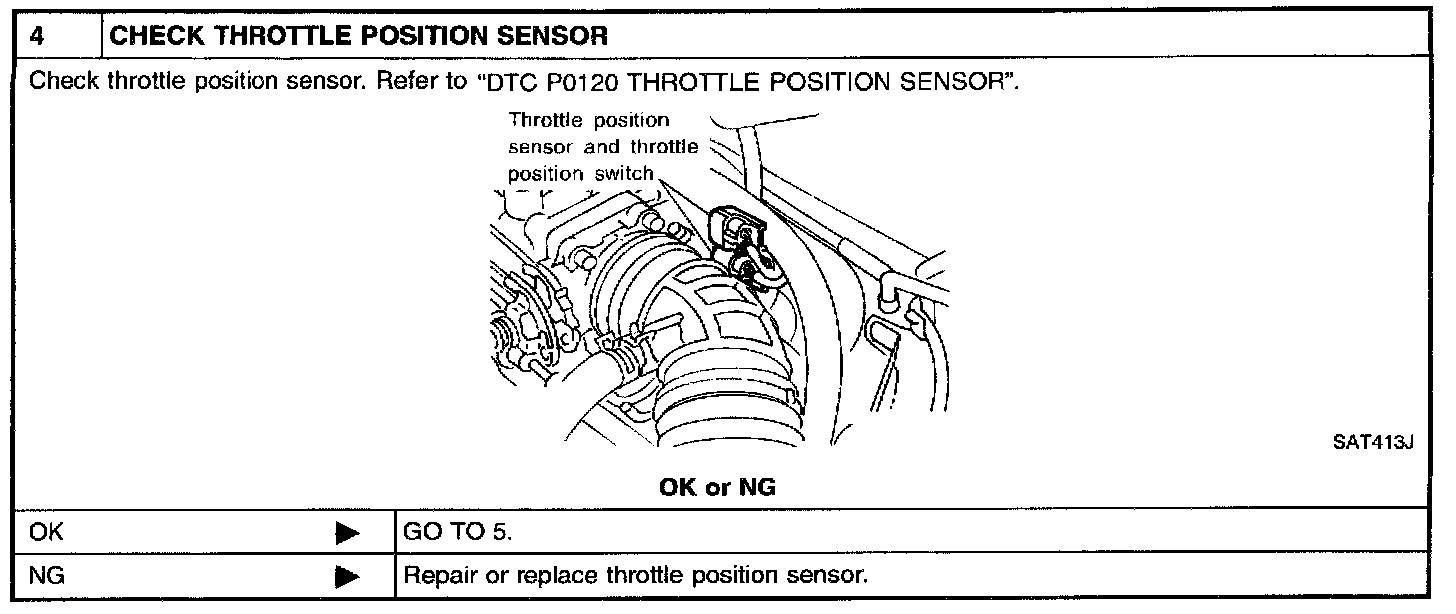

Part 4 of 8

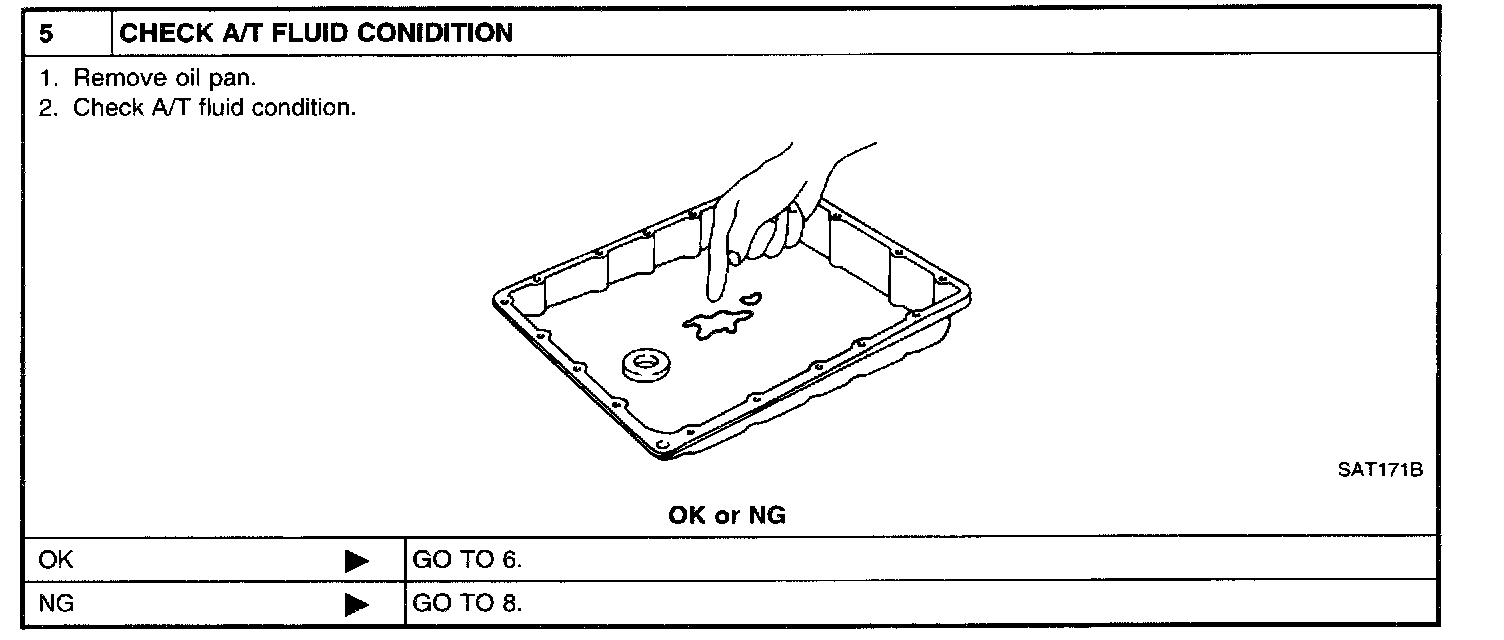

Part 5 of 8

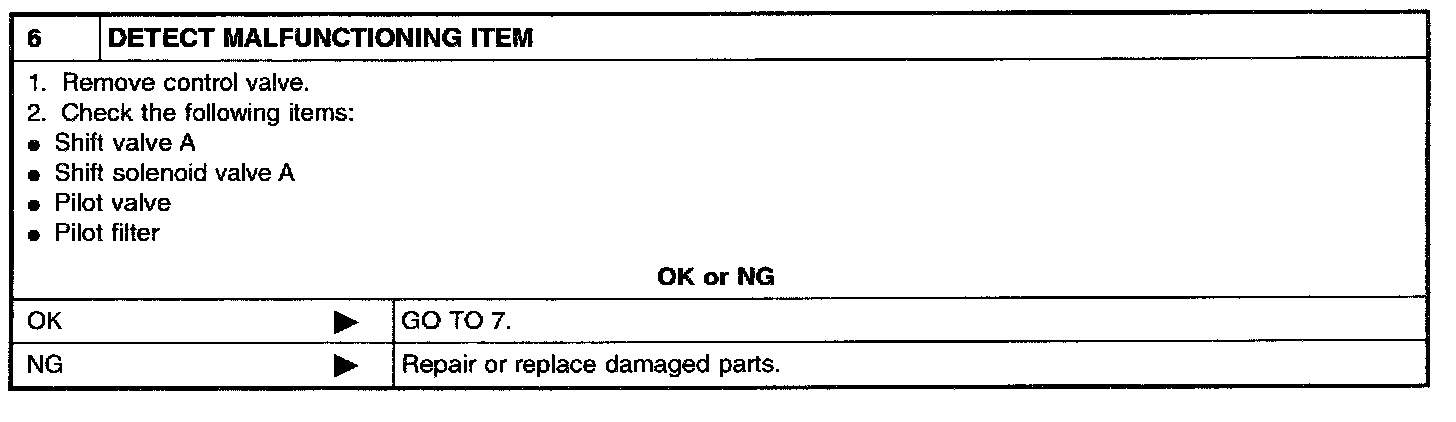

Part 6 of 8

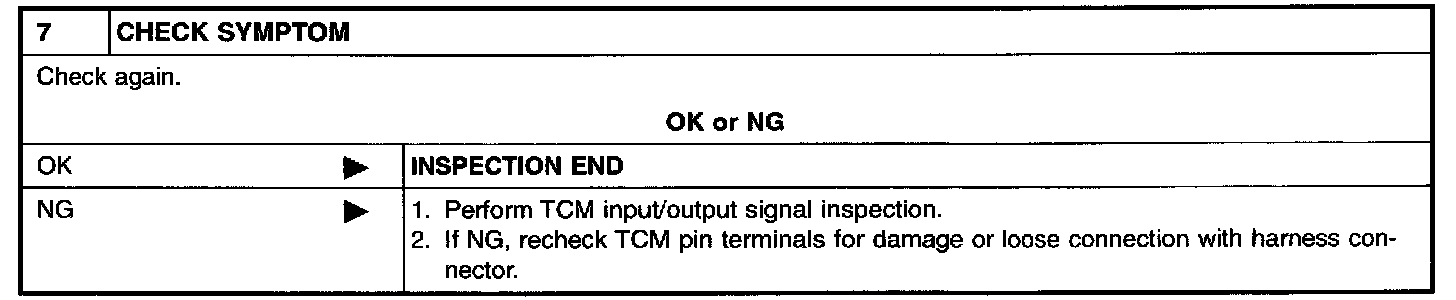

Part 7 of 8

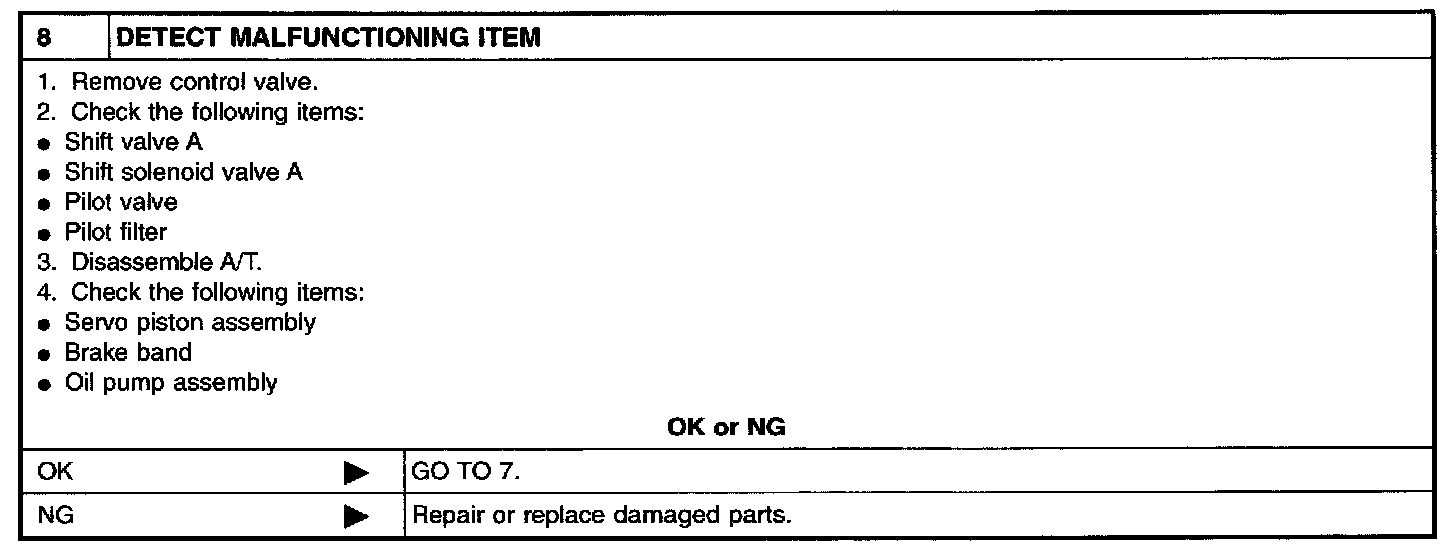

Part 8 of 8
