Procedure 2

2. Engine Cannot Be Started In "P" and "N" Position
SYMPTOM:
- Engine cannot be started with selector lever in "P" or "N" position.
- Engine can be started with selector lever in "D", "2", "1" or "R" position.

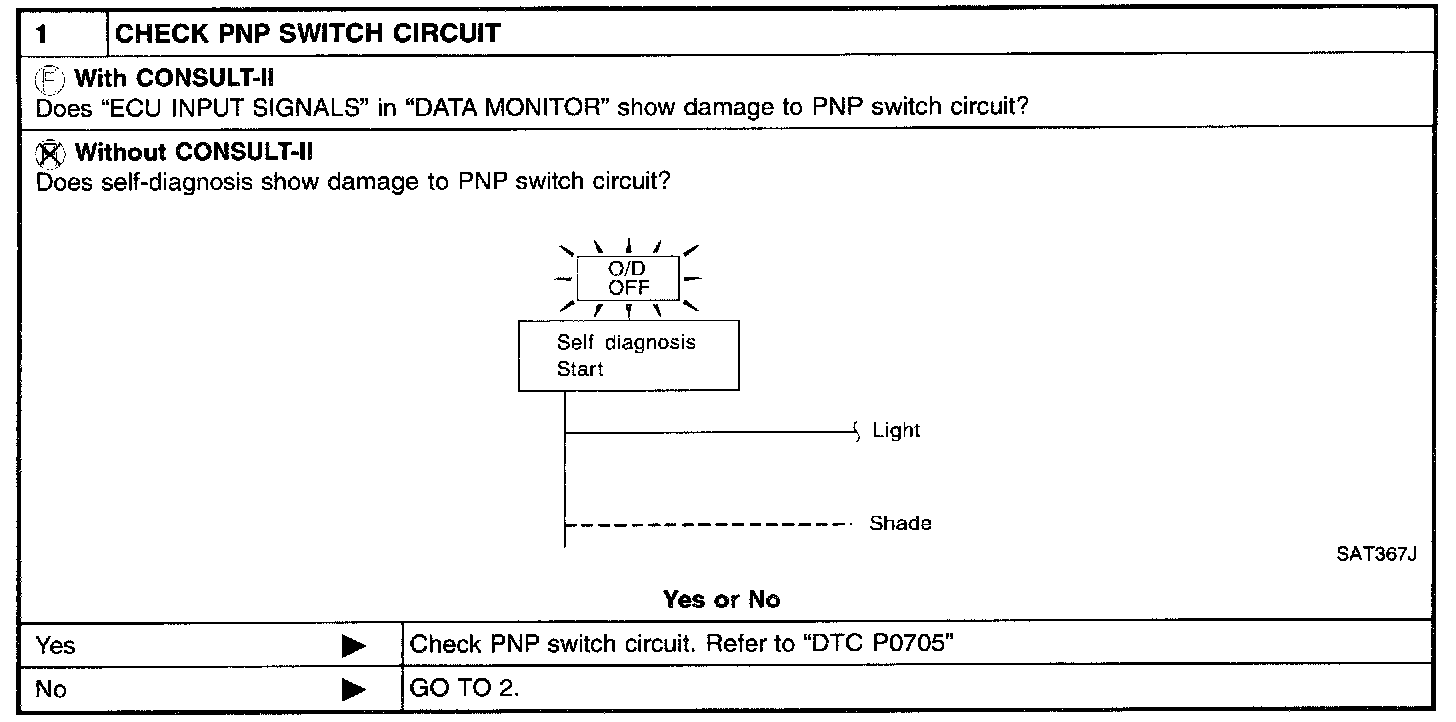

Part 1 of 3





Part 2 of 3

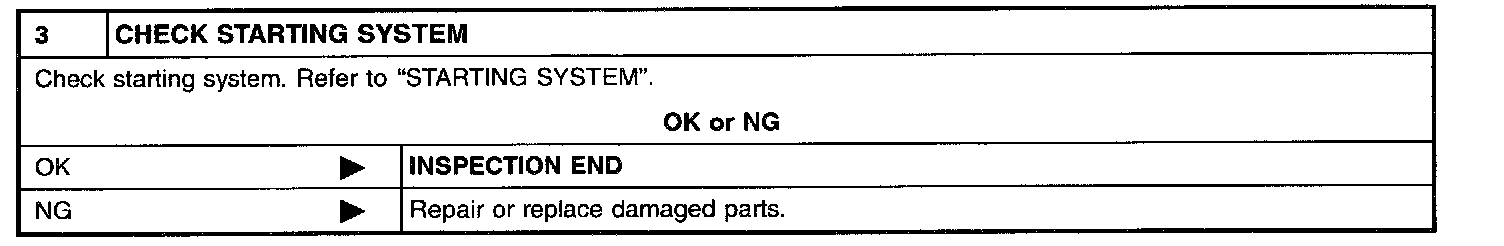

Part 3 of 3
