Batt/Fluid Temp SEN (Fluid Temp Sens. Cir. and TCM Pwr. Source)
DTC BATT/FLUID TEMP SEN (A/T FLUID TEMP SENSOR CIRCUIT AND TCM POWER SOURCEDescription
The A/T fluid temperature sensor detects the A/T fluid temperature and sends a signal to the TCM.

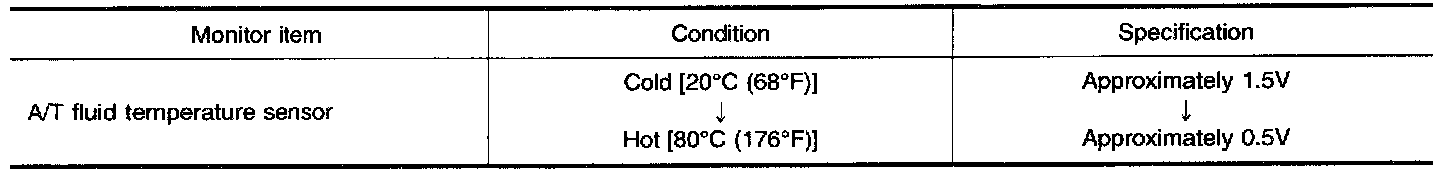

CONSULT-II REFERENCE VALUE IN DATA MONITOR MODE
Remarks: Specification data are reference values.
TCM TERMINALS AND REFERENCE VALUE
Remarks: Specification data are reference values.

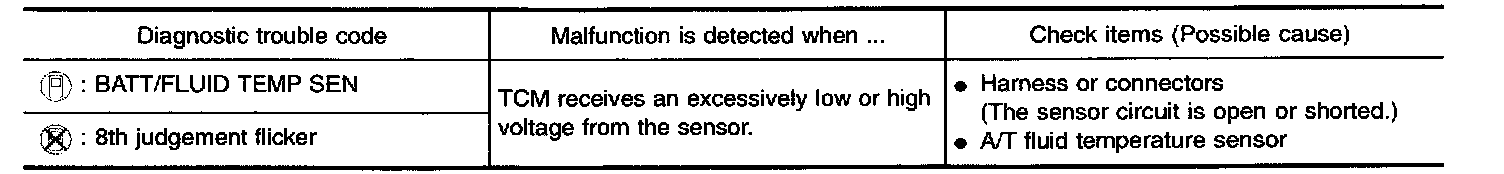

ON BOARD DIAGNOSIS LOGIC
DIAGNOSTIC TROUBLE CODE (DTC) CONFIRMATION PROCEDURE
After the repair, perform the following procedure to confirm the malfunction is eliminated.
With CONSULT-II
1) Start engine.

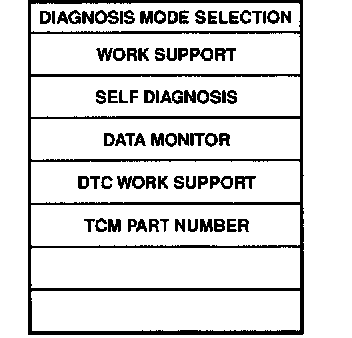

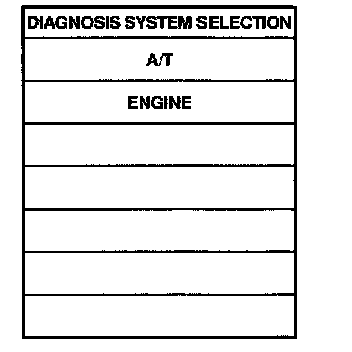

2) Select "DATA MONITOR" mode for "A/T" with CONSULT-II.
3) Drive vehicle under the following conditions:
Selector lever in "D", vehicle speed higher than 20 km/h (12 MPH).
Without CONSULT-II
1) Start engine.
2) Drive vehicle under the following conditions:
Selector lever in "D", vehicle speed higher than 20 km/h (12 MPH).

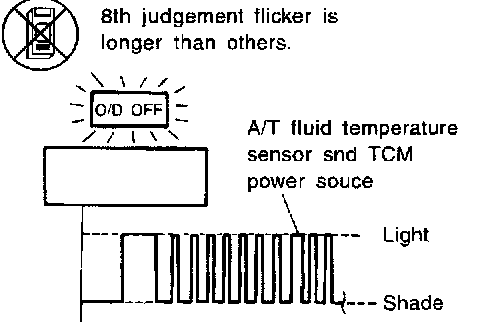

3) Perform self-diagnosis.
Refer to TCM SELF-DIAGNOSTIC PROCEDURE (No Tools).

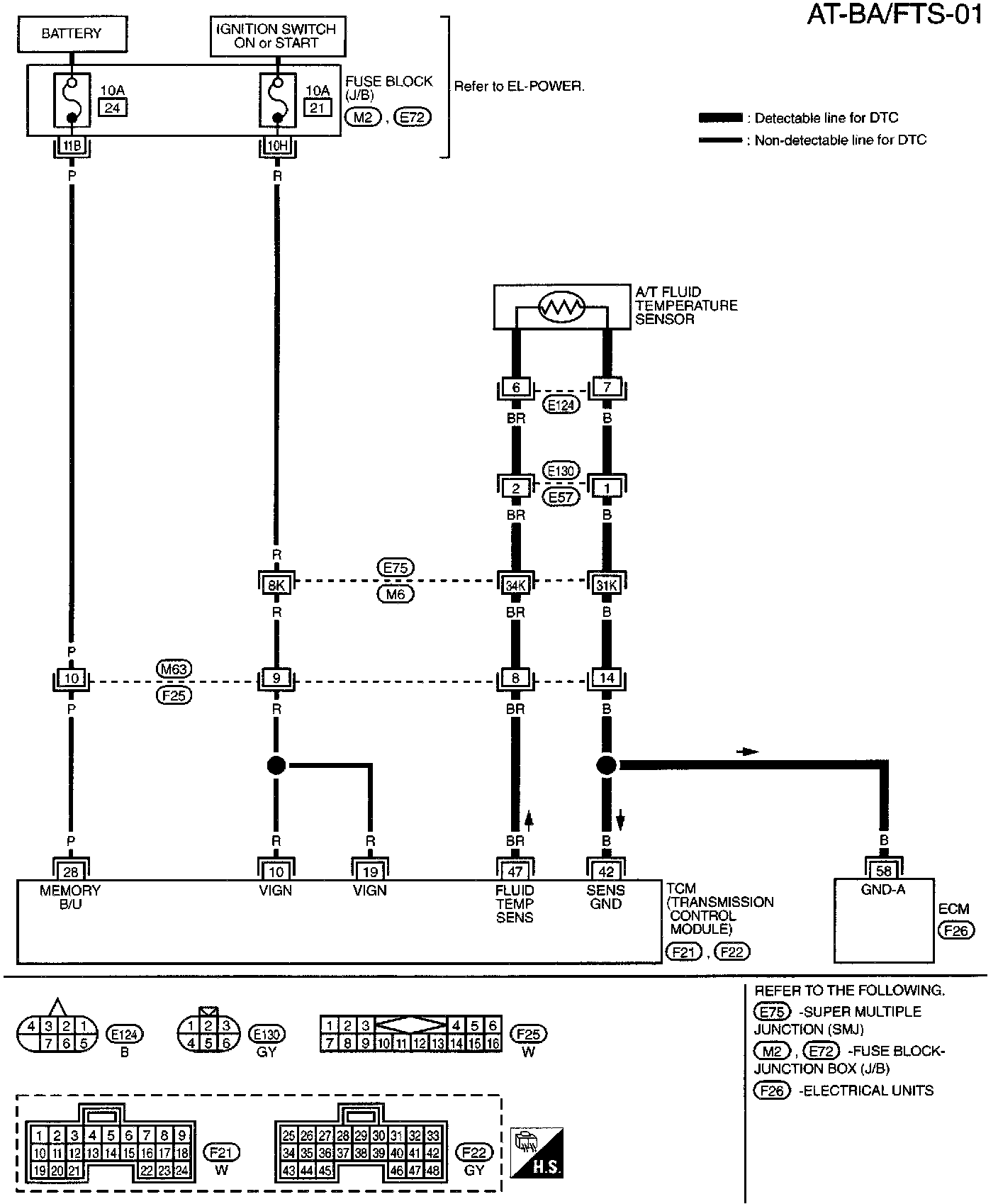

Wiring Diagram - AT - BA/FTS
Diagnostic Procedure

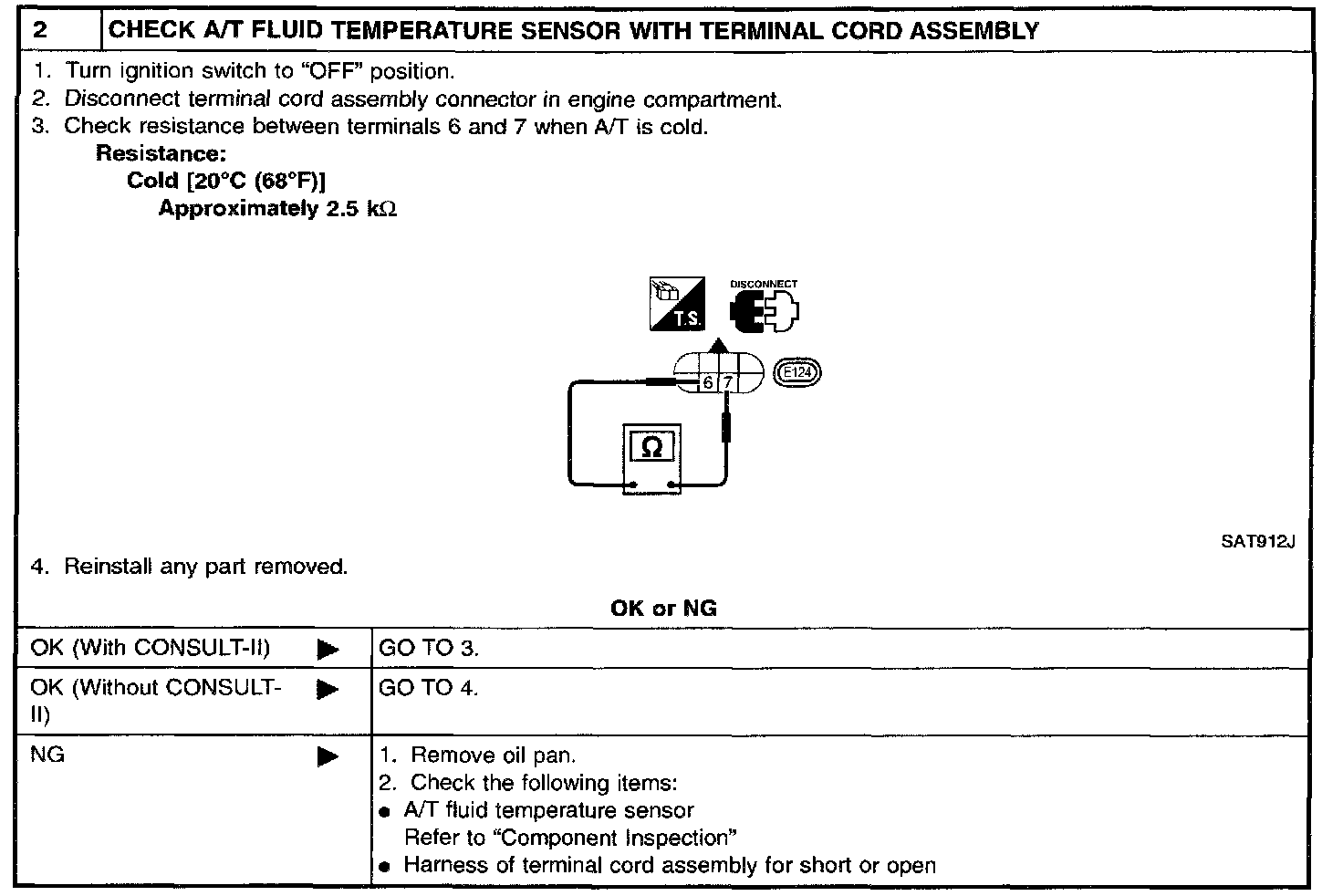

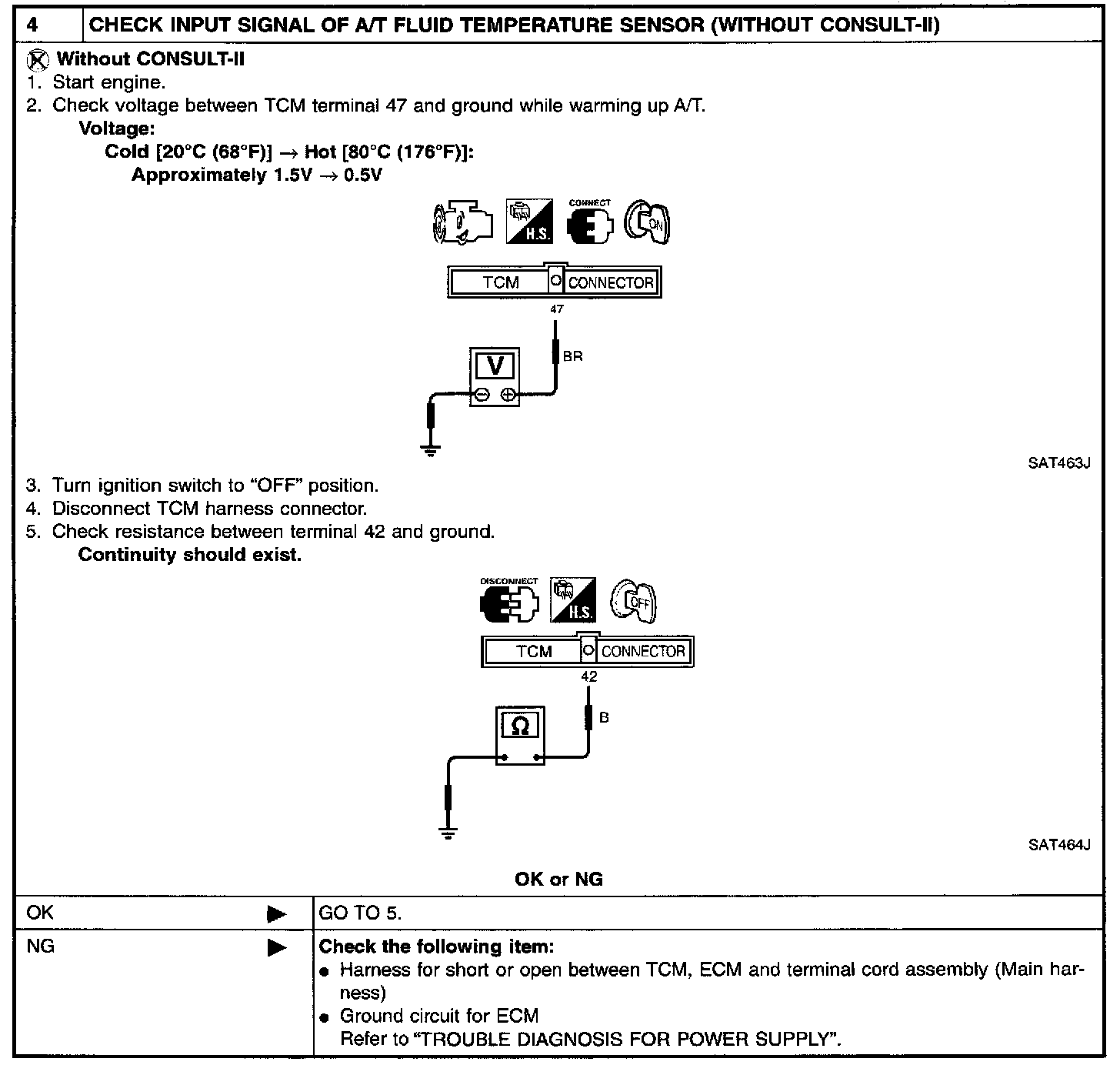

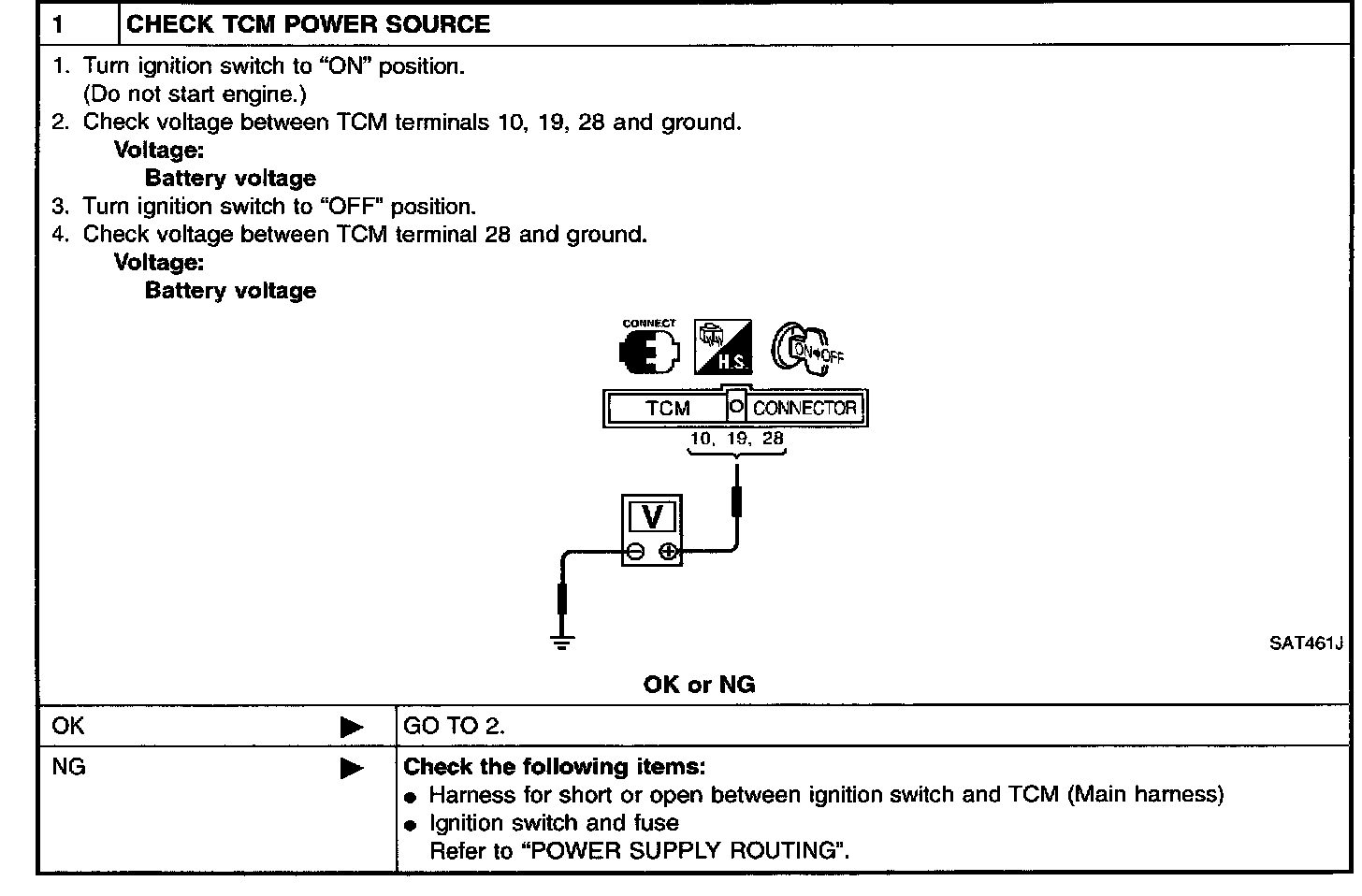

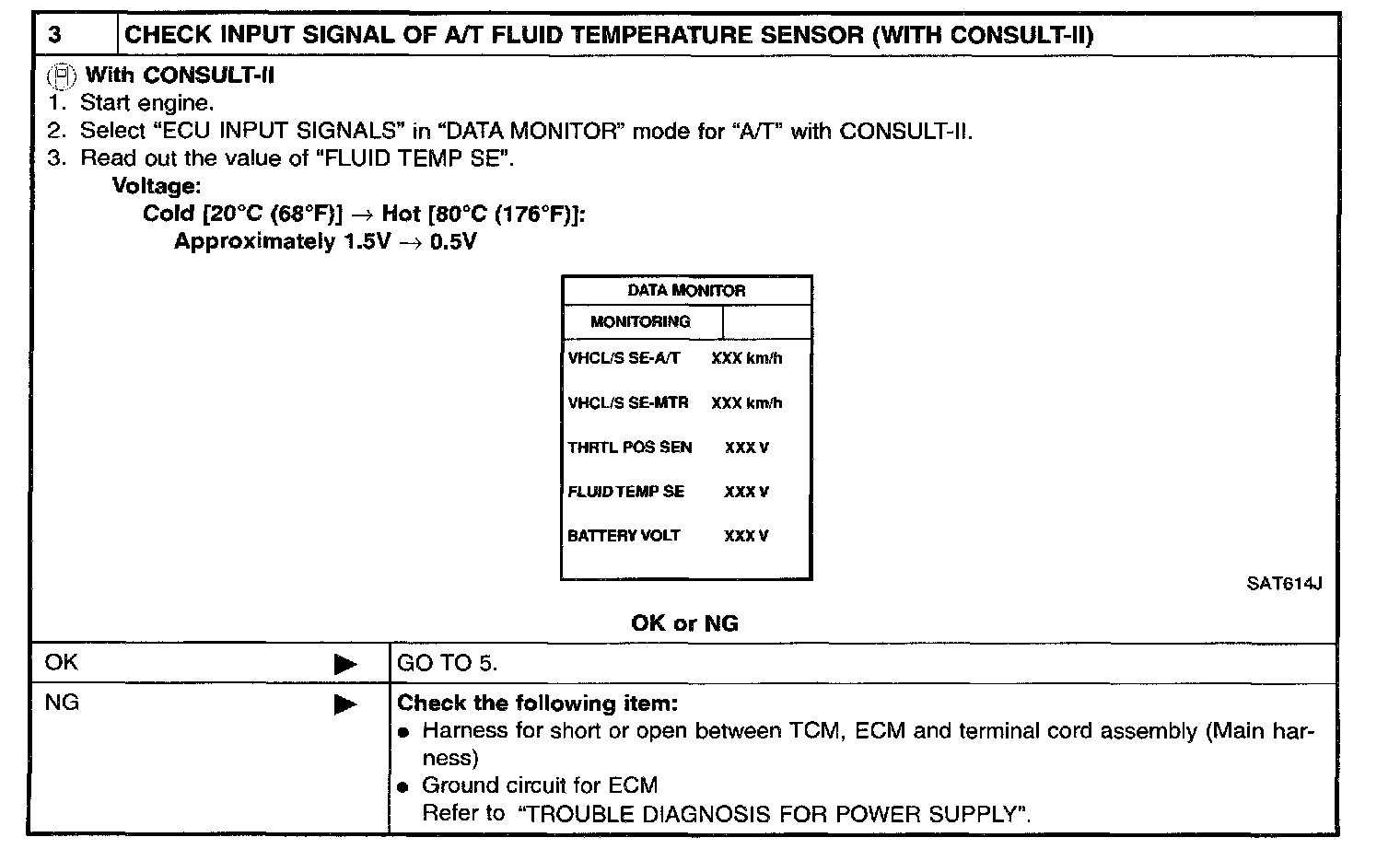

Part 1 of 5
Part 2 of 5
Part 3 of 5
Part 4 of 5

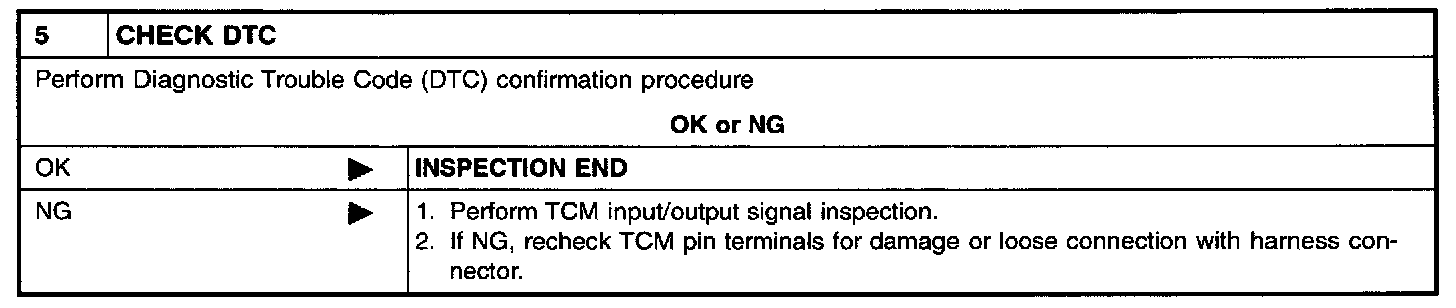

Part 5 of 5
Component Inspection

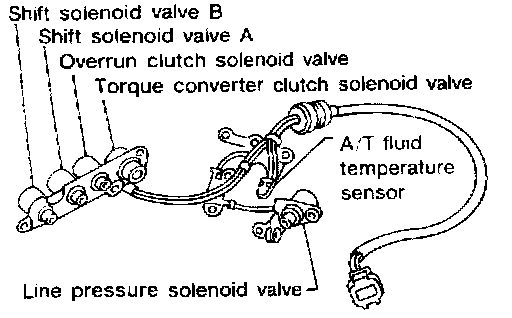

A/T FLUID TEMPERATURE SENSOR
- For removal, refer to Valve Body; Service and Repair.

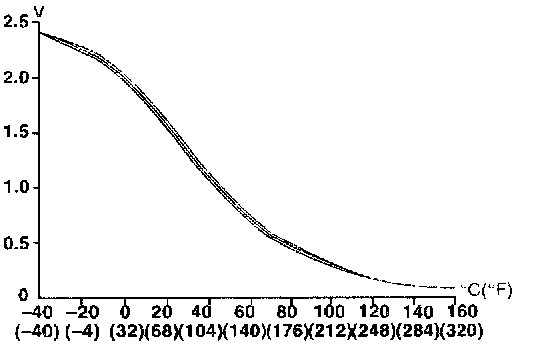

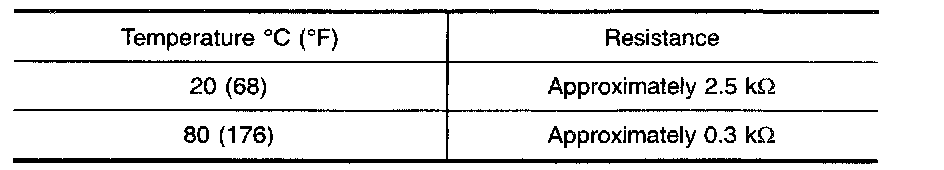

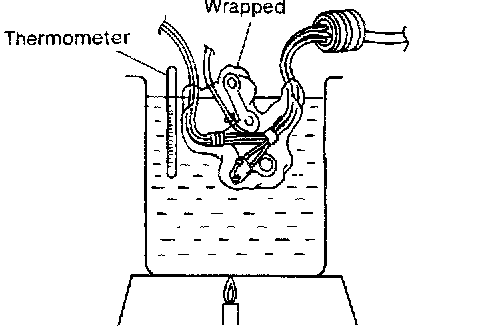

- Check resistance between two terminals while changing temperature as shown.
