Seals and Gaskets: Service and Repair

DIFFERENTIAL OIL SEAL





1. Drain gear oil from transaxle.
2. Remove drive shafts.

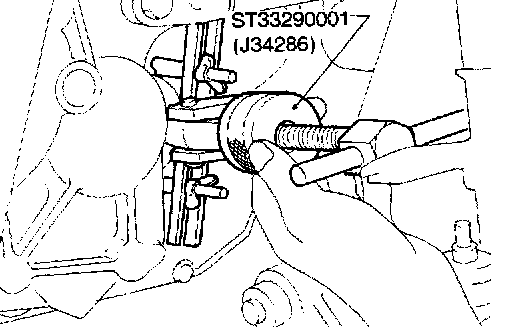

3. Remove differential oil seal.

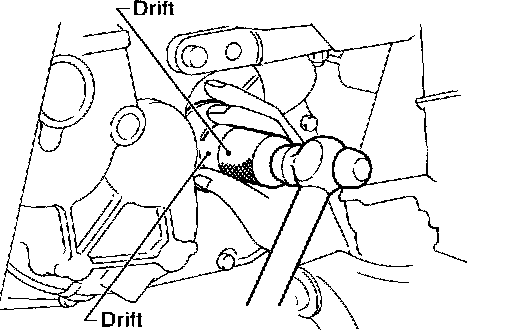

4. Install differential oil seal.
- Apply multi-purpose grease to seal lip of oil seal before installing.








5. Install drive shafts.

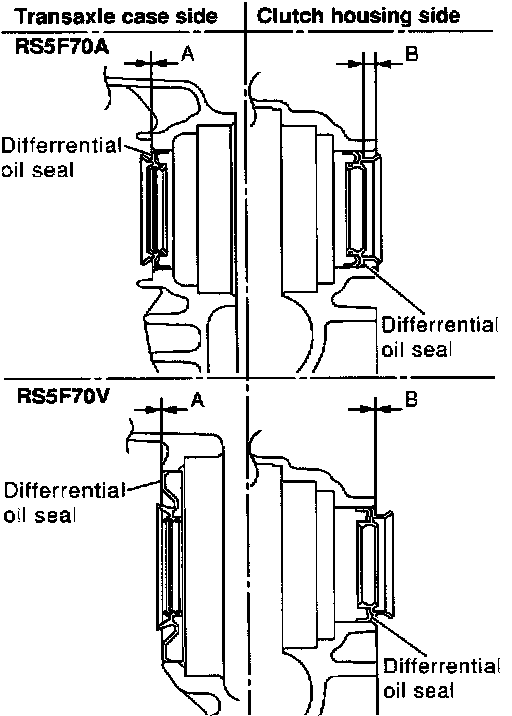

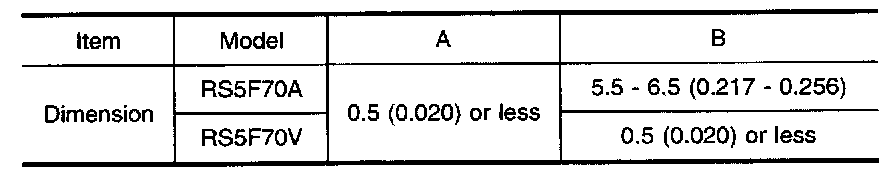

- Install differential oil seal so that dimension "A" and "B" are within specifications.
