Mainshaft: Application and ID

AVAILABLE C-RING

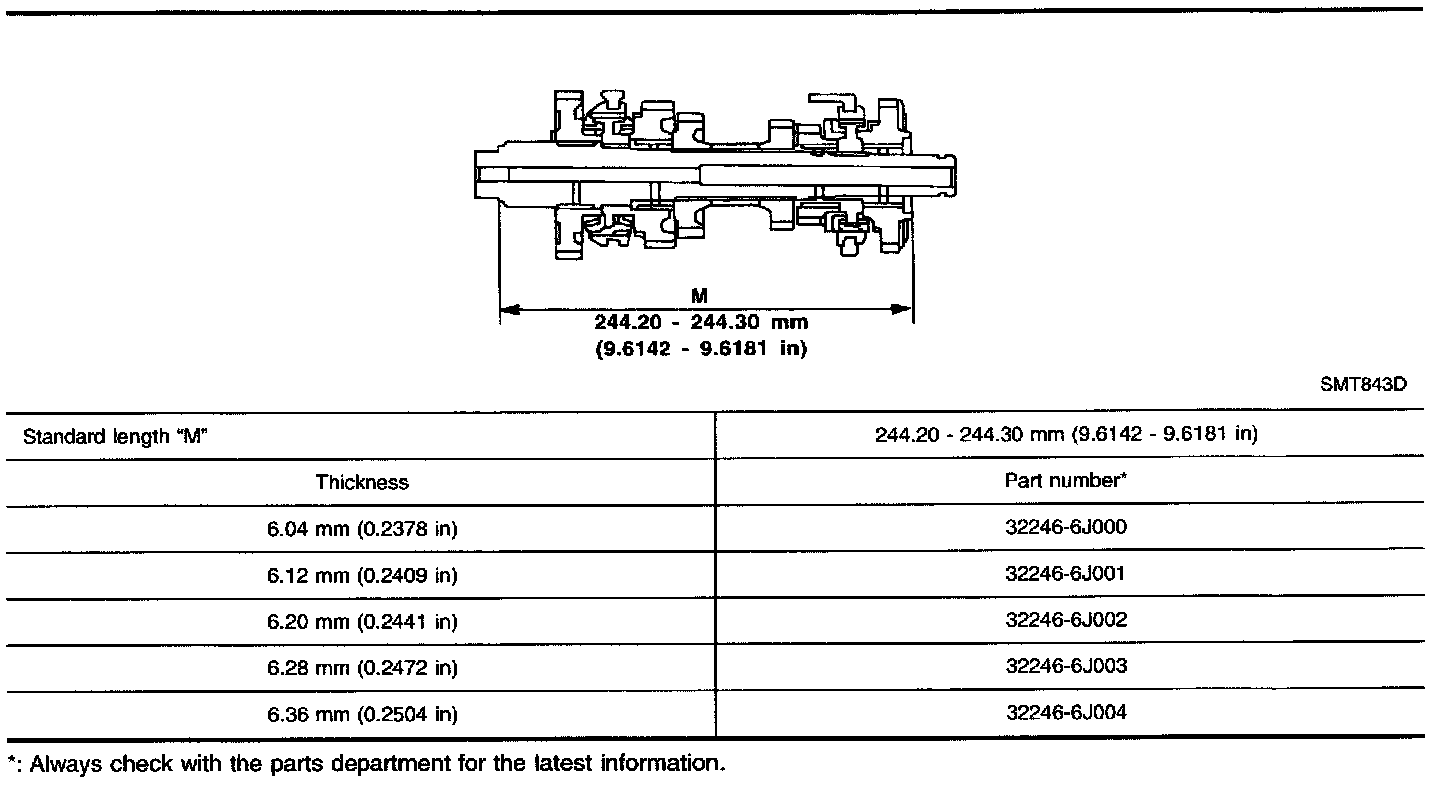

MAINSHAFT C-RING

AVAILABLE ADJUSTING SHIMS





MAINSHAFT ADJUSTING SHIM

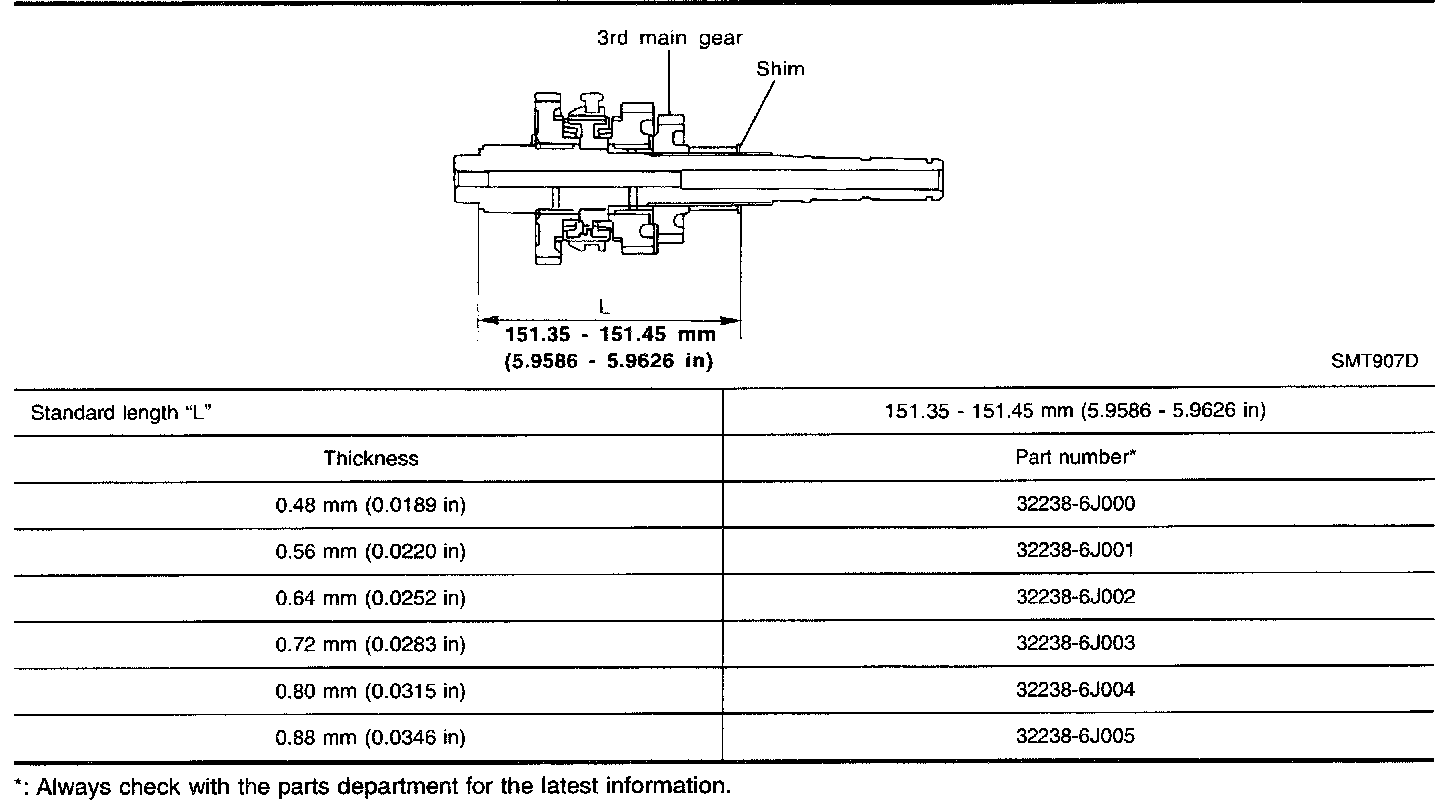

MAINSHAFT REAR BEARING ADJUSTING SHIM

AVAILABLE THRUST WASHER





MAINSHAFT THRUST WASHER
