Home >> Infiniti >> 2000 >> G20 L4-2.0L (SR20DE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Manual Transmission/Transaxle >> Differential >> Application and ID

Differential: Application and ID

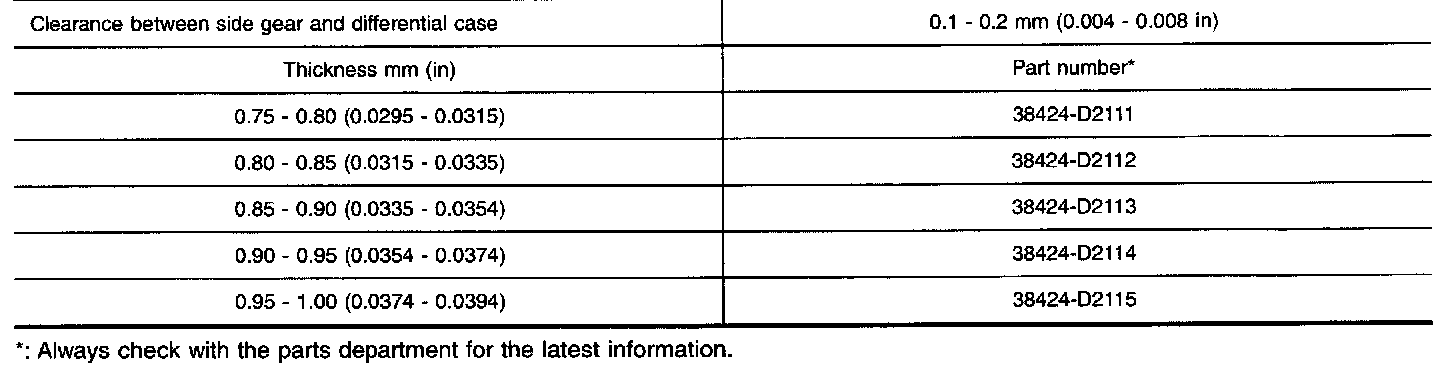

AVAILABLE WASHER





DIFFERENTIAL SIDE GEAR THRUST WASHER

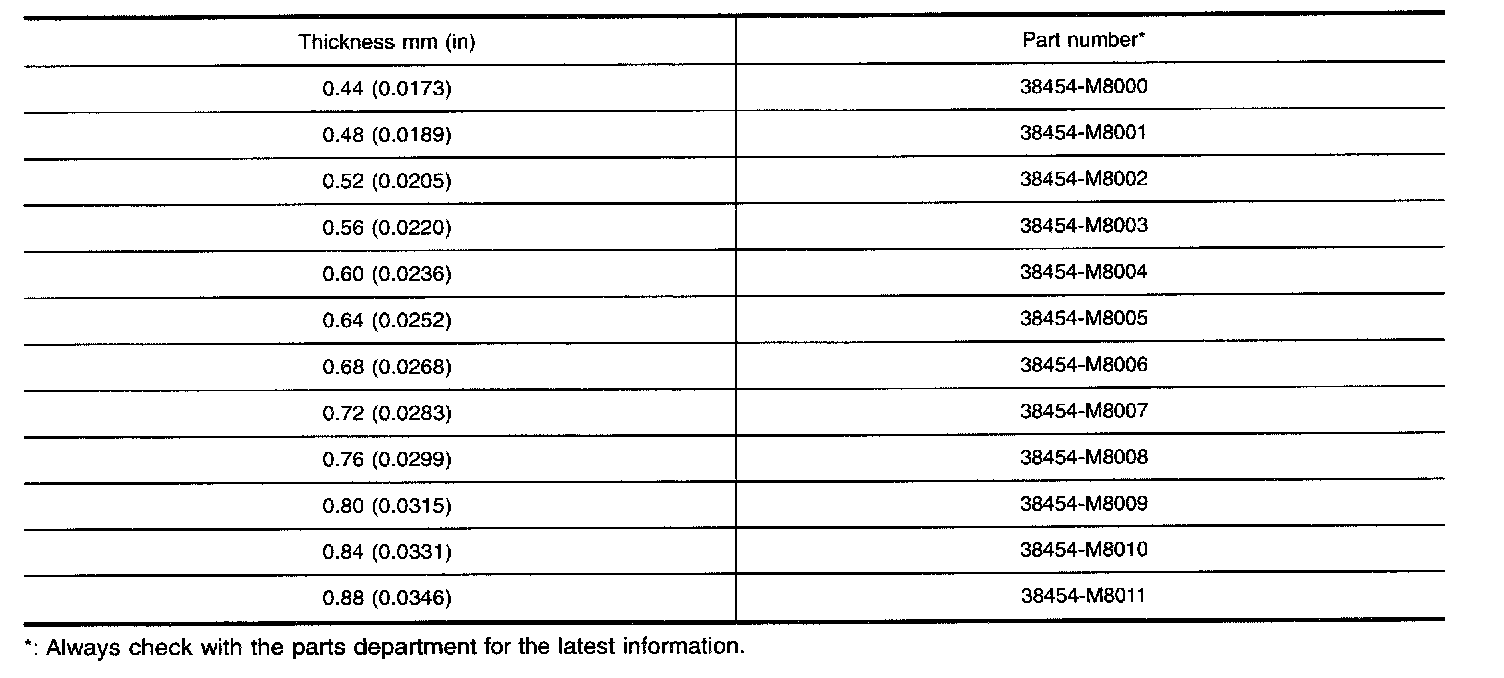

AVAILABLE SHIMS - ADJUSTING SHIM





DIFFERENTIAL SIDE BEARING ADJUSTING SHIMS
