Checking Steering Wheel Play

Checking Steering Wheel Play

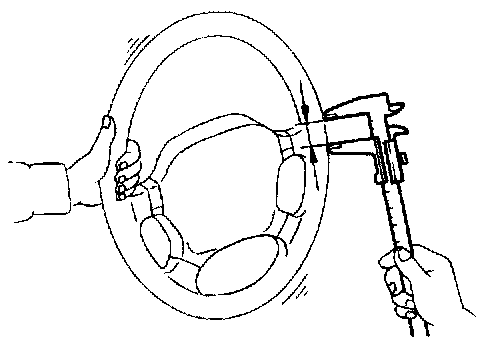

^ With wheels in a straight-ahead position, check steering wheel play.
Steering wheel play: 35 mm (1.38 inch) or less
- If it is not within specification, check the following for loose or worn components.
Steering gear assembly
Steering column
Front suspension and axle

Checking Neutral Position on Steering Wheel
PRE-CHECKING





- Make sure that wheel alignment is correct.
Wheel alignment: Refer to Alignment; Specifications.
- Verify that the steering gear is centered before removing the steering wheel.

CHECKING

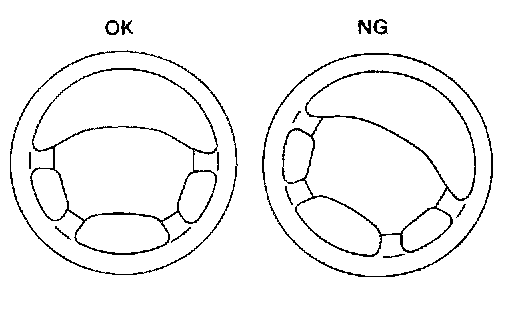

1. Check that the steering wheel is in the neutral position when driving straight ahead.
2. If it is not in the neutral position, remove the steering wheel and reinstall it correctly.
3. If the neutral position is between two teeth, loosen tie-rod lock nuts. Turn the tie-rods by the same amount in opposite directions on both left and right sides.
