Wiring Diagrams - A/T Models

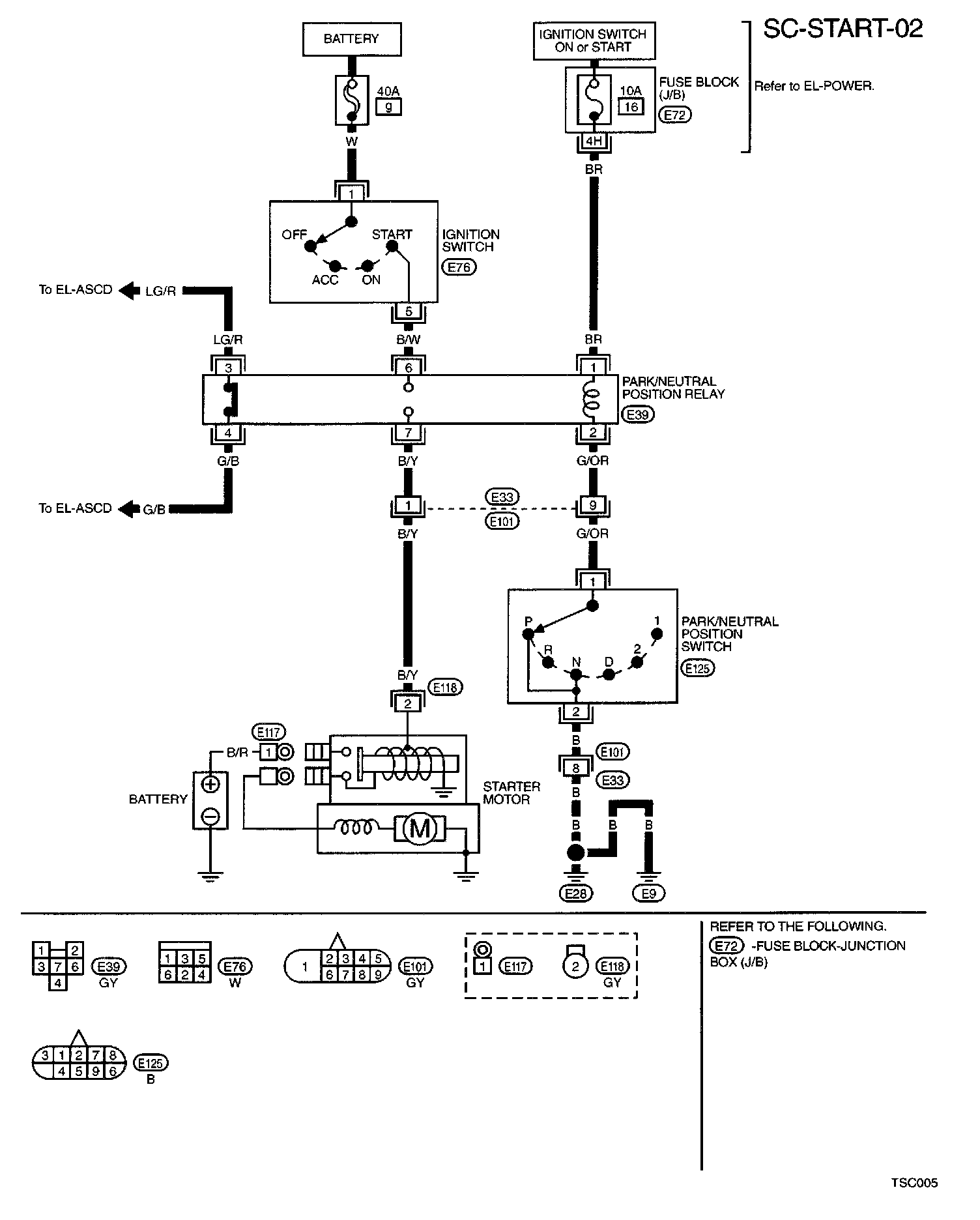

SC-START-02:



E72 Fuse Block Junction Box (J/B) Terminal Arrangements:

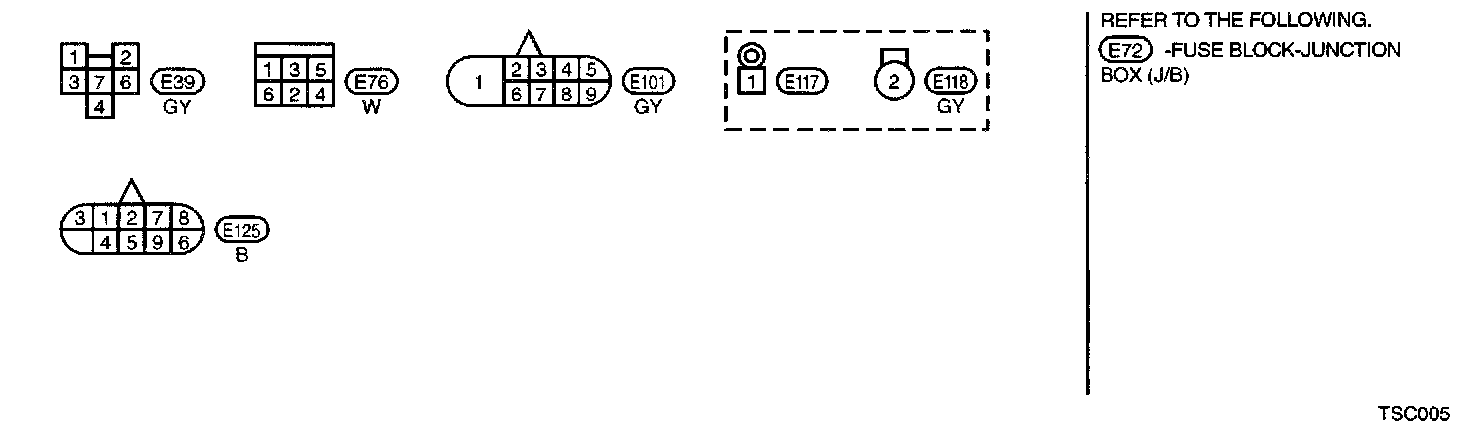

M1,M2,M3,M4,M5,B1,E71,E72,E73 Connector Views:
