Alternator: Service and Repair

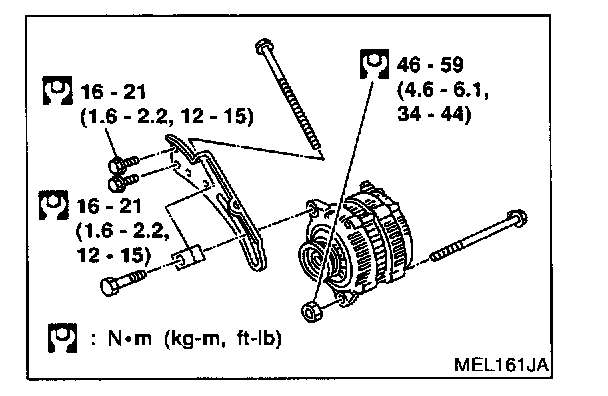

1. Remove A/C compressor assembly fixing bolt and move the compressor assembly under the vehicle.
2. Remove alternator adjusting bar.
3. Remove alternator bracket with alternator.
4. Pull out alternator assembly under the vehicle.
5. Remove alternator pivot bolt from bracket.
6. Install in the reverse order of removal.
