Manual Transaxle

GENERAL SPECIFICATIONS

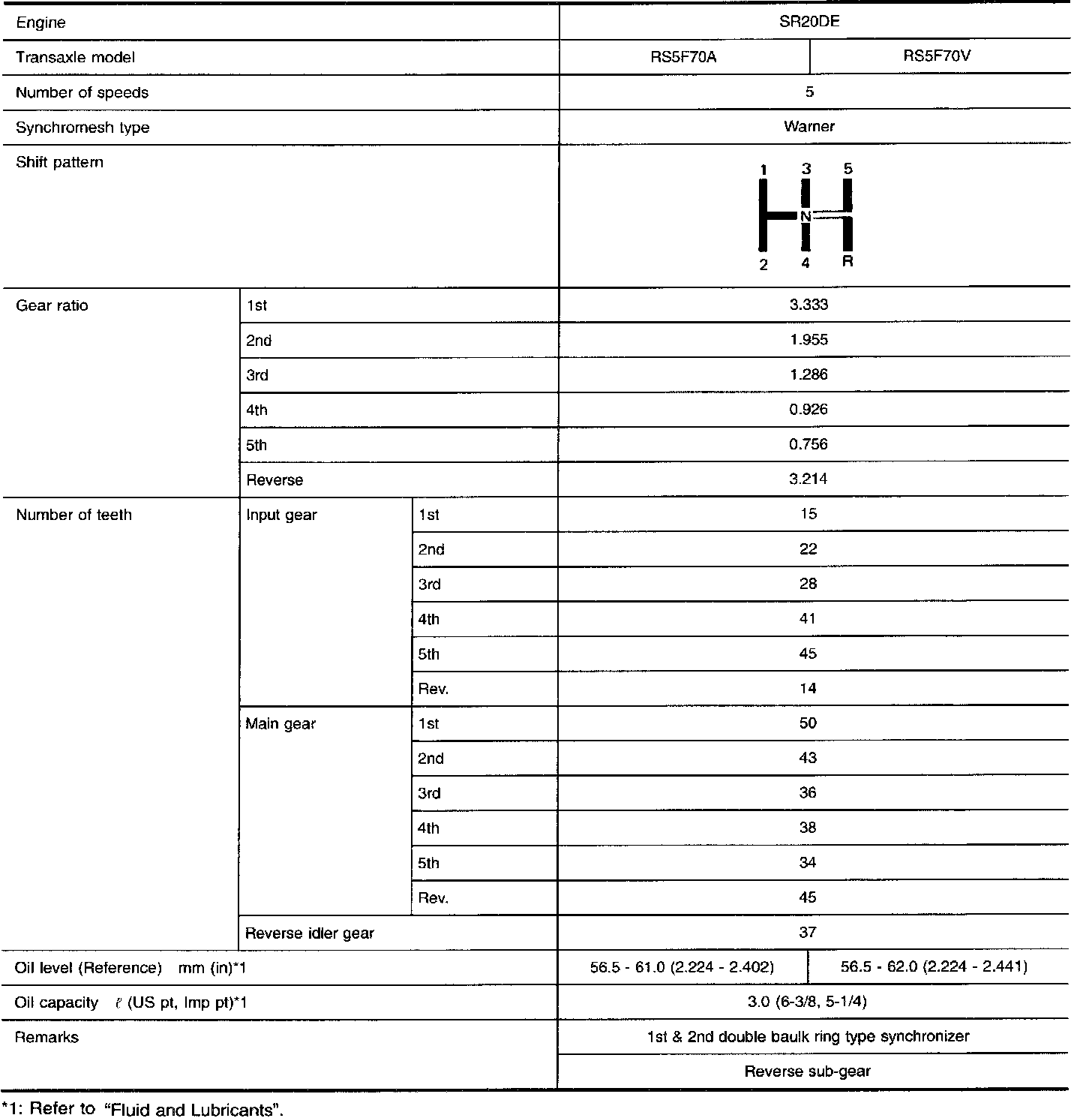

TRANSAXLE

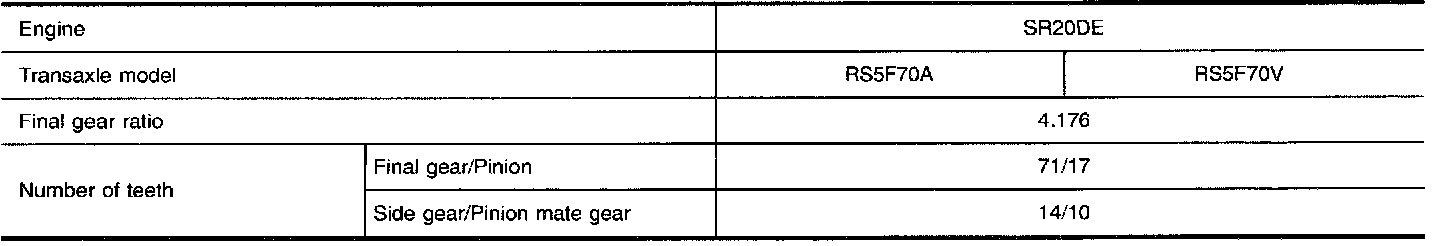

FINAL GEAR

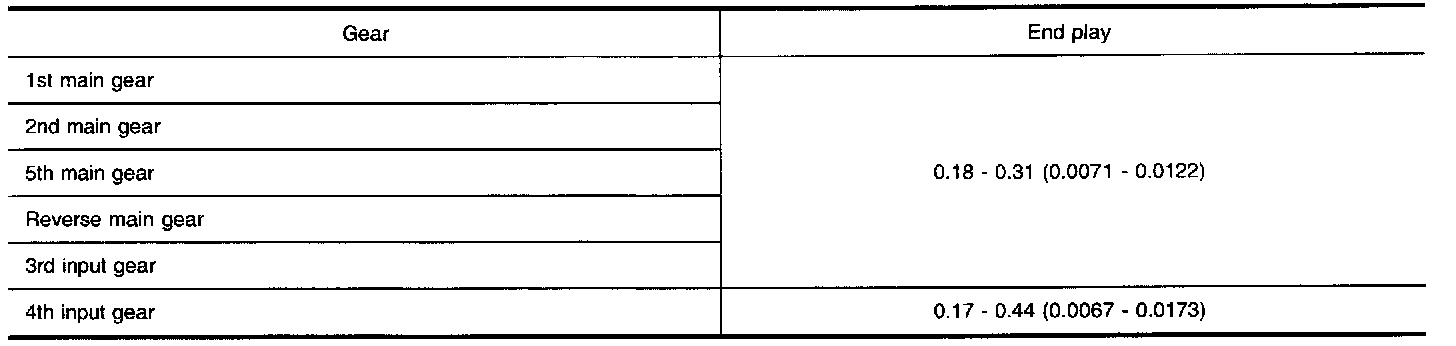

GEAR END PLAY

CLEARANCE BETWEEN BAULK RING AND GEAR

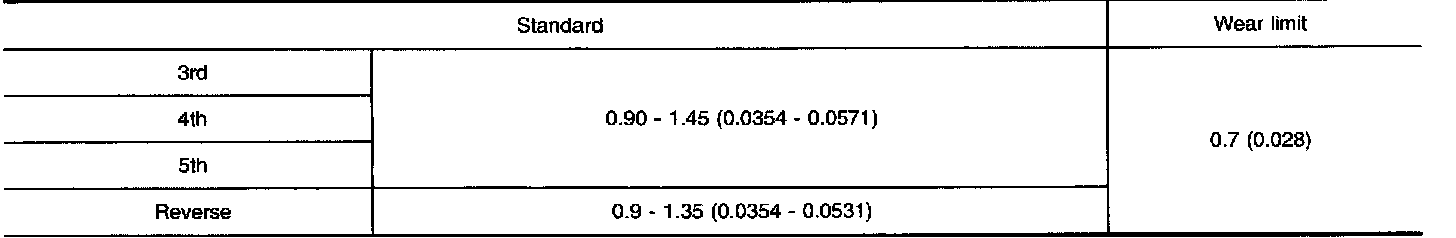

3RD, 4TH, 5TH, REVERSE BAULK RING

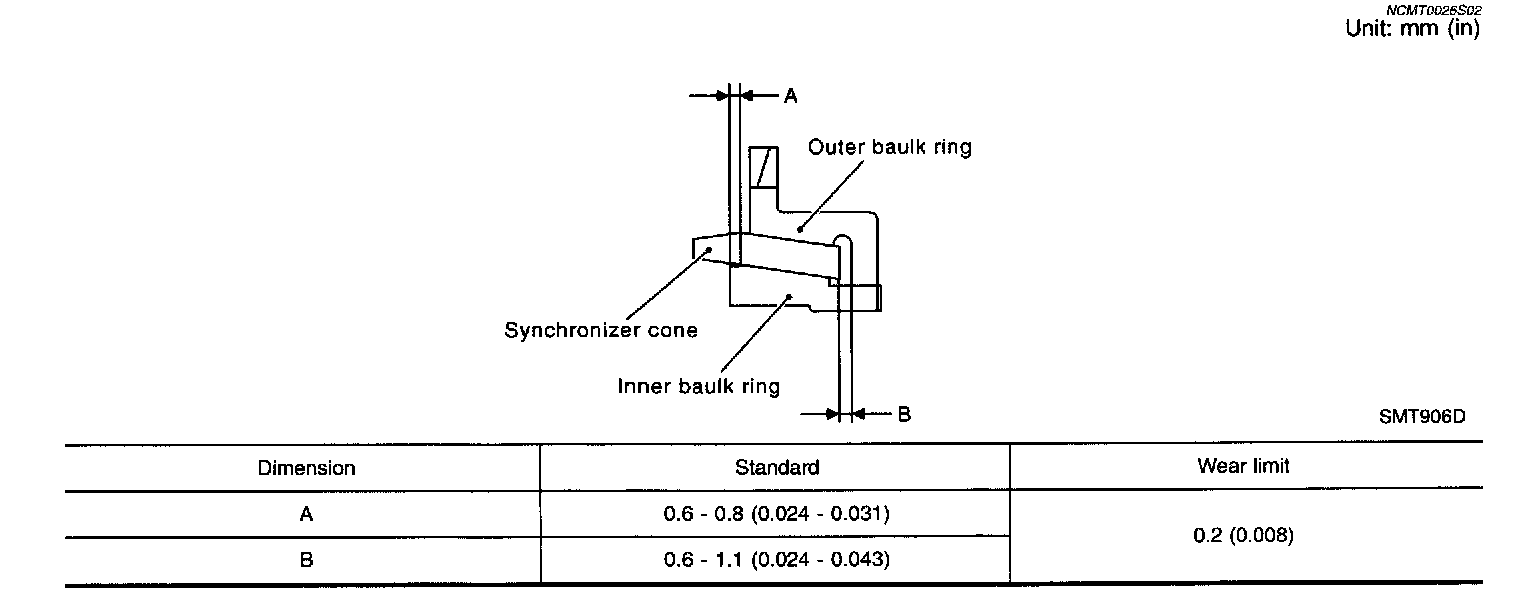

1ST AND 2ND BAULK RING

DIFFERENTIAL SIDE BEARING PRELOAD AND ADJUSTING SHIM





BEARING PRELOAD
