Camshaft

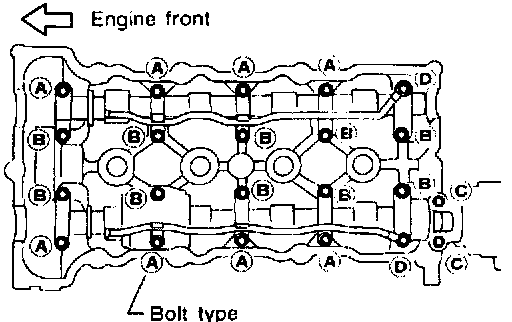

^ Arrange bolts (Size and length).
A: M6 x 53.8 mm (2.12 inch)
B: M6 x 37 mm (1.46 inch)
C: M8 x 35 mm (1.38 inch)
D: M6 x 64 mm (2.52 inch)








^ Tightening procedure
STEP 1:
RH camshaft
Tighten bolts 9 - 10 in that order then tighten bolts 1 - 8 in numerical order.
2 Nm (0.2 kg-m, 17 inch lbs.)
LH camshaft
Tighten bolts 11 - 12 in that order then tighten bolts 1 - 10 in numerical order.
2 Nm (0.2 kg-m, 17 inch lbs.)
STEP 2:
Tighten bolts in numerical order.
6 Nm (0.6 kg-m, 52 inch lbs.)
STEP 3:
Tighten bolts in numerical order.
Bolt type A B D
9.8 - 11.8 Nm (1.0 - 1.2 kg-m, 7.2 - 8.7 ft. lbs.)
Bolt type C
18 - 25 Nm (1.8 - 2.6 kg-m, 13 - 19 ft. lbs.)
