Home >> Infiniti >> 2000 >> G20 L4-2.0L (SR20DE) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Fuel Delivery and Air Induction >> Fuel Temperature Sensor >> Testing and Inspection

Fuel Temperature Sensor: Testing and Inspection

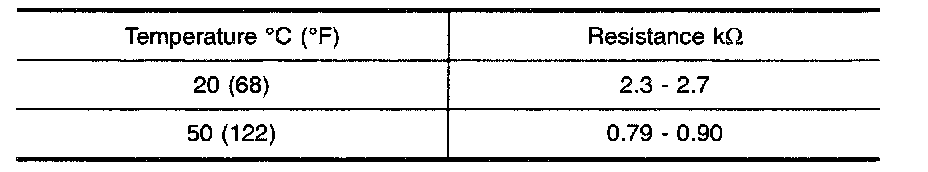

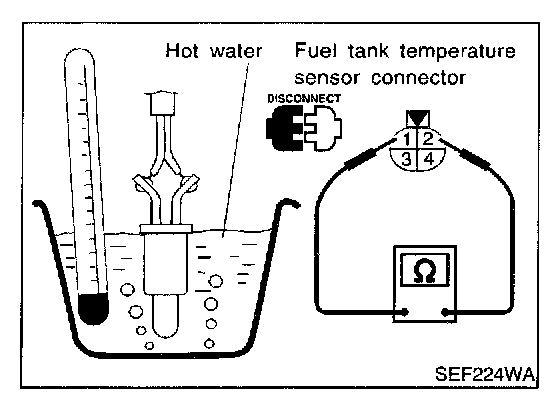

Check resistance by heating with hot water or heat gun as shown in the image.
If NG, replace fuel tank temperature sensor.
