Fuel Gauge Sender: Service and Repair

Removal

1. Release fuel pressure. Refer to "Fuel Pressure Release".
2. Remove rear seat back and bottom. Refer to "Removal and Installation".
3. Remove inspection hole cover located under the rear seat.

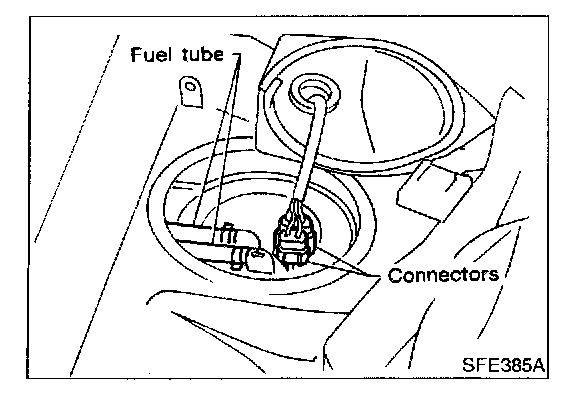

4. Disconnect fuel tubes and electrical connectors.
5. Remove the six screws.

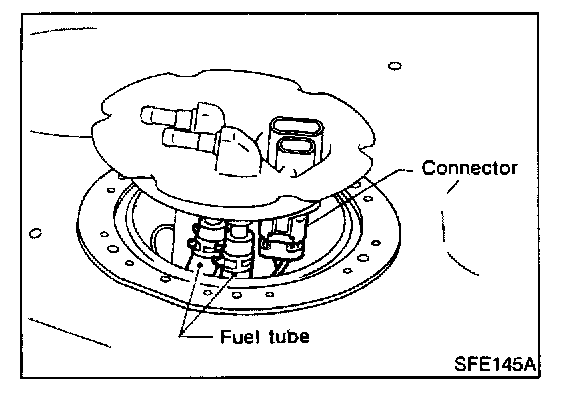

6. Disconnect fuel tubes and connector, then remove fuel level sensor unit.




7. Remove fuel pump with chamber.
a. Pull up the front of the chamber.
b. Slide chamber forward.

8. Remove fuel pump from chamber.

Installation
To install, reverse the removal procedure.

CAUTION:
- Tighten bolts to specified torque.

Tightening Torque: 2.0 - 2.5 Nm (0.20-0.26 kg.m, 17.4 - 22.6 in.lb)

- Always replace O-ring with a new one.
- After installation, run engine and check for leaks at connections.
