Distributor Cap: Testing and Inspection
RESISTOR1. Disconnect resistor harness connector.

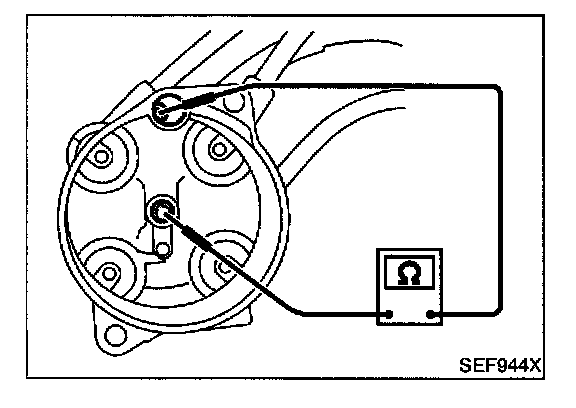

2. Check resistance as shown in the figure.
Resistance: 4 - 8 kOhms [at 25 °C (77 °F)]
If NG, replace distributor cap.
1. Disconnect resistor harness connector.
2. Check resistance as shown in the figure.
Resistance: 4 - 8 kOhms [at 25 °C (77 °F)]
If NG, replace distributor cap.
