Procedure 11

11. A/T Does Not Shift: D3 -> D4
SYMPTOM:
- A/T does not shift from D3 to D4 at the specified speed.
- A/T must be warm before D3 to D4 shift will occur.

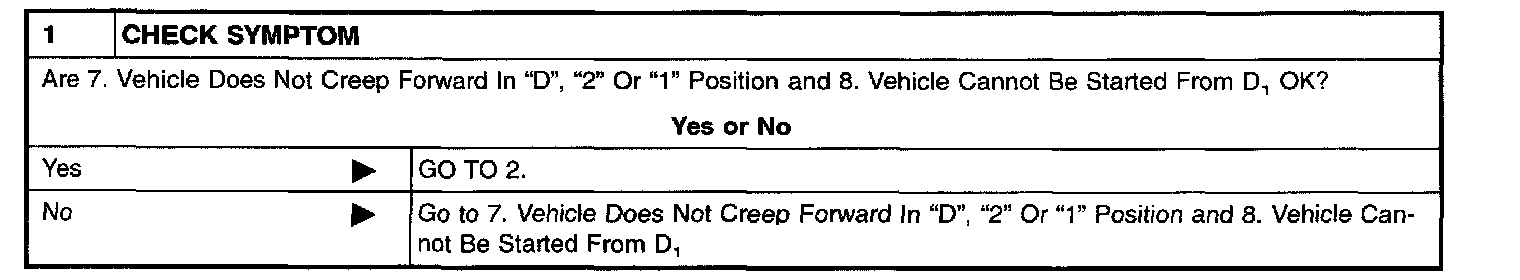

Part 1 of 7

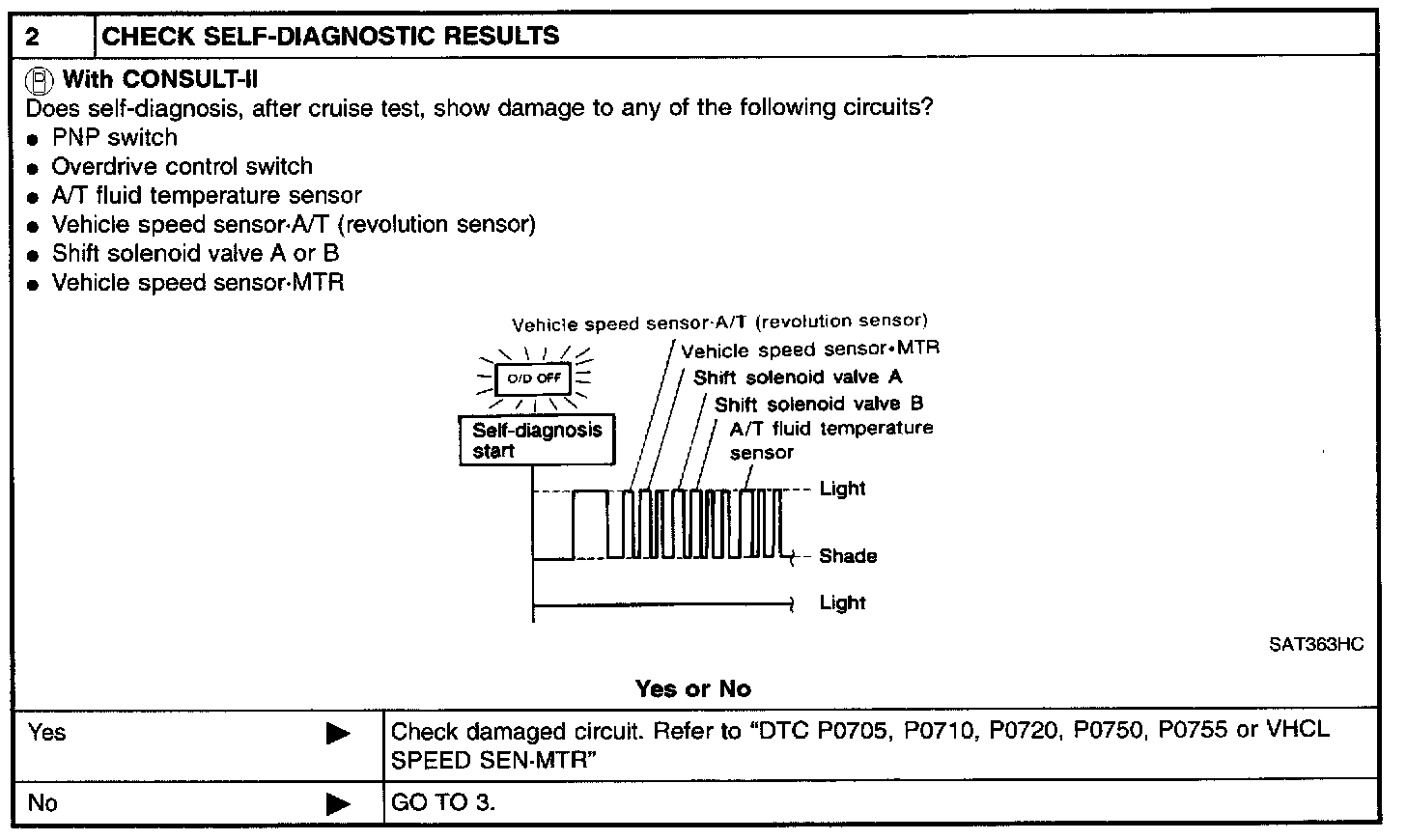

Part 2 of 7

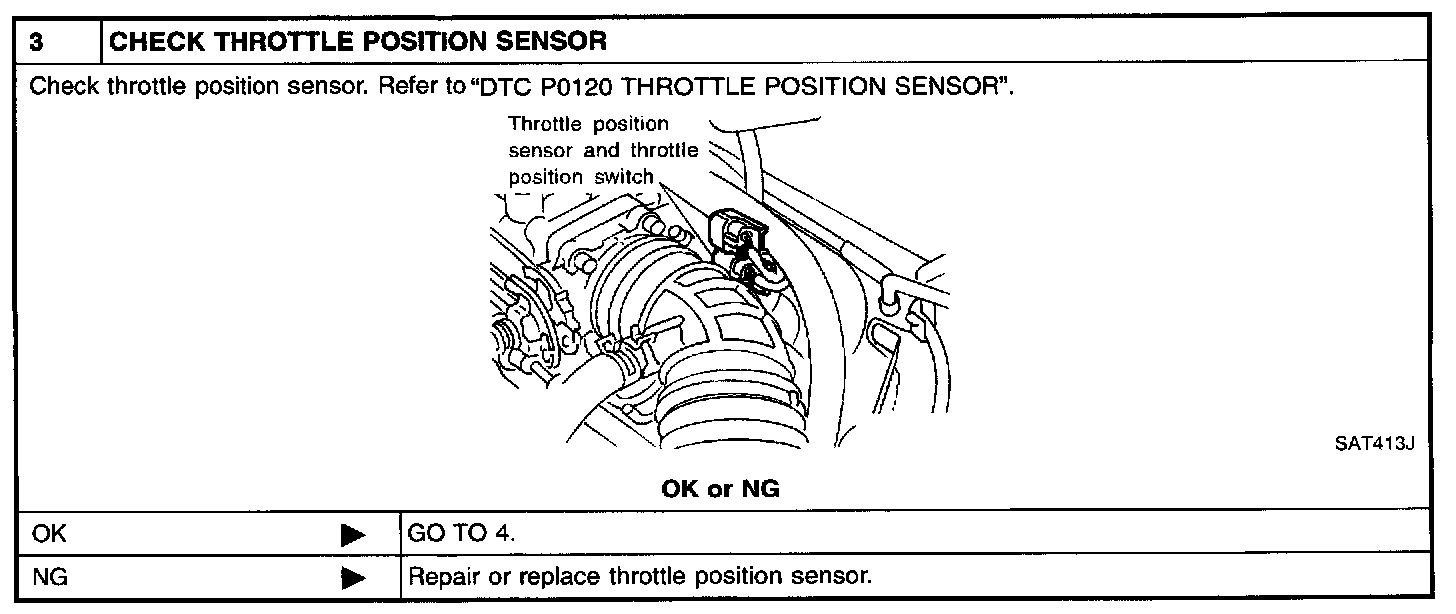

Part 3 of 7

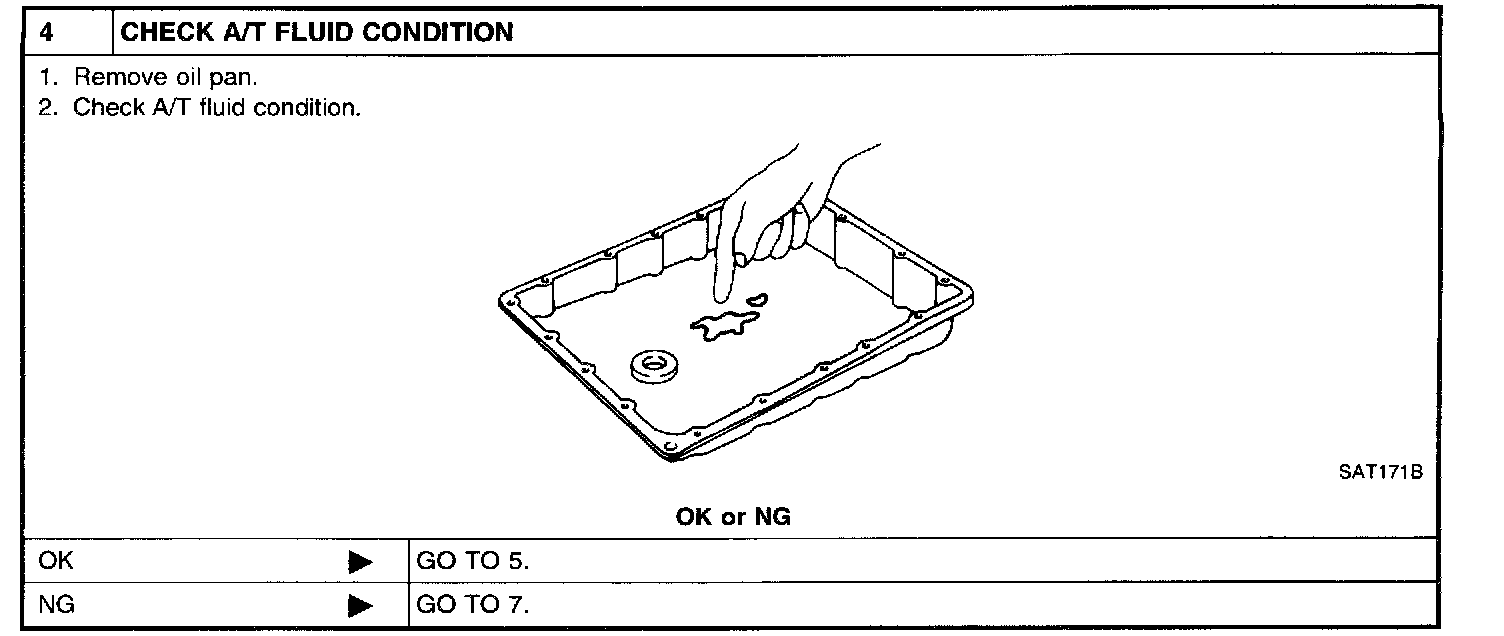

Part 4 of 7

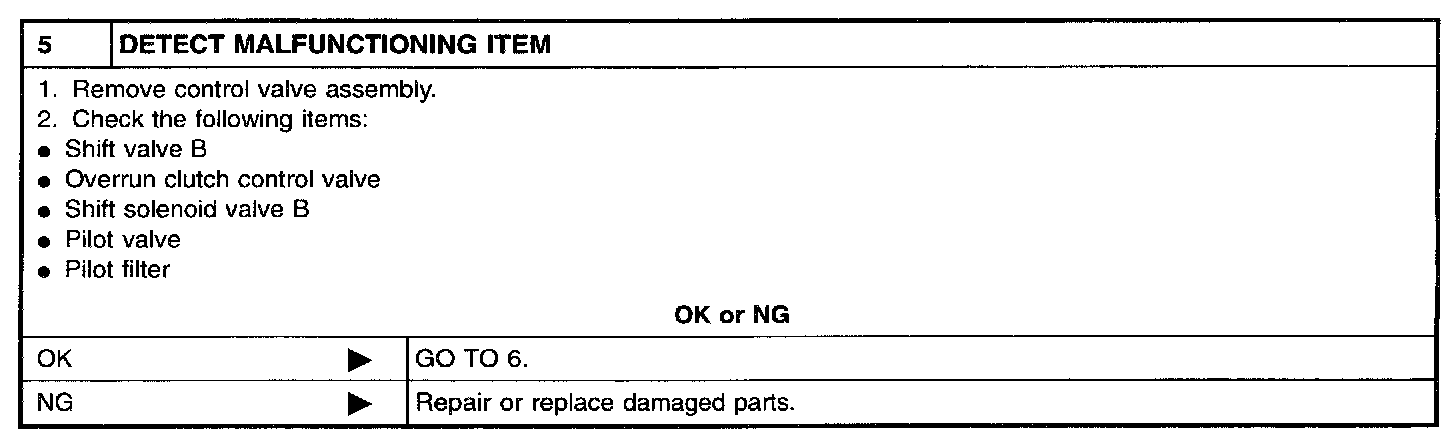

Part 5 of 7

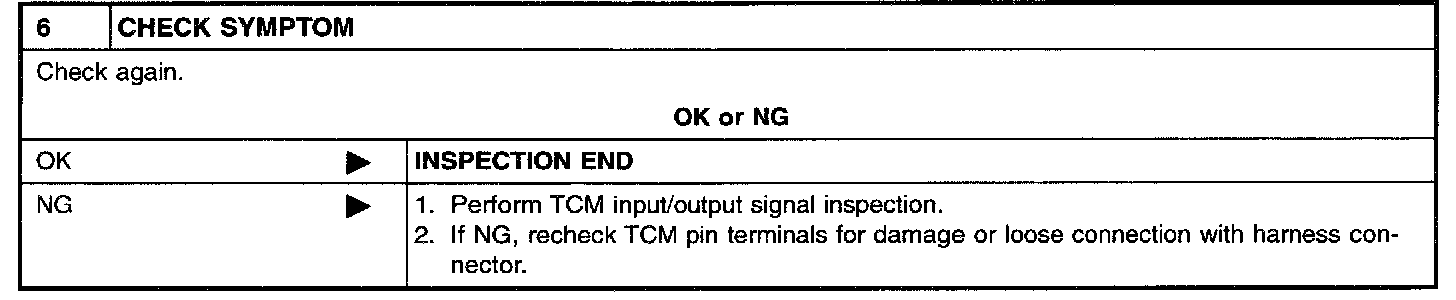

Part 6 of 7

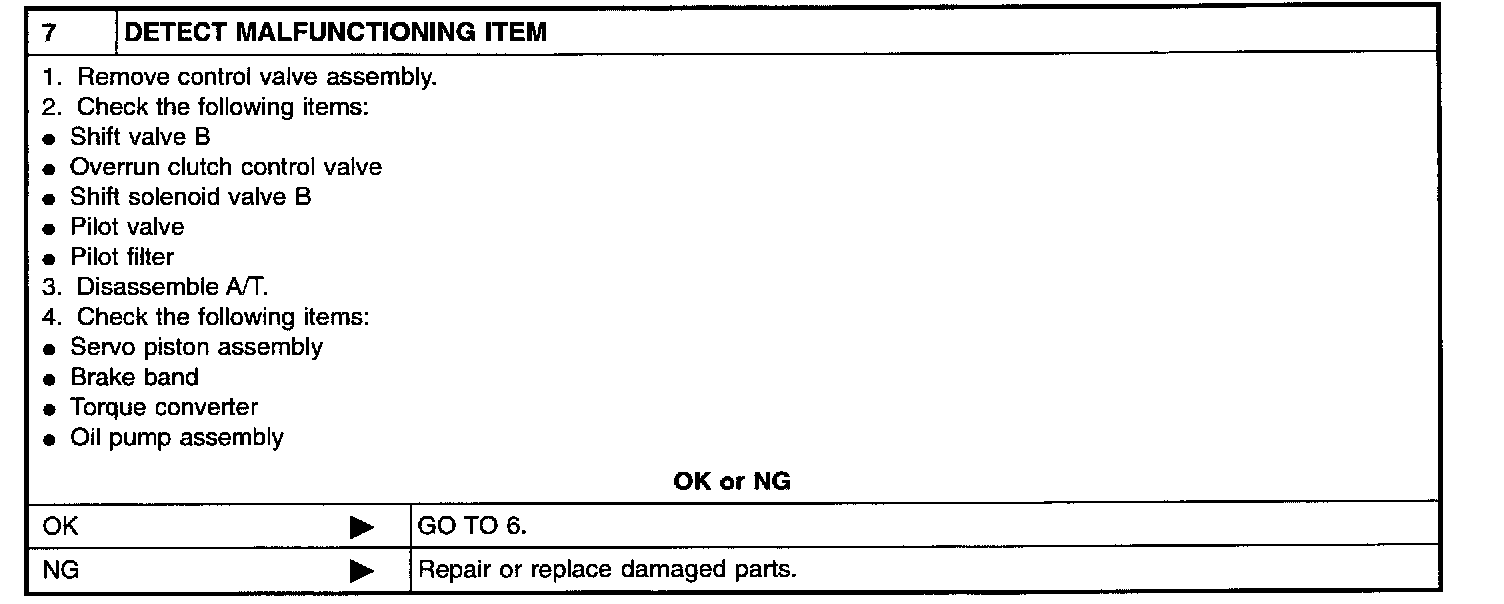

Part 7 of 7
