Pinout Values and Diagnostic Parameters

PREPARATION

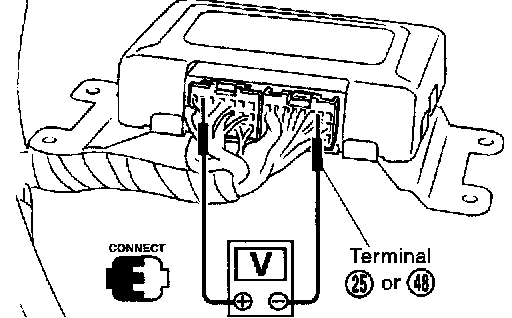

- Measure voltage between each terminal and terminal 25 or 48 by following "TCM INSPECTION TABLE".

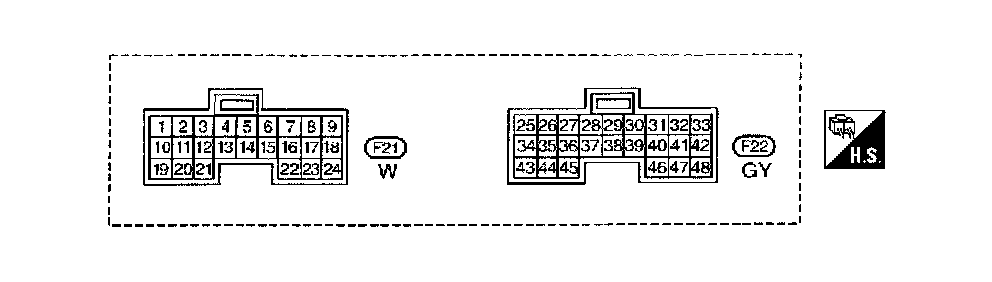

TCM HARNESS CONNECTOR TERMINAL LAYOUT

TCM INSPECTION TABLE (Data are reference values.)

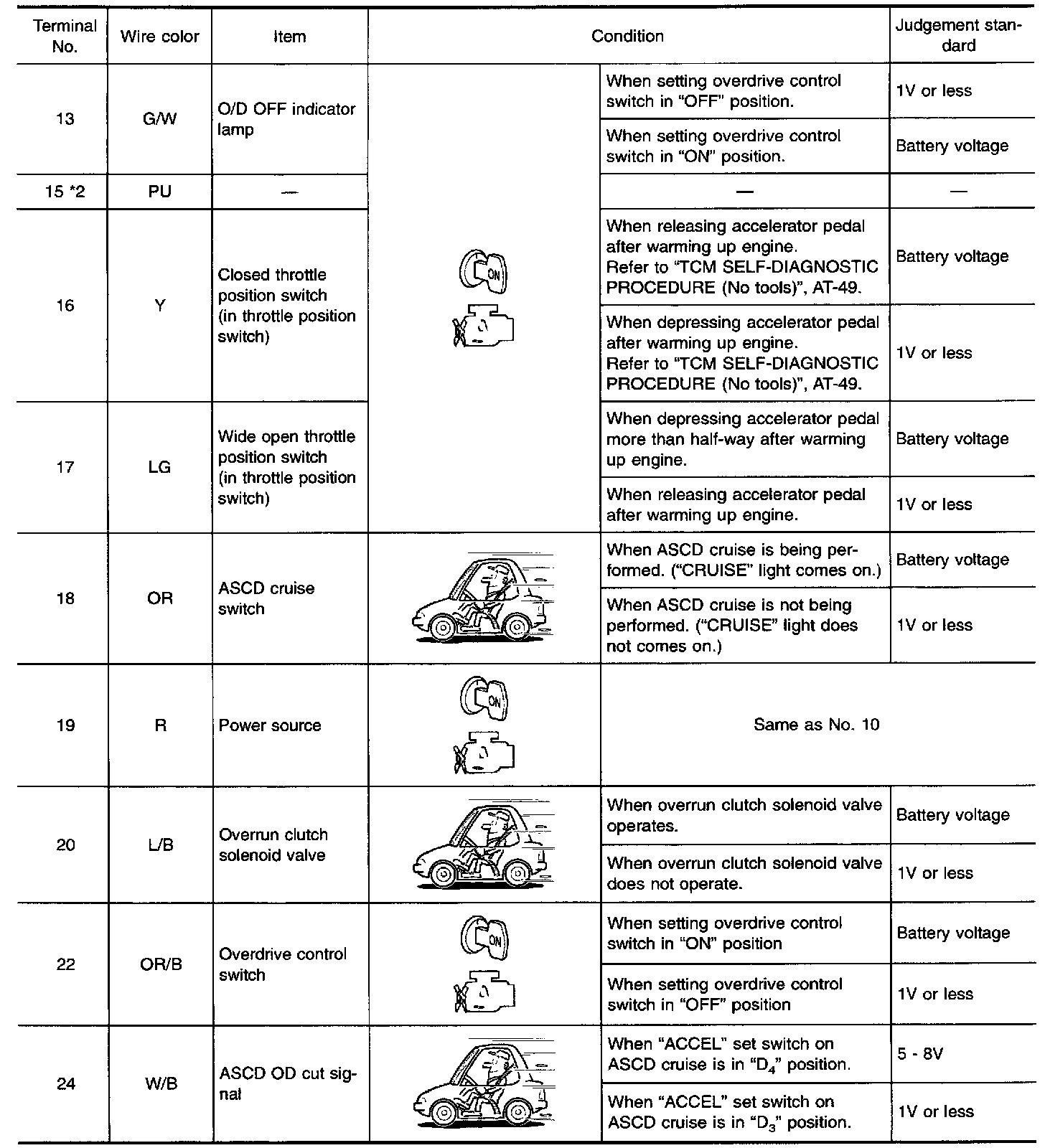

Part 1 of 4

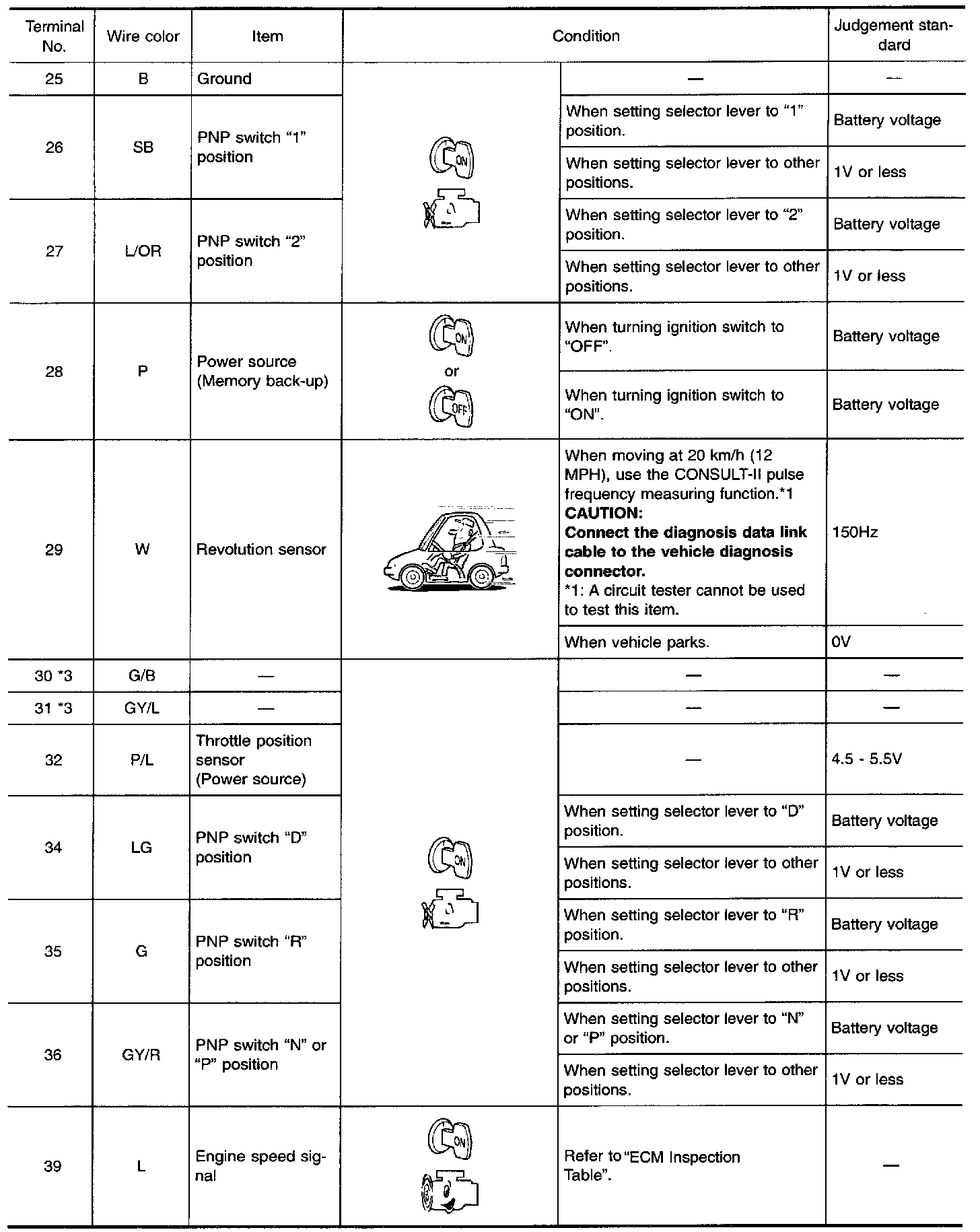

Part 2 of 4





Part 3 of 4

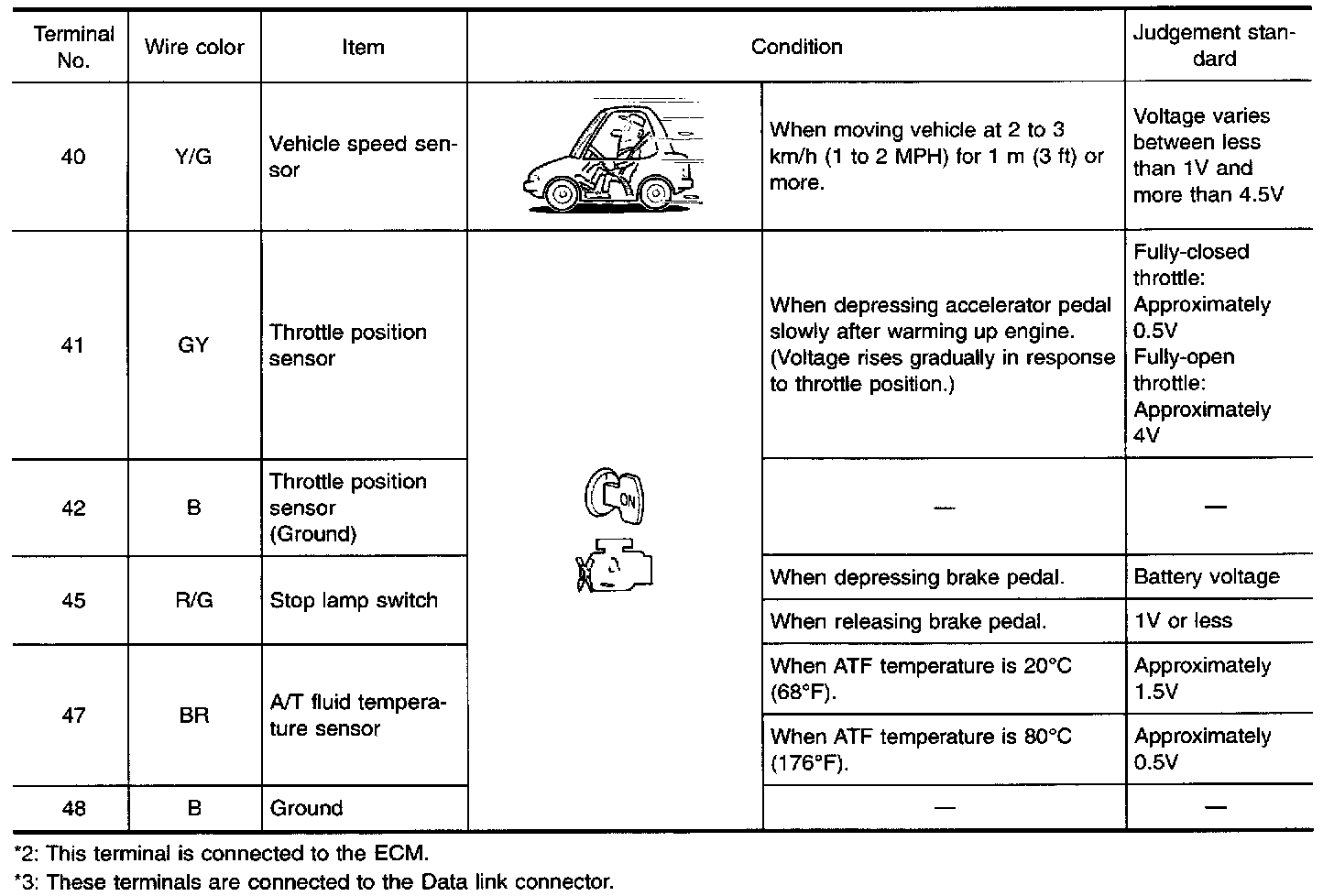

Part 4 of 4

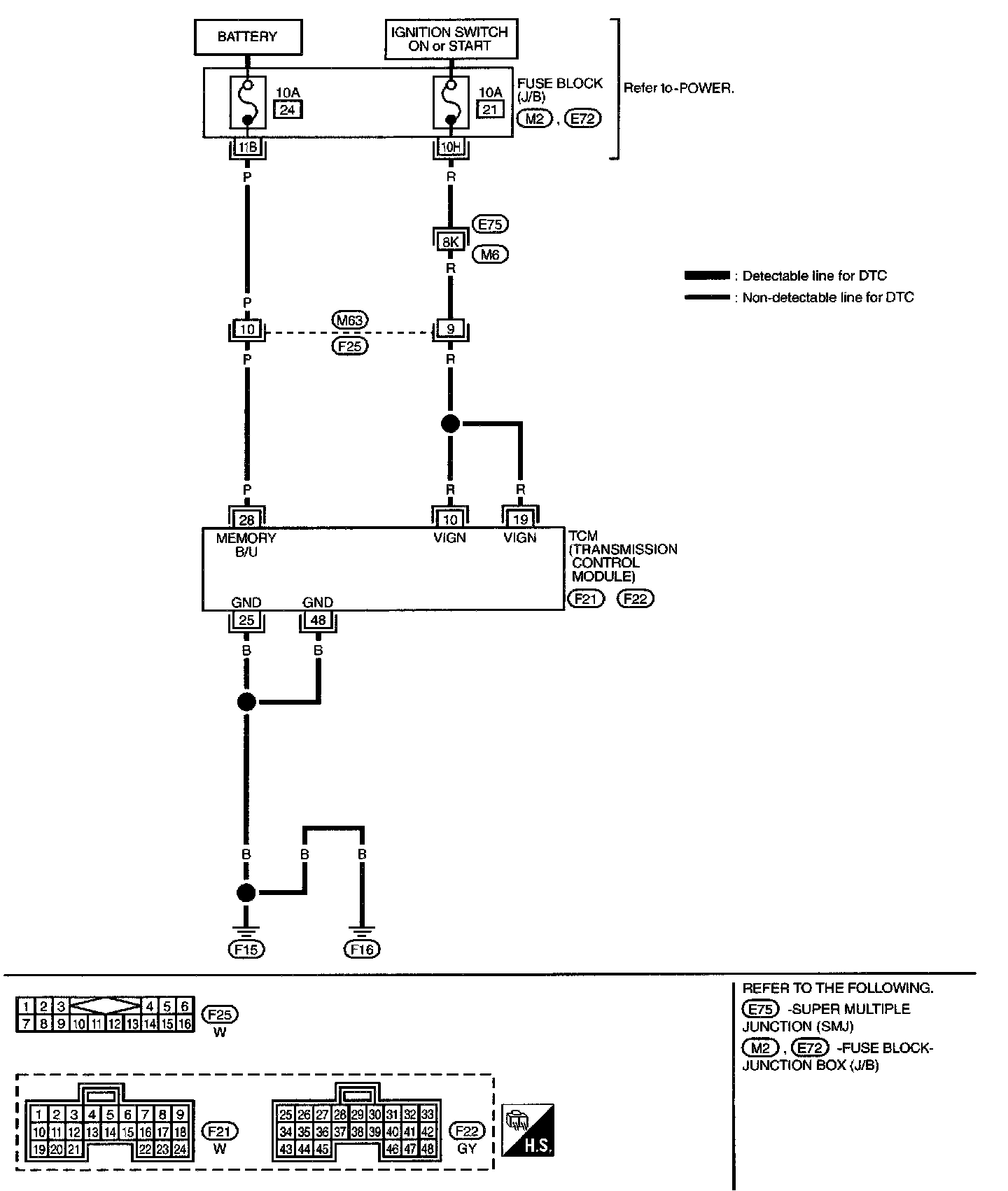

Wiring Diagram - AT - MAIN

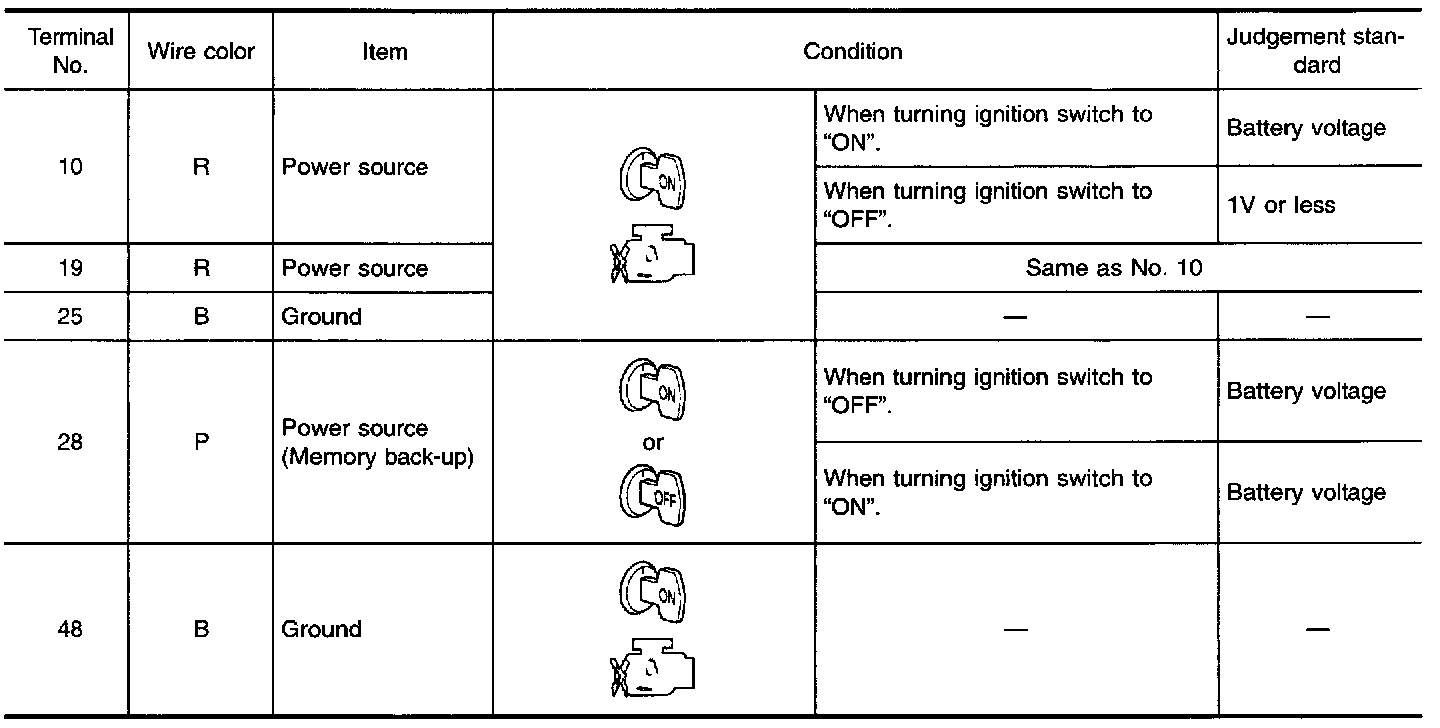

TCM TERMINALS AND REFERENCE VALUE
