Ignition Control Module: Testing and Inspection

POWER TRANSISTOR

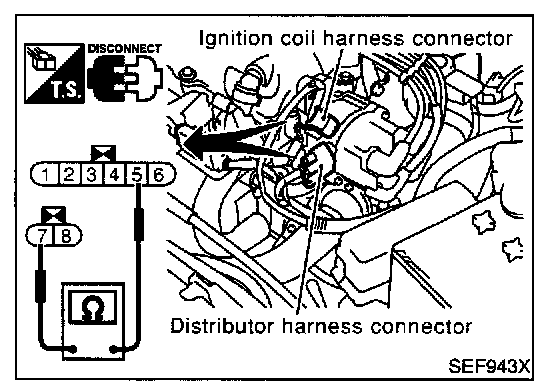

1. Disconnect distributor harness connector.

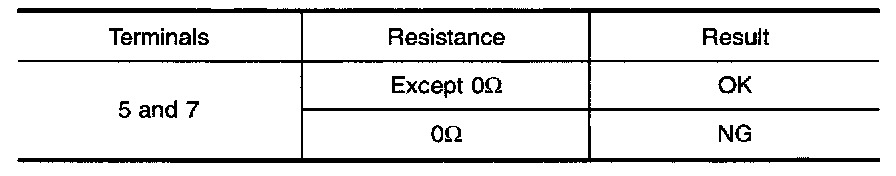

2. Check power transistor resistance between terminals 5 and 7.
If NG, replace distributor.
