Diagnostic Test Modes

Part 1 Of 2:

Part 2 Of 2:

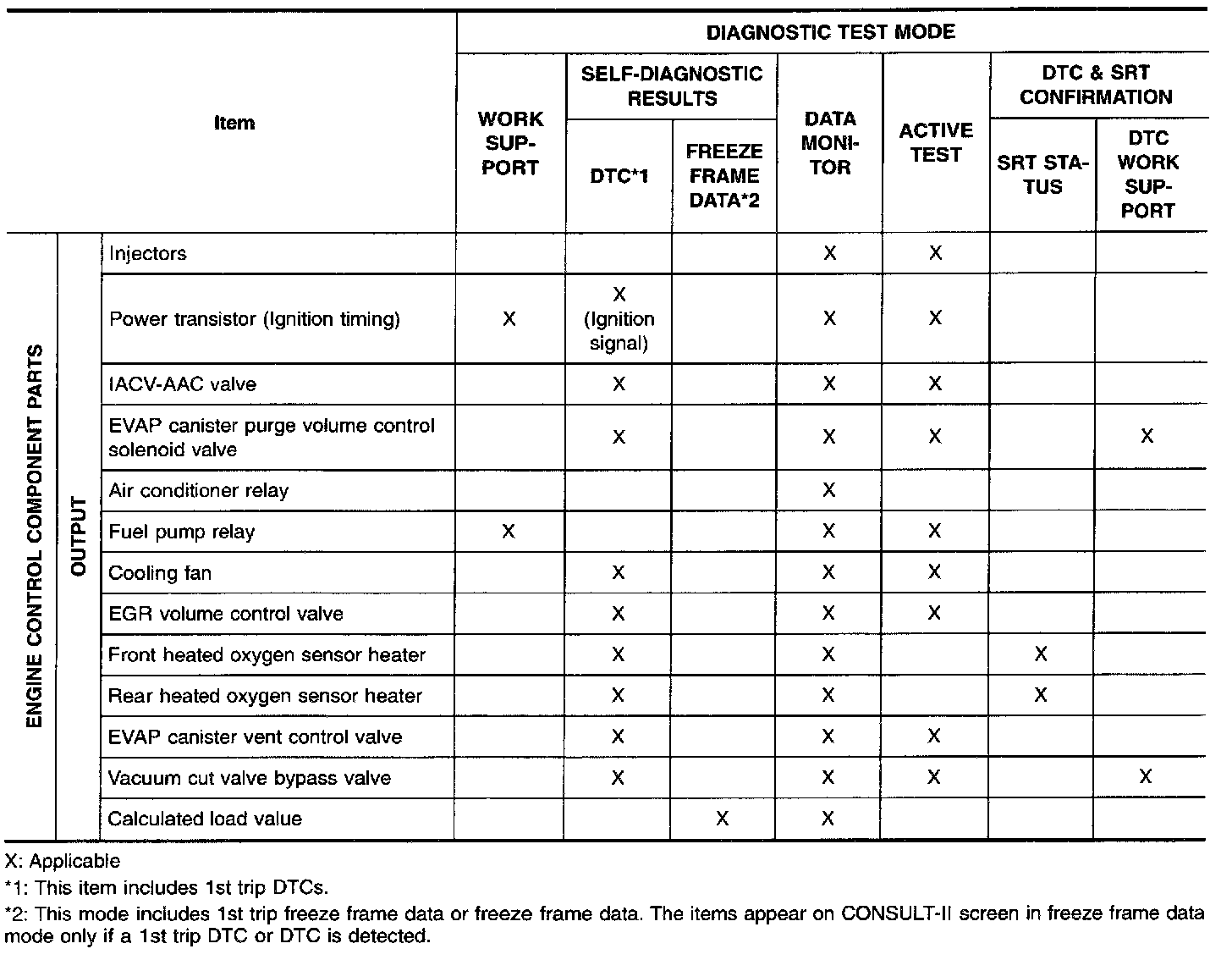

ENGINE CONTROL COMPONENT PARTS/CONTROL SYSTEMS APPLICATION
X: Applicable
*1: This item includes 1st trip DTCs.
*2: This mode includes 1st trip freeze frame data or freeze frame data. The items appear on CONSULT-II screen in freeze frame data mode only if a 1st trip DTC or DTC is detected.

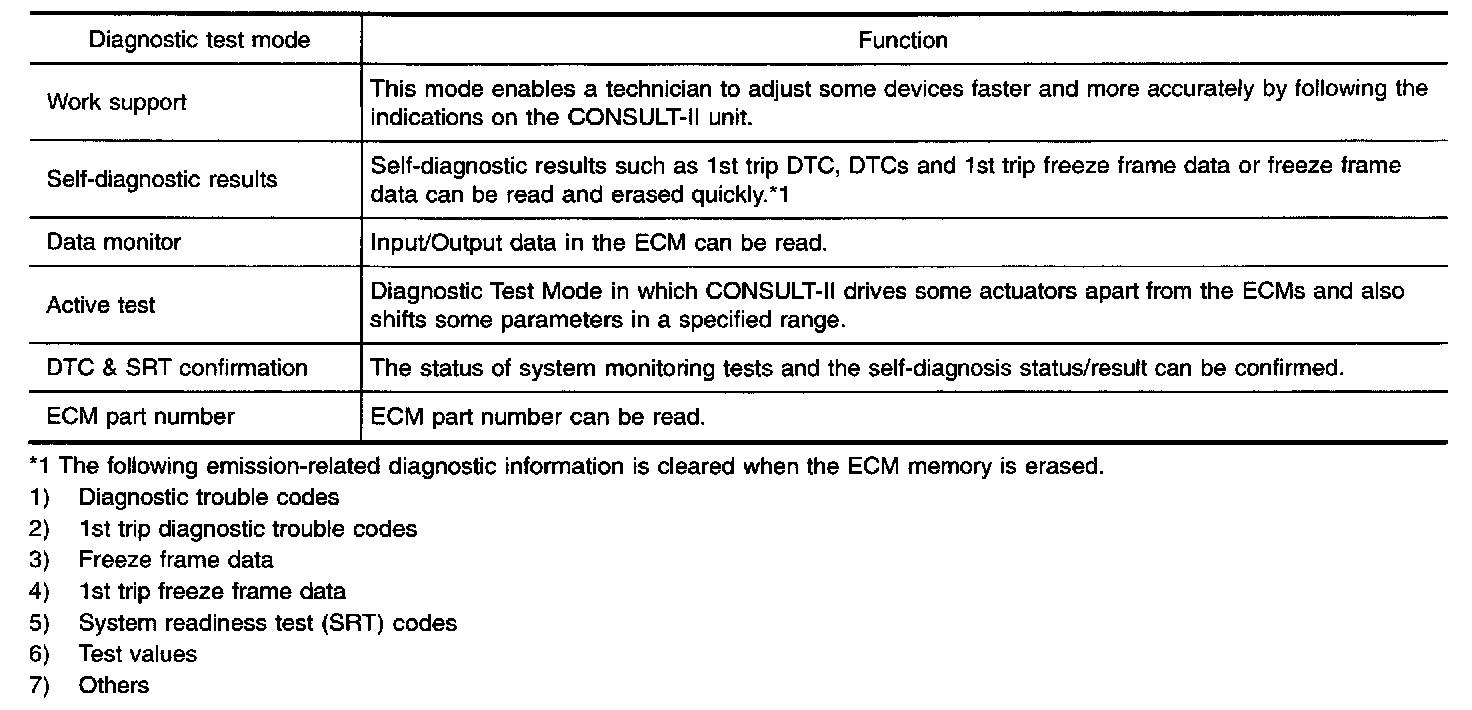

FUNCTION
1. Diagnostic trouble codes
2. 1st trip diagnostic trouble codes
3. Freeze frame data
4. 1st trip freeze frame data
5. System readiness test (SRT) codes
6. Test values
7. Others

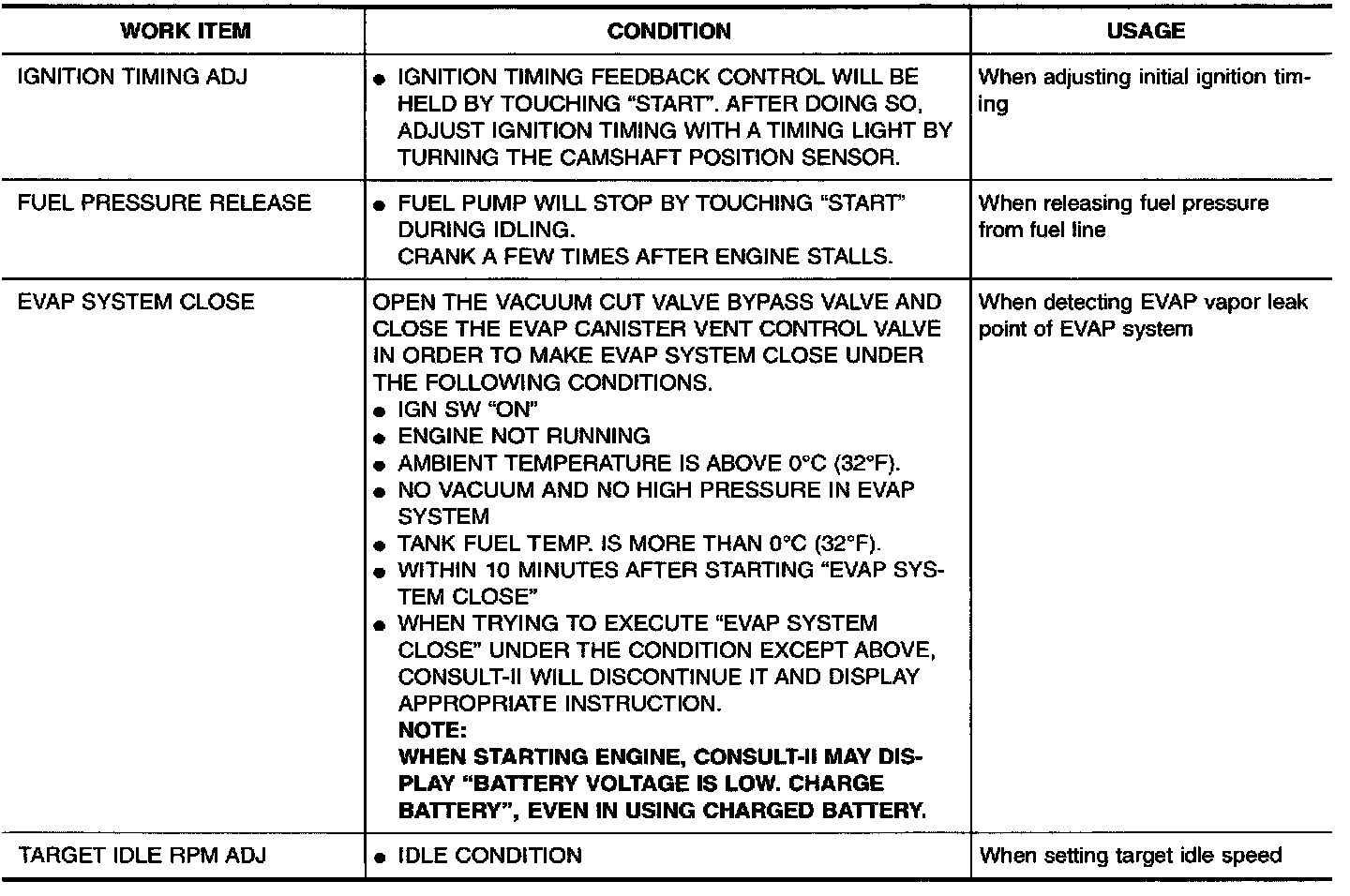

WORK SUPPORT MODE

SELF-DIAGNOSTIC MODE

DTC and 1st Trip DTC
Regarding items of "DTC and 1st trip DTC", refer to "TROUBLE DIAGNOSIS - INDEX". Diagnostic Trouble Code Descriptions

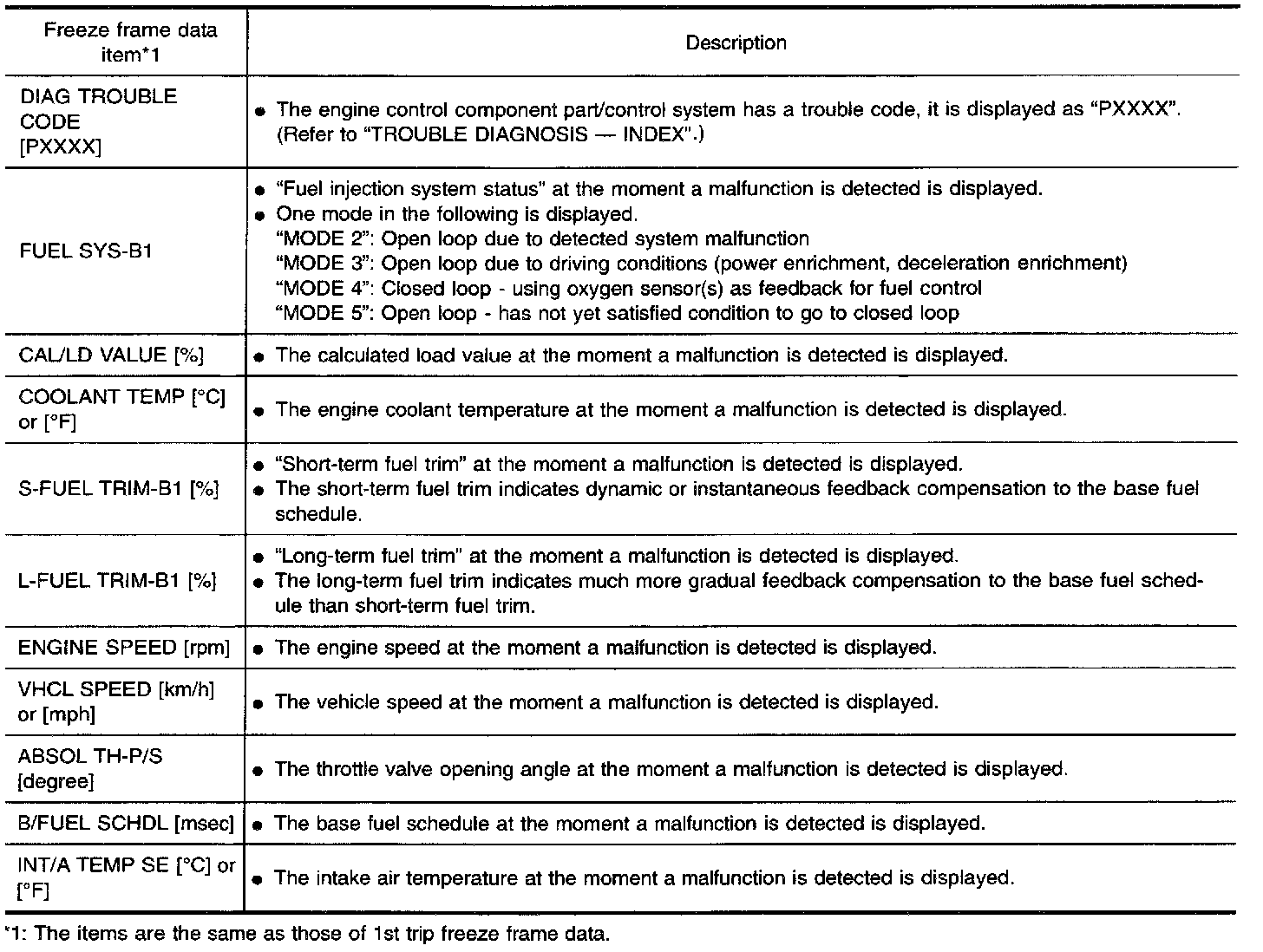

Freeze Frame Data and 1st Trip Freeze Frame Data

Part 1 Of 4:

Part 2 Of 4:

Part 3 Of 4:

Part 4 Of 4:

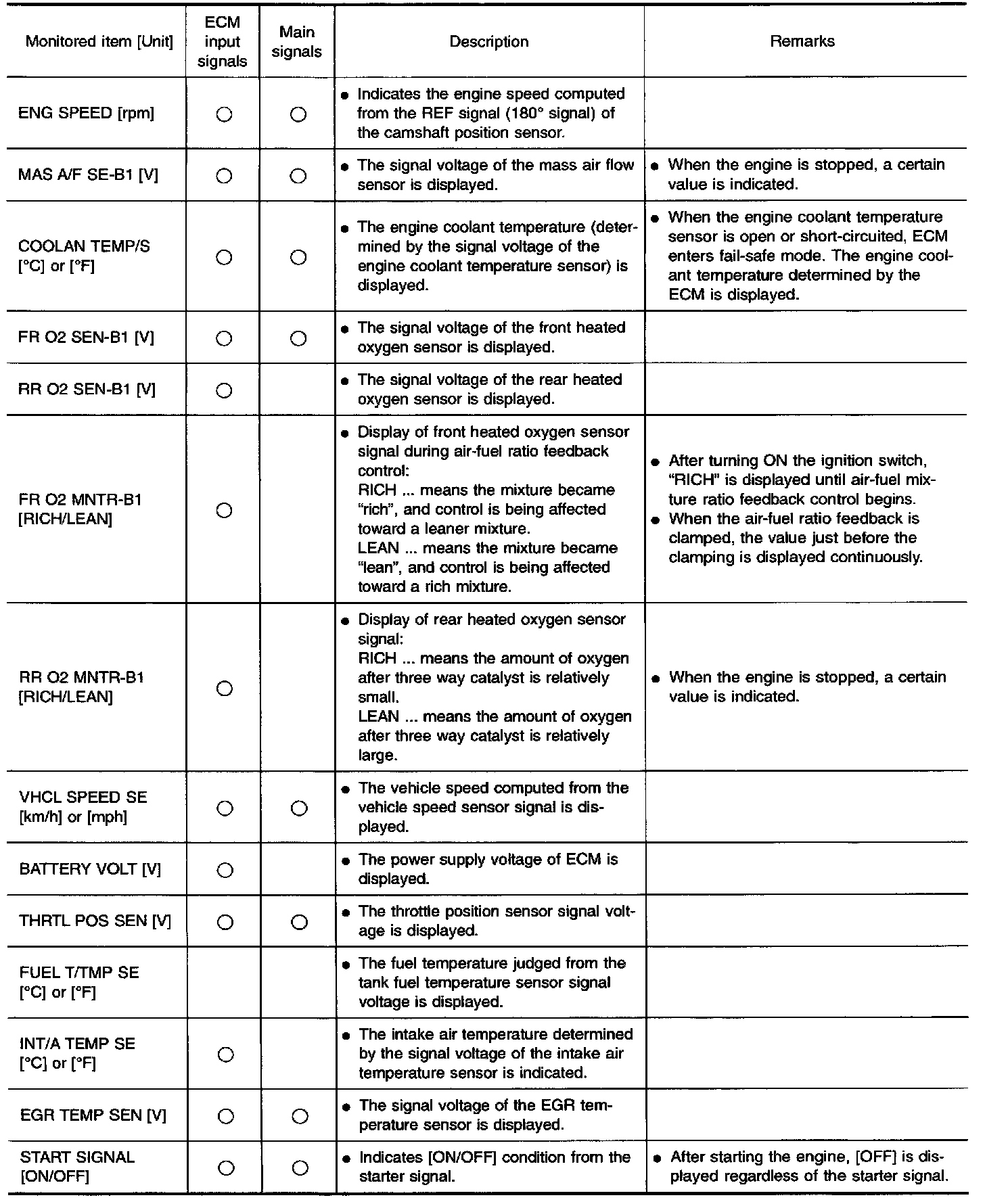

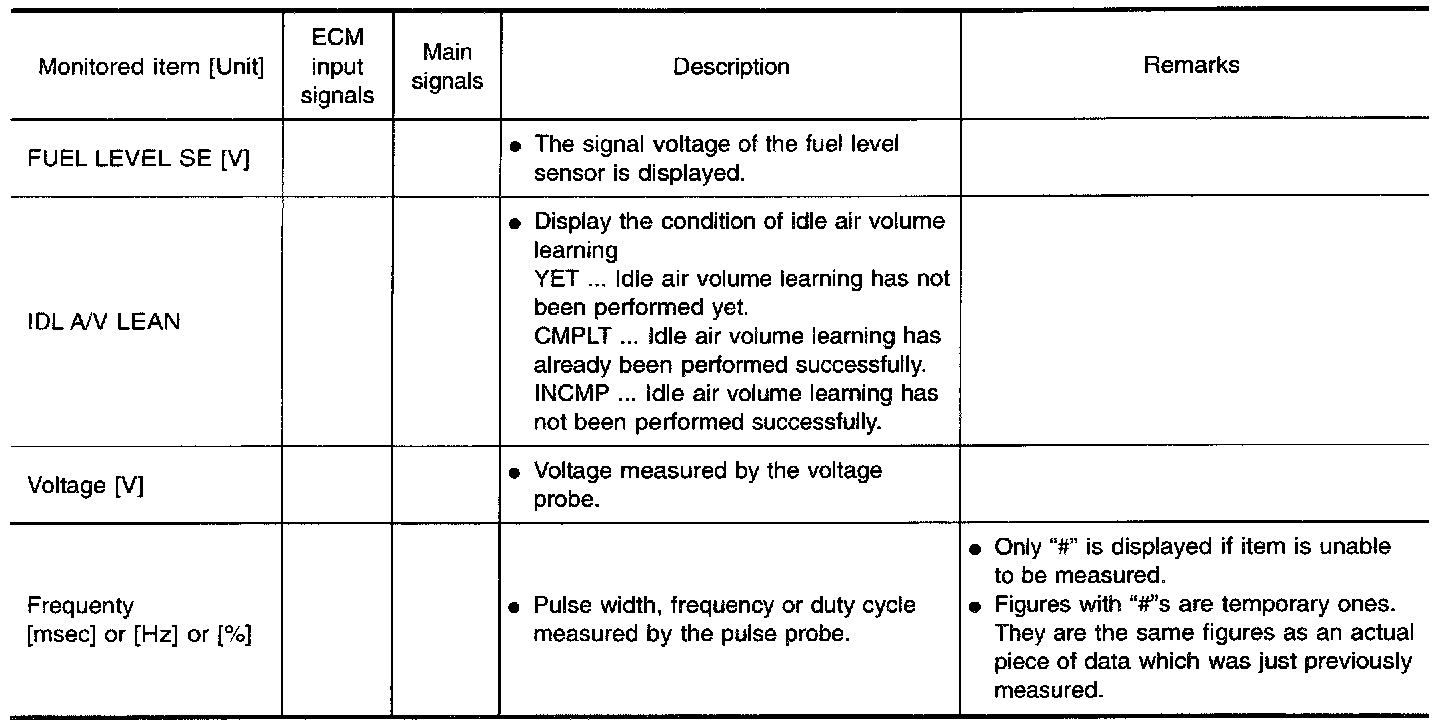

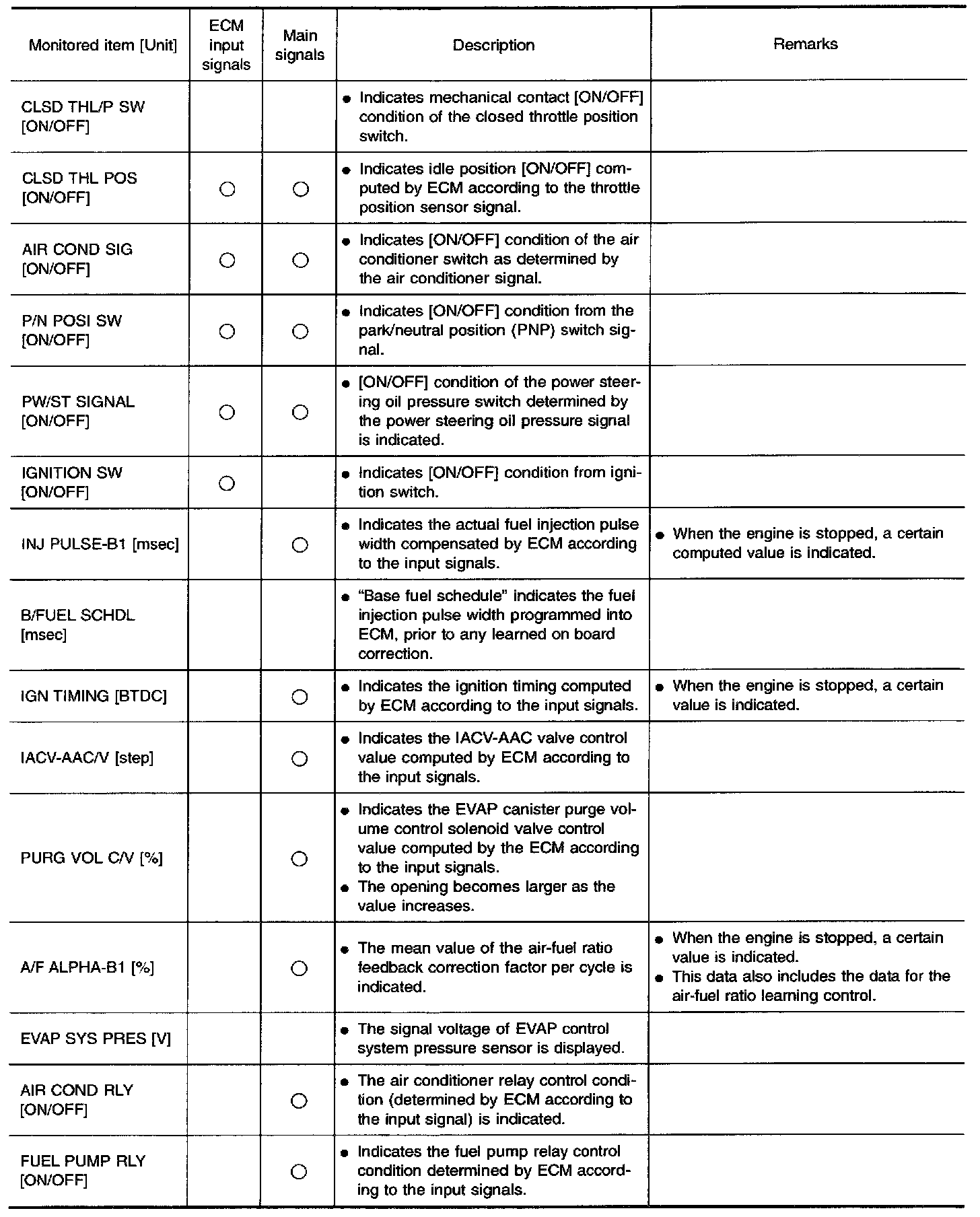

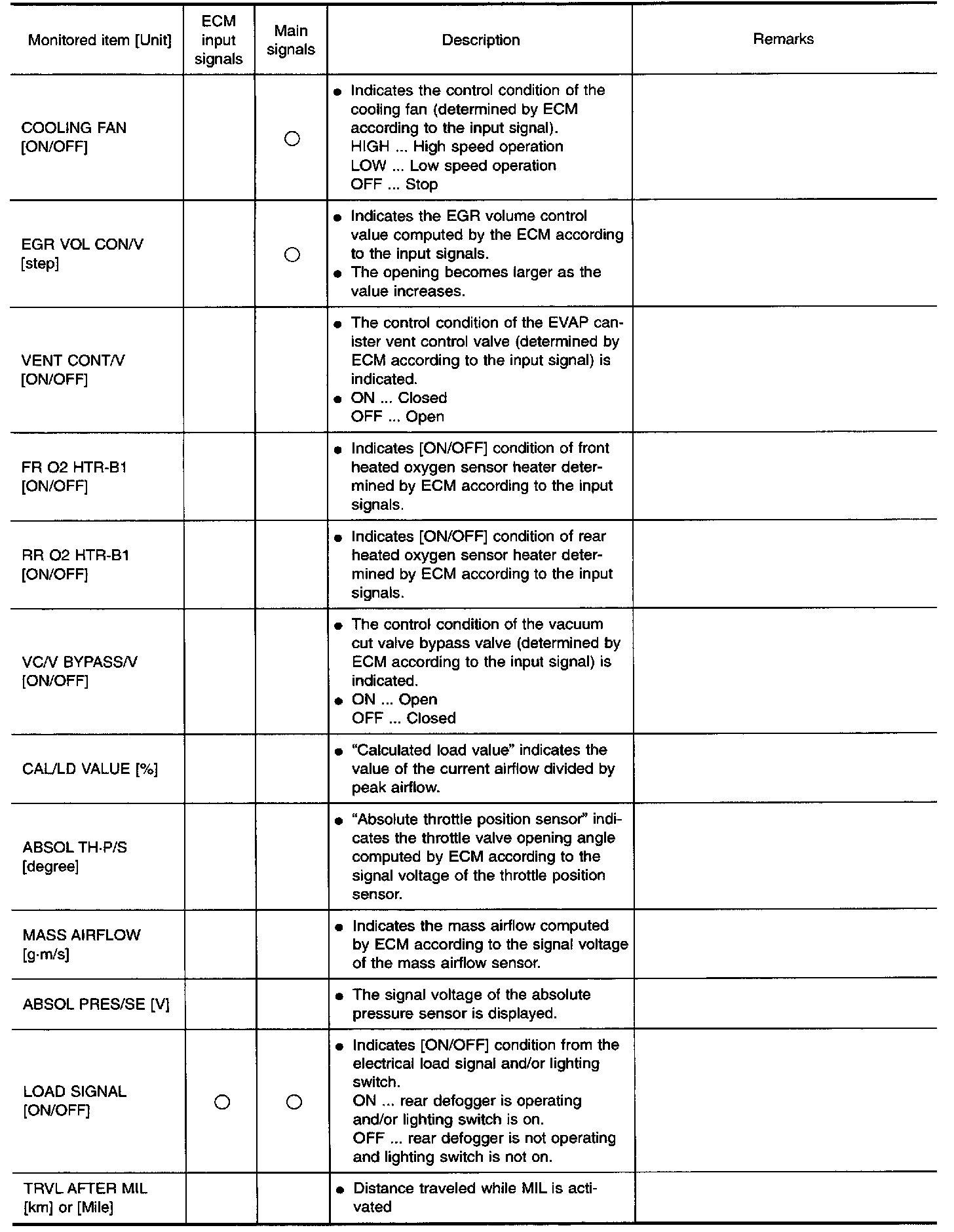

DATA MONITOR MODE

NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically

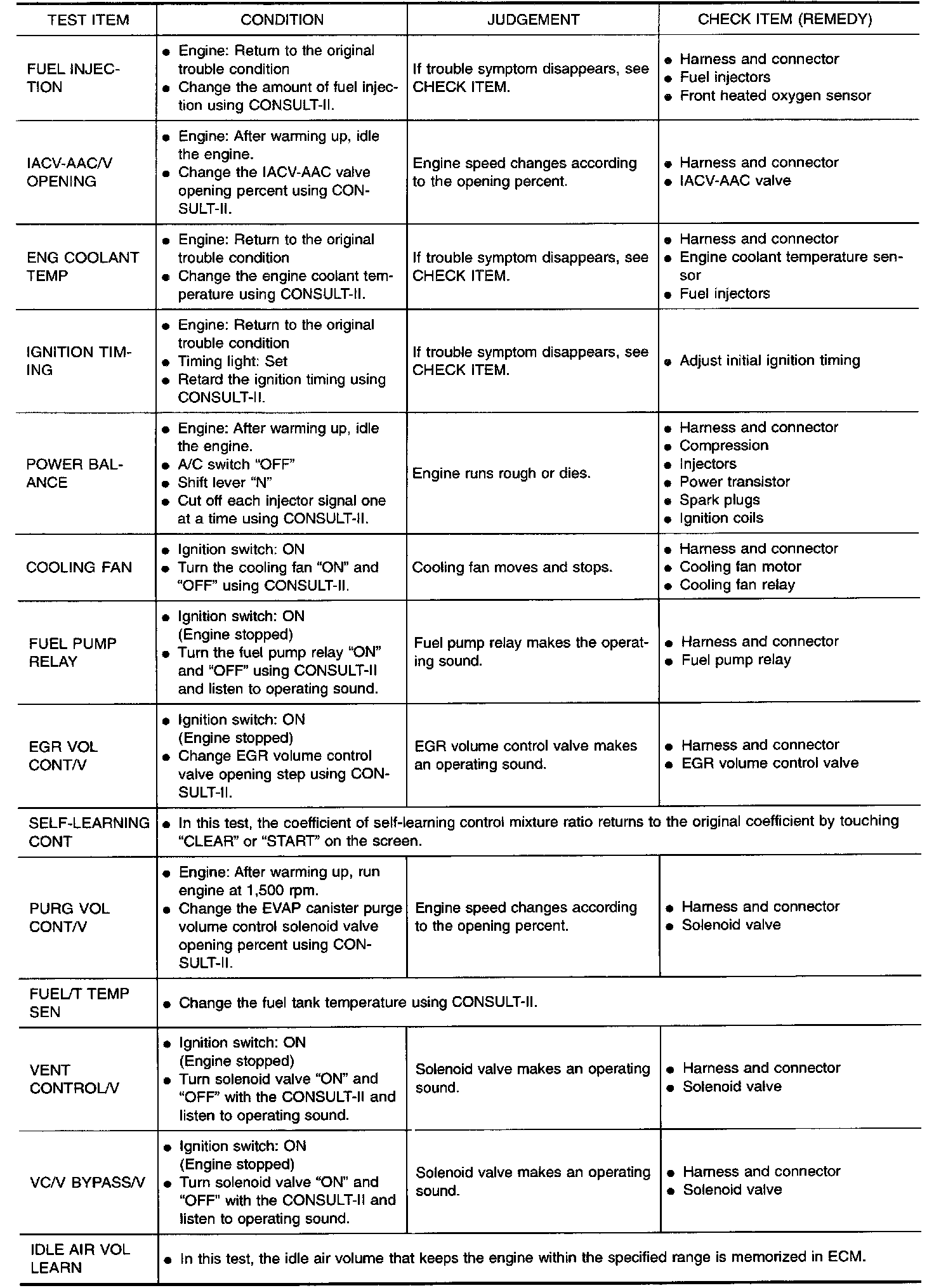

ACTIVE TEST MODE

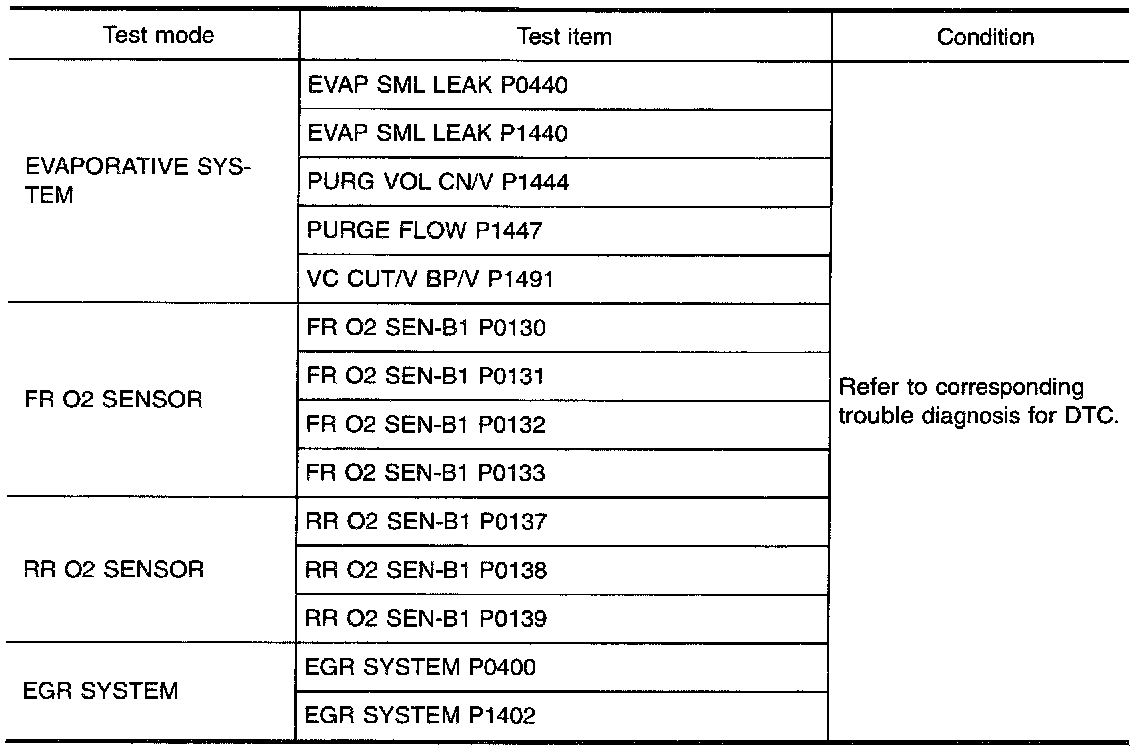

DTC & SRT CONFIRMATION MODE

SRT STATUS Mode
For details, refer to "SYSTEM READINESS TEST (SRT) CODE".

SRT Work Support Mode
This mode enables a technician to drive a vehicle to set the SRT while monitoring the SRT status.




DTC Work Support Mode

REAL TIME DIAGNOSIS IN DATA MONITOR MODE (RECORDING VEHICLE DATA)

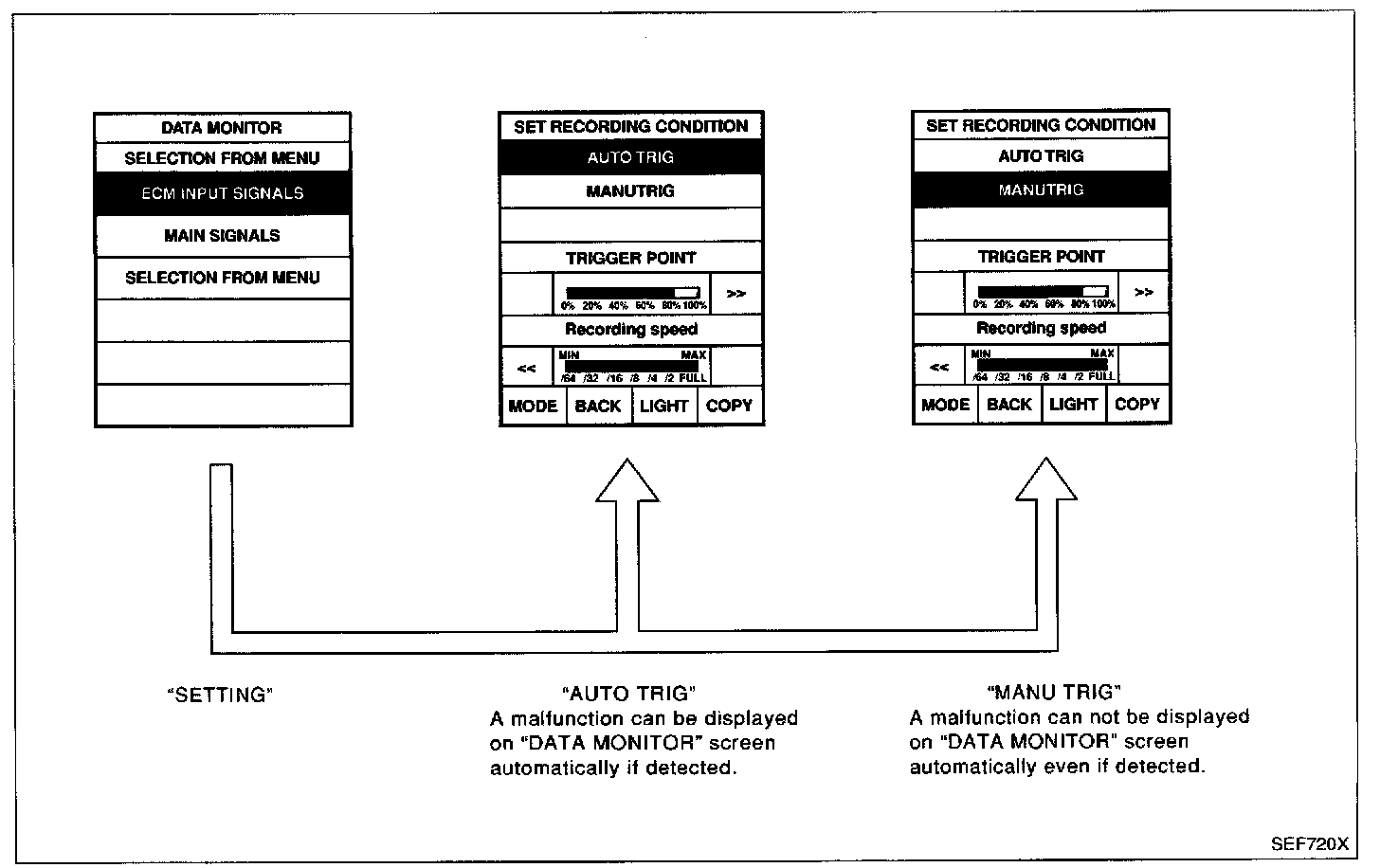

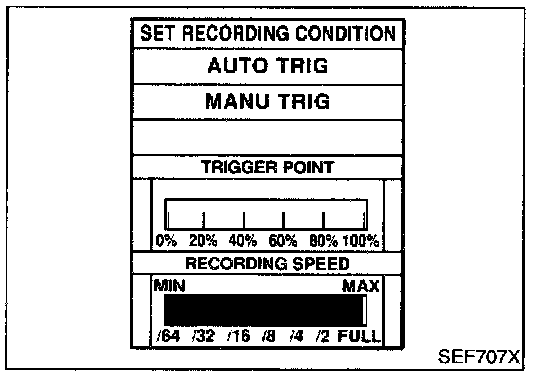

CONSULT-II has two kinds of triggers and they can be selected by touching "SETTING" in "DATA MONITOR" mode.

1. "AUTO TRIG" (Automatic trigger):
- The malfunction will be identified on the CONSULT-II screen in real time.
In other words, DTCI1st trip DTC and malfunction item will be displayed if the malfunction is detected by ECM.

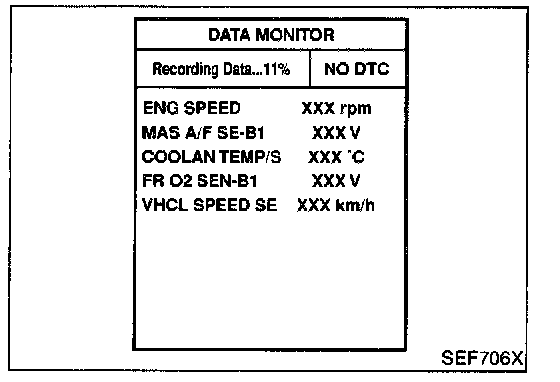

At the moment a malfunction is detected by ECM, "MONITOR" in "DATA MONITOR" screen is changed to "Recording Data... xx%" as shown at left, and the data after the malfunction detection is recorded. Then when the percentage reached 100%, "REAL-TIME DIAG" screen is displayed. If "STOP" is touched on the screen during " Recording Data ... xx%", "REAL-TIME DIAG" screen is also displayed.
The recording time after the malfunction detection and the recording speed can be changed by "TRIGGER POINT" and "Recording Speed". Refer to CONSULT-II OPERATION MANUAL.

2. "MANU TRIG" (Manual trigger):
- DTC/1st trip DTC and malfunction item will not be displayed automatically on CONSULT-II screen even though a malfunction is detected by ECM.
DATA MONITOR can be performed continuously even though a malfunction is detected.

Use these triggers as follows:

1. "AUTO TRIG"
- While trying to detect the DTC/1st trip DTC by performing the "DTC Confirmation Procedure", be sure to select to "DATA MONITOR (AUTO TRIG)" mode. You can confirm the malfunction at the moment it is detected.
- While narrowing down the possible causes, CONSULT-II should be set in "DATA MONITOR (AUTO TRIG)" mode, especially in case the incident is intermittent.
When you are inspecting the circuit by gently shaking (or twisting) the suspicious connectors, components and harness in I the "DTC Confirmation Procedure", the moment a malfunction is found the DTC/1st trip DTC will be displayed. (Refer"Incident Simulation Tests".)




2. "MANU TRIG"
- If the malfunction is displayed as soon as "DATA MONITOR" is selected, reset CONSULT-II to "MANU TRIG". By selecting "MANU TRIG" you can monitor and store the data. The data can be utilized for further diagnosis, such as a comparison with the value for the normal operating condition.
